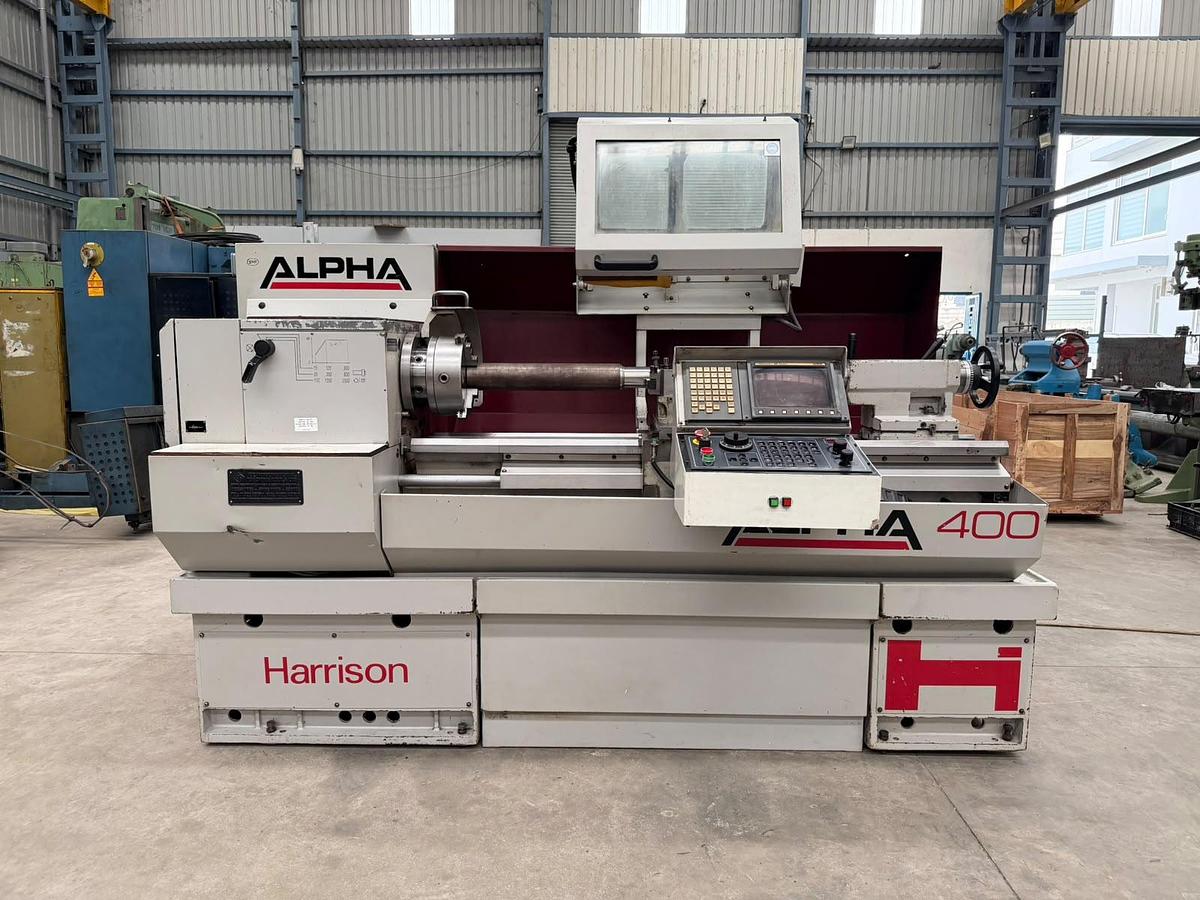

Harrison Alpha 400 x 1250 mm CNC Lathe Machine

CNC Lathe Machine made by Harrison (England), Model Alpha 400, available in excellent working condition. This is a Flat-Bed type CNC Lathe Machine with a maximum job length of 1250 mm and a maximum turning diameter of 245 mm over cross-slide. The machine is equipped with Fanuc 21T CNC Controller, making it suitable for precision Turning, Facing, and Threading applications. The machine is complete with spare jaws, tool holders, operating manuals, and additional accessories. The technical details are as follows:

Make - Harrison (England)

Model - Alpha 400

Center Height - 205 mm

Maximum Job Length - 1250 mm

Maximum Job Diameter over Cross-Slide - 245 mm

Maximum Job Diameter over Bed - 400 mm

Maximum Job Diameter in Gap-Bed - 585 mm

Bed Width - 318 mm

Spindle Speed Range - 15 to 2500 RPM

Spindle Bore - 54 mm

Chuck Diameter - 250 mm

CNC Controller - Fanuc 21T

Year of Make - 1996

- Complete with spare Tool Holders, spare Jaws, and other accessories.

- Operating Manual and machine documentation available.

- Suitable for Turning, Facing, and Threading operations.

- Machine is in excellent working condition.
