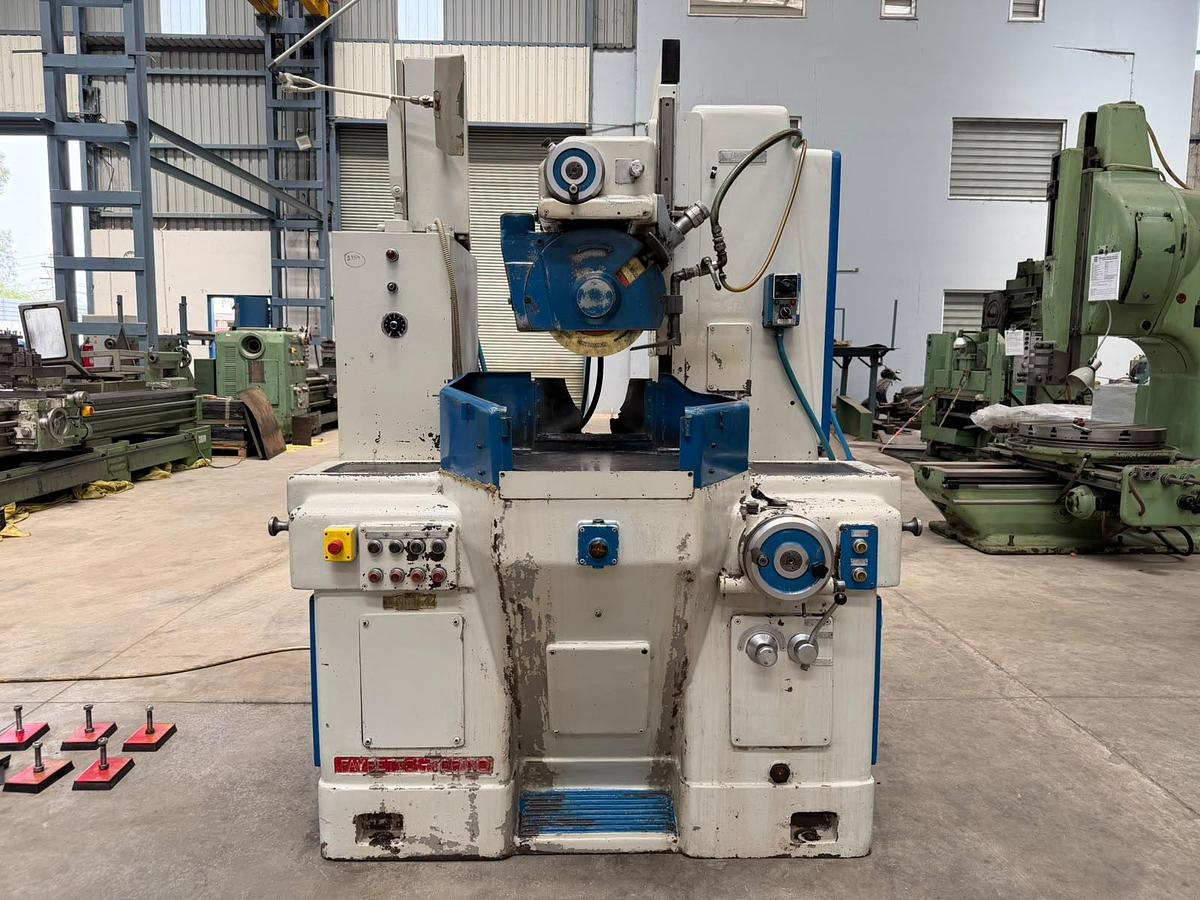

Favretto Italy RT-50 Horizontal Rotary Surface Grinder

High-precision Horizontal Spindle Rotary Surface Grinding Machine made by Favretto (Italy), Model RT-50, available in excellent working condition. The machine is equipped with a 500 mm Magnetic Rotary Table and can accommodate jobs up to 600 mm diameter. The Grinding Head can be inclined from +10 degree to -10 degree, making it suitable for taper grinding applications as well. It features Automatic Depth Adjustment (Auto-Cut) and Continuously Variable Table Rotation Speeds. It is complete with Wheel Dresser, Coolant Tank, and Coolant Pump. The technical specifications are as follows -

Make - Favretto (Italy)

Model - RT-50

Magnetic Table Diameter - 500 mm

Max. Job Diameter - 600 mm

Max. Grinding Wheel Size - Diameter 350 mm x 50 mm Width

Max. Height between Table Top & Wheel Center - 430 mm

Least Count - 5 Microns (0.005 mm)

Wheel Head Inclination - +10 degree to -10 degree

- Feature of Automatic Depth Adjustment "Auto-Cut".

- Continuously Variable Table Rotation Speeds (equipped with VFD).

- Complete with Wheel Dresser, Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
