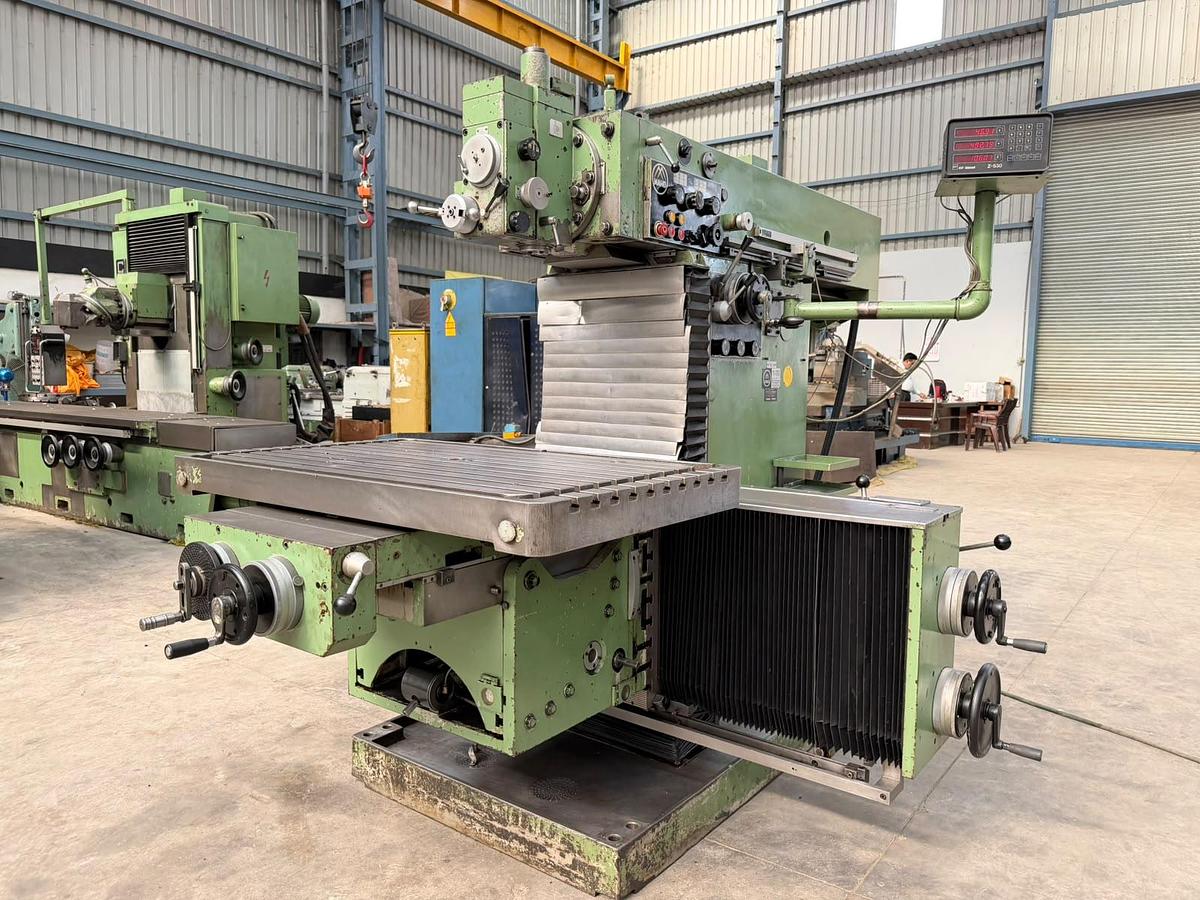

Maho Germany MH-1000 Heavy Duty Universal Toolroom Milling Machine

Heavy Duty Universal Toolroom & Diesinking Milling Machine made by Maho (Germany), Model MH-1000, available in excellent working condition. It is a highly versatile machine suitable for Horizontal Milling, Vertical Milling, Angular Milling, and Boring operations. The table of the machine can be rotated through 360 degrees and can be swivelled & inclined by 30 degrees. This makes it ideal for complex machining operations, allowing multiple component faces to be machined without intermediate resetting. The machine is suitable for toolrooms, die-mould shops, and precision maintenance work. The technical details are as follows -

Make - Maho (Germany)

Model - MH 1000

Table Size - 1250 mm x 740 mm

XYZ Travel - 1000 mm x 750 mm x 600 mm

Spindle Speeds - 32 rpm to 1600 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 10 mm/min to 500 mm/min

Vertical Spindle Travel - 125 mm

Cross Travel of Table - 275 mm (Manual)

Vertical Clamping Area - 600 mm x 570 mm

Table Rotating Range - 360 degrees

Table Swivel (Left / Right) - +30 degree to -30 degree

Table Inclination (Front / Rear) - +30 degree to -30 degree

- Equipped with a Universal Table for complex angular and multi-face machining.

- The Vertical Milling Head can be removed for Horizontal Milling operations.

- Table can be removed for direct clamping of jobs on the vertical surface.

- Suitable for precision toolroom, diesinking & other similar work.

- Machine is in excellent working condition.
