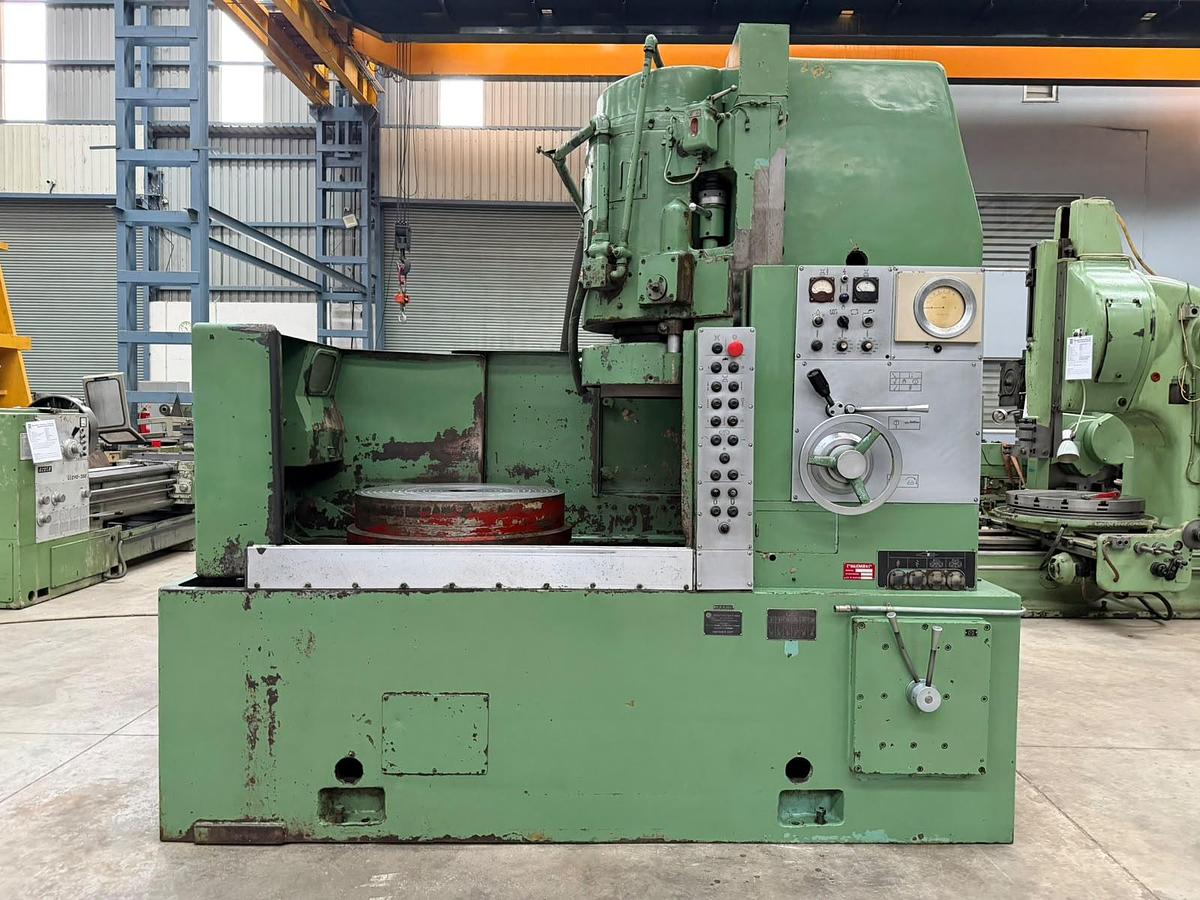

Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder

Heavy Duty Vertical Spindle Rotary Surface Grinding Machine made by Stanko (Russia), Model 3A756, available in excellent working condition. The machine has a Magnetic Table Diameter of 800 mm, a Maximum Swing Diameter of 1000 mm, and a Maximum Job Height of 360 mm. It comes with both types of wheel flanges - segmented cup wheel and standard cup wheel. It is complete with Operating Manual, Electrical Drawings, multiple spare Segmented Grinding Wheels, Magnetic Coolant Filtration Unit, Coolant Tank and Coolant Pump. The machine is suitable for heavy stock removal and precision grinding of large flat surfaces like die plates, mould bases, machine beds, and other similar jobs. The technical details are as follows -

Make - Stanko (Russia)

Model - 3A756

Magnetic Table Diameter - 800 mm

Max. Job Height - 360 mm

Max. Swing Diameter - 1000 mm

Segmented Cup Wheel Diameter - 510 mm

Standard Cup Wheel Diameter - 455 mm

Table Rotation Speeds - 5 rpm to 30 rpm

Number of Segments in Grinding Wheel - 10 pcs.

Grinding Wheel Spindle Motor - 30 kW

Table Forward / Backward Travel - 530 mm

Least Count - 5 Microns (0.005 mm)

Machine Weight - Approx. 10 Tons

- Motorised Rapid Vertical Travel of Wheel-Head.

- Motorised Rapid Forward / Backward Movement of Table.

- Feature of Automatic Depth Adjustment "Auto-Cut".

- Equipped with Wheel Dressing Attachment.

- Both types of wheel flanges - segmented cup wheel and standard cup wheel - available.

- Complete with Magnetic Coolant Filtration Unit, Coolant Pump & Coolant Tank.

- Complete with multiple spare Segmented Grinding Wheels.

- Operating Manuals & Electrical Drawings are available.

- Machine is in excellent working condition.
