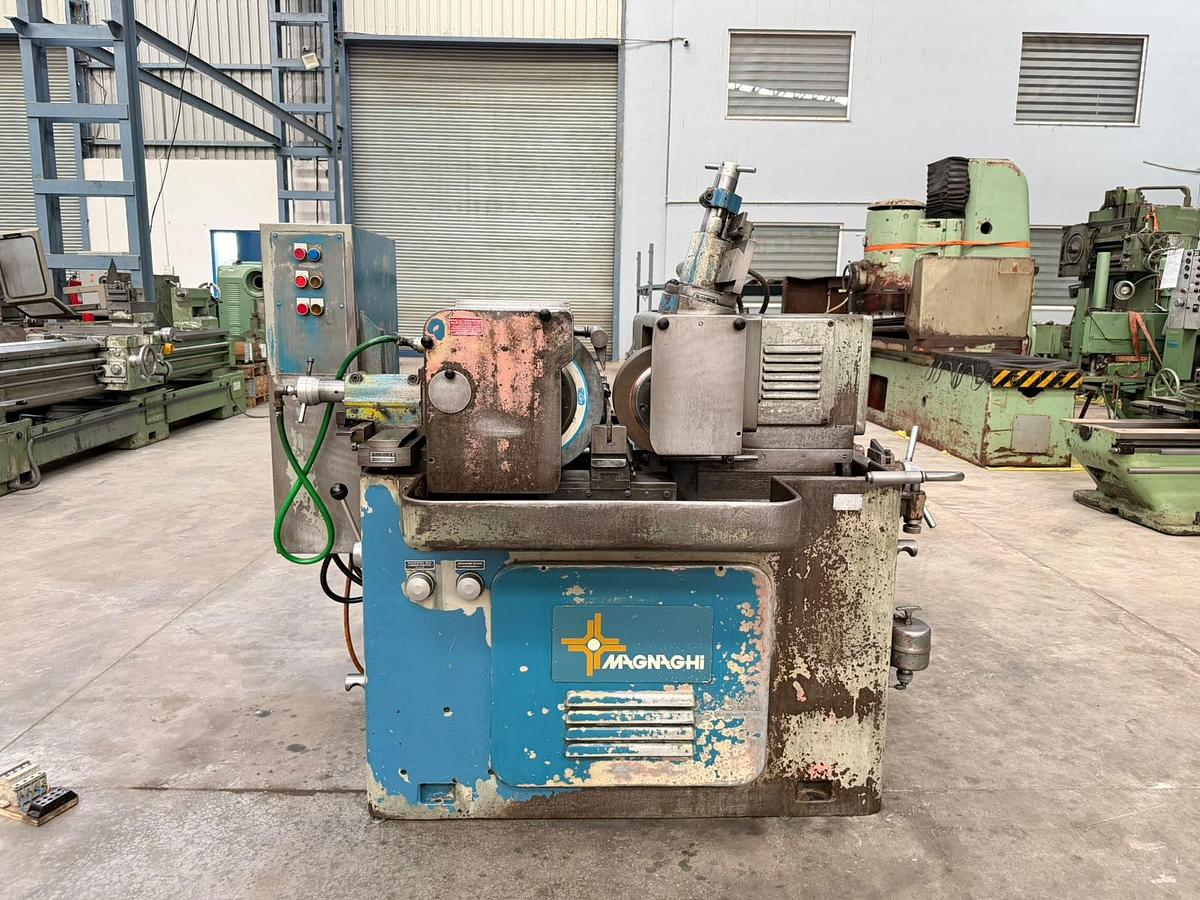

Magnaghi Italy RSC-350 Centerless Grinding Machine

Centerless Grinding Machine made by Magnaghi (Italy), Model RSC-350, available in excellent working condition. The machine is equipped with Automatic Job Pusher Attachment for In-Feed Grinding applications. The Control Wheel can be tilted by ±5 degrees for Through-Feed Grinding applications. The machine is equipped with Hydraulic Wheel Dressing Units for quick and accurate wheel dressing. It is complete with Coolant Tank and Coolant Pump. The technical details are as follows -

Make - Magnaghi (Italy)

Model - RSC-350

Job Grinding Diameter - 2 mm to 85 mm

Grinding Wheel Diameter - 350 mm

Grinding Wheel Width - 100 mm

Control Wheel Diameter - 250 mm

Max. Wheel Width Capacity - 120 mm

Control Wheel Feed Angle - +5 degree to -5 degree

Control Wheel Speeds - 18 / 24 / 34 / 250 RPM

- Suitable for both In-Feed and Through-Feed Grinding Applications.

- Equipped with Hydraulic Wheel Dressers.

- Automatic Job Pusher Attachment for In-Feed Grinding.

- Tilting Type Control Wheel for Through-Feed Grinding.

- Complete with Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
