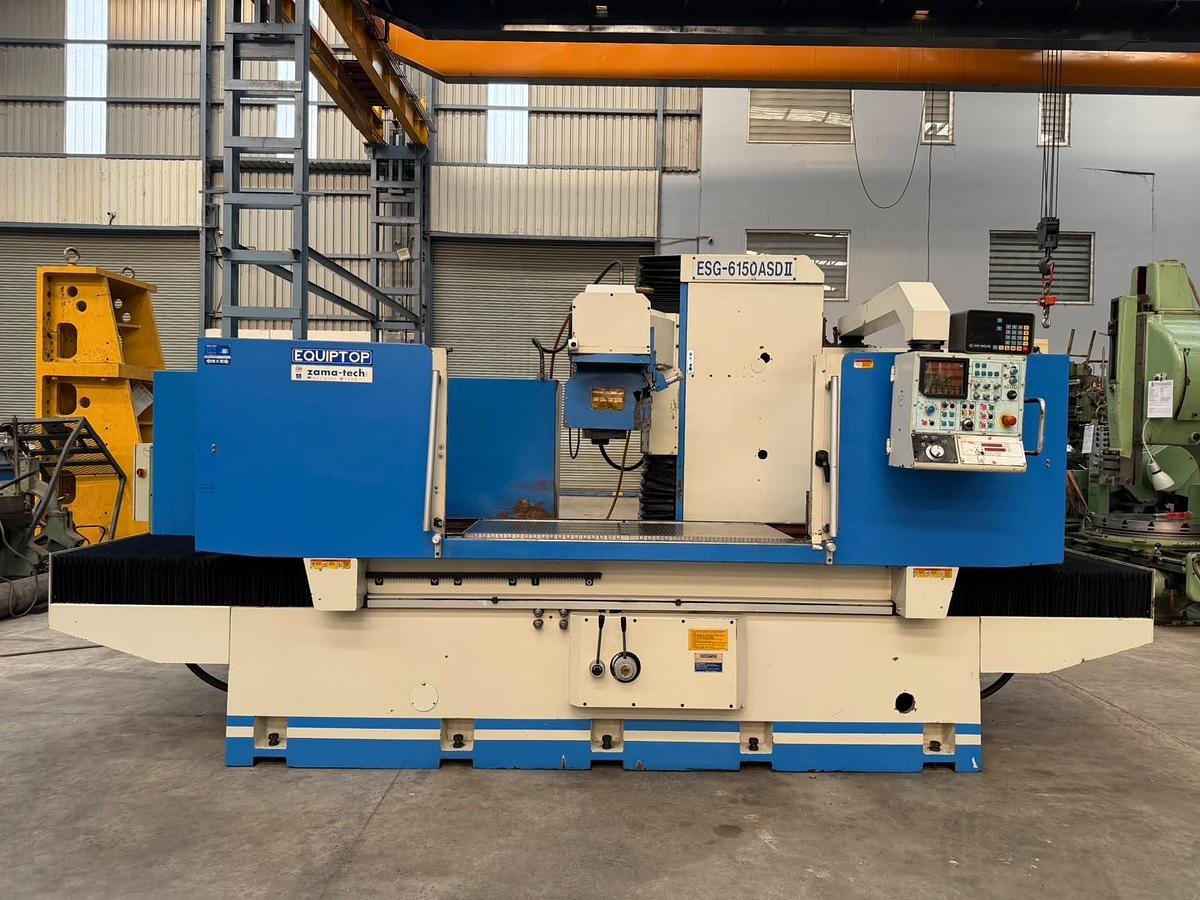

Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine

Heavy Duty Servo-Controlled Automatic Surface Grinding Machine made by Equiptop (Taiwan), Model ESG-6150ASD-II, available in excellent working condition. This is a programmable surface grinder equipped with Mitsubishi Servo Motors for the Cross (Y) and Vertical (Z) axes. The machine is fitted with a 600 mm × 1500 mm Magnetic Chuck and has a maximum workpiece capacity of 1482 kg. It features Automatic Surface Grinding and Automatic Plunge Grinding cycles, Manual Pulse Generator (MPG) Handwheel for Y & Z axis movements, and Digital Position Displays for both axes, making it highly suitable for precision grinding of large components with excellent repeatability. The machine is complete with a Magnetic & Paper Band Coolant Filtration Unit and Splash Guards. The machine is suitable for precision grinding of machine bases, die plates, mould components, guideways, fixtures, and other large precision components. The technical details are as follows -

Make - Equiptop (Taiwan)

Model - ESG-6150 ASD-II

Magnetic Chuck Size - 600 mm x 1500 mm

Grinding Wheel Size - Diameter 350 mm x 75 mm Width

Max. Height between Magnet and Wheel Centre - 800 mm

Max. Workpiece Weight - 1482 kg

Longitudinal Travel - 1600 mm

Cross Travel - 670 mm

Spindle Motor Power - 10 HP

Least Count (Y & Z Axes) - 1 Micron (0.001 mm)

Approx. Machine Weight - 11.4 Tons

Year of Make - November 2006

- Equipped with Mitsubishi Servo Motors for the Y & Z Axes.

- Programmable Automatic Grinding Cycles for Surface Grinding and Plunge Grinding.

- Equipped with MPG Handwheel for Y-Axis & Z-Axis Movements.

- Digital Position Displays for Y & Z Axes.

- Complete with Magnetic & Paper Band Coolant Filtration Unit and Splash Guards.

- Machine is in excellent working condition.
