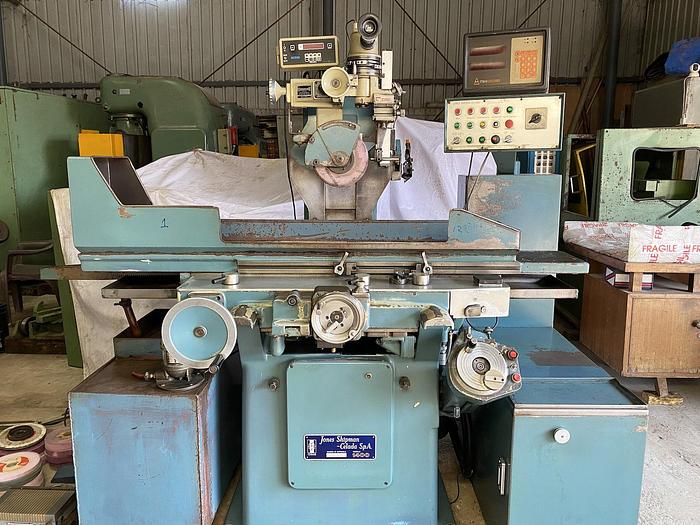

Jones Shipman Surface Grinder with Optidress E
Jones Shipman Surface Grinder with Optidress E
Contact us for price
Location:New Delhi, India
Description
Jones & Shipman (England) make Precision Surface Grinding Machine in excellent working condition. The machine is equipped with OPTIDRESS E Wheel Forming Attachment and the Model of the machine is 1400. The technical details are as follows-
Make - Jones & Shipman (England)
Model - 1400
Grinding Capacity - 204 mm x 610 mm
Longitudinal Travel of Table - 635 mm
Grinding Wheel Size - 204 mm Dia. X 20 mm Width
Vertical Travel of Wheel-Head - 280 mm
Least Count of Vertical Travel Feed - 1 microns
Graduations on Dials - Metric (in mm)
- Equipped with OPTIDRESS E Wheel Forming Attachment.
- Optidress E has a 4-axis digital readout and magnified optical control.
- Machine is equipped with DRO on Vertical & Cross Travels.
- With Motorized Vertical Travel of the Wheel-Head.

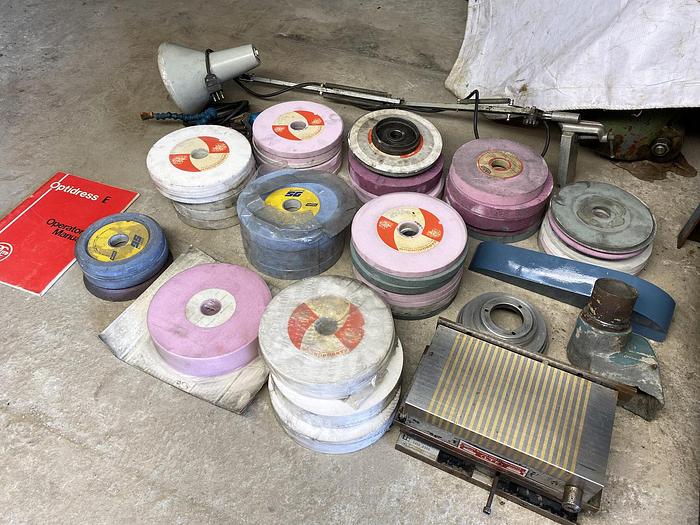

- Complete with lots of spare grinding wheels etc.
- Equipped with Coolant Tank & pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 1400 |
| Condition | Used |
| Grinding Capacity | 204 mm x 610 mm |
| Longitudinal Travel of Table | 635 mm |
| Grinding Wheel Size | 204 mm Dia. X 20 mm Width |
| Vertical Travel of Wheel-Head | 280 mm |
| Least Count of Vertical Travel Feed | 1 microns |
| Graduations on Dials | Metric (in mm) |
| Other Information 1 | Equipped with OPTIDRESS E Wheel Forming Attachment. |
| Other Information 2 | Optidress E has a 4-axis digital readout and magnified optical control. |
| Other Information 3 | Machine is equipped with DRO on Vertical & Cross Travels. |
| Other Information 4 | With Motorized Vertical Travel of the Wheel-Head. |
| Other information 5 | Complete with lots of spare grinding wheels etc. |
| Other information 6 | Equipped with Coolant Tank & pump. |
| Other Information 7 | Machine is in excellent working condition. |
