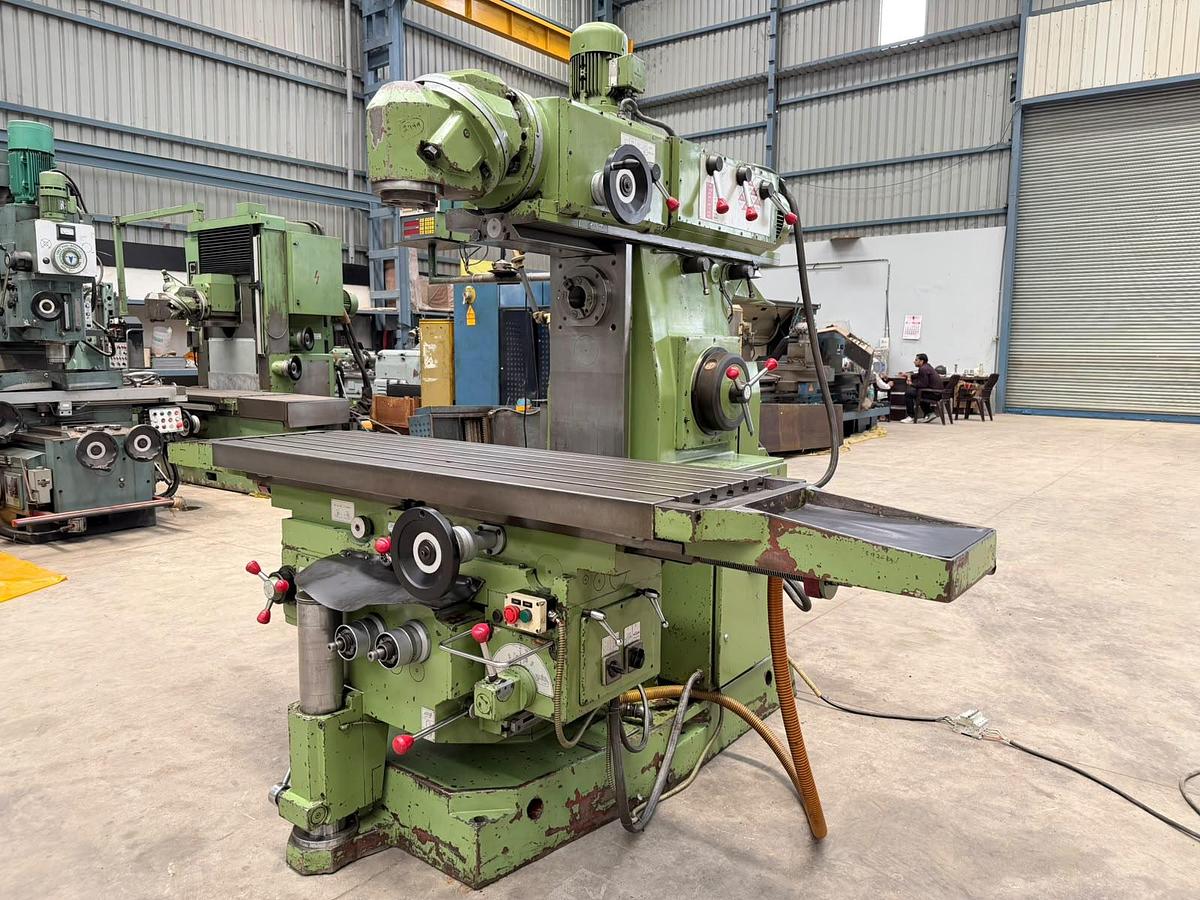

Correa Spain FU-10 Double Spindle Universal Milling Machine

Double Spindle Universal Milling Machine made by Correa (Spain), Model FU-10, available in excellent working condition. This is a heavy-duty universal milling machine equipped with separate Horizontal and Vertical spindles, allowing both Horizontal and Vertical milling operations without the need to mount or remove the Vertical Milling Head. The Double-Swivel Universal Vertical Milling Head also enables Angular Milling operations. The machine features a unique motorised Over-Arm with 800 mm Feed & Rapid Travel, allowing machining of wider workpieces without repositioning the setup. It is also equipped with a 3-Axis DRO for accurate positioning. The technical details are as follows -

Make - Correa (Spain)

Model - FU-10

Table Size - 1550 mm × 500 mm

XYZ Table Travels - 1250 mm × 350 mm × 500 mm

Over-Arm Forward / Backward Travel - 800 mm

Horizontal Spindle Speed Range - 28 to 1400 RPM

Horizontal Spindle Taper - ISO-50

Vertical Spindle Speed Range - 28 to 1400 RPM

Vertical Spindle Taper - ISO-50

Table Feed Rates - 11.2 to 710 mm/min

Over-Arm Feed Rates - 16 to 500 mm/min

Maximum / Minimum Height between Table and Vertical Spindle - 635 mm / 135 mm

Maximum / Minimum Height between Table and Horizontal Spindle Centre - 450 mm / -50 mm

Approx. Machine Weight - 3.92 Tons

- Separate Horizontal and Vertical Spindles allow instant changeover between Horizontal and Vertical milling without mounting or removing the Vertical Milling Head.

- Double-Swivel Universal Vertical Milling Head suitable for Angular & Compound Angle Milling operations.

- Motorised Over-Arm with 800 mm Feed & Rapid Travel.

- Suitable for Horizontal, Vertical, Angular & Compound Angle Milling operations.

- Equipped with a 3-Axis DRO.

- Machine is in excellent working condition.
