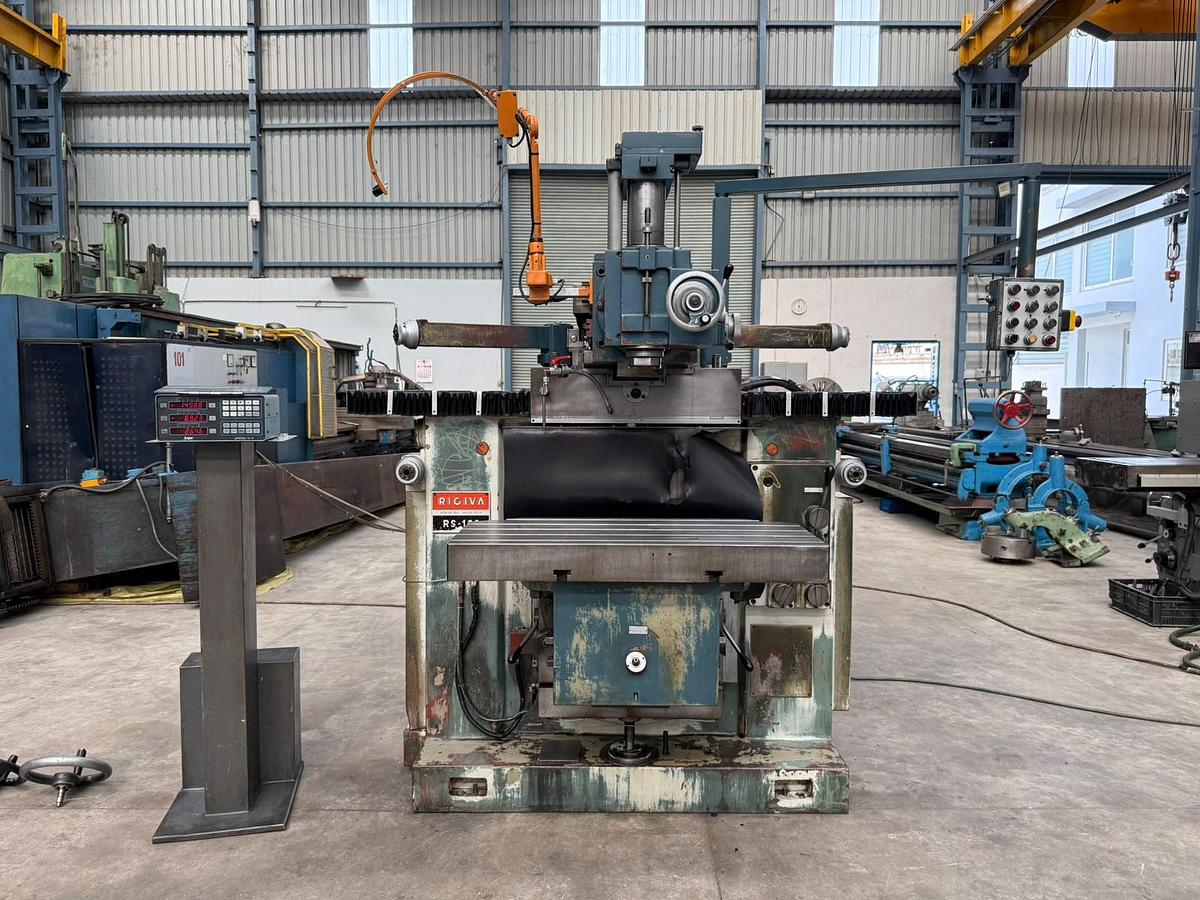

Rigiva Italy RS-100 Universal Toolroom Milling Machine

Universal Toolroom & Diesinking Milling Machine made by Rigiva (Italy), Model RS-100, available in excellent working condition. This is a highly versatile toolroom milling machine suitable for Horizontal Milling, Vertical Milling, Angular Milling, Boring, and Drilling operations. The machine is complete with two Vertical Milling Heads – one Heavy-Duty Face Milling Head and one Boring & Drilling Head – allowing it to perform a wide range of machining operations. It is also complete with the Horizontal Milling Bracket, Bracket Support, and Arbor. The Universal Table can be rotated, swivelled, and inclined by ±30°, enabling complex angular machining and allowing multiple faces of a component to be machined without intermediate resetting. The machine is suited for Toolroom, Diesinking, Die & Mould, Prototype machining, and other similar work. The technical details are as follows -

Make - Rigiva (Italy)

Model - RS-100

Table Size - 1000 mm x 450 mm

XYZ Travel - 670 mm x 500 mm x 550 mm

Spindle Speeds - 50 to 1500 RPM

Spindle Taper - ISO-40

Feed Rates of Travel - 10 to 500 mm/min

Vertical Spindle Travel - 150 mm

Vertical Clamping Area - 600 mm x 475 mm

Table Rotating Range - +30 degree to -30 degree

Table Swivel (Left / Right) - +30 degree to -30 degree

Table Inclination (Front / Rear) - +30 degree to -30 degree

Approx. Machine Weight - 3.62 Tons

- Equipped with a 3-Axis DRO.

- Complete with Heavy-Duty Vertical Face Milling Head.

- Complete with Vertical Precision Boring & Drilling Head.

- Complete with Horizontal Milling Bracket, Bracket Support, and Arbor.

- Equipped with a Universal Table for complex angular and multi-face machining.

- The Vertical Milling Head can be removed for Horizontal Milling operations.

- Table can be removed for direct clamping of workpieces on the vertical clamping surface.

- Suitable for Toolroom, Diesinking, Die & Mould, Prototype Machining, and other similar work.

- Machine is in excellent working condition.
