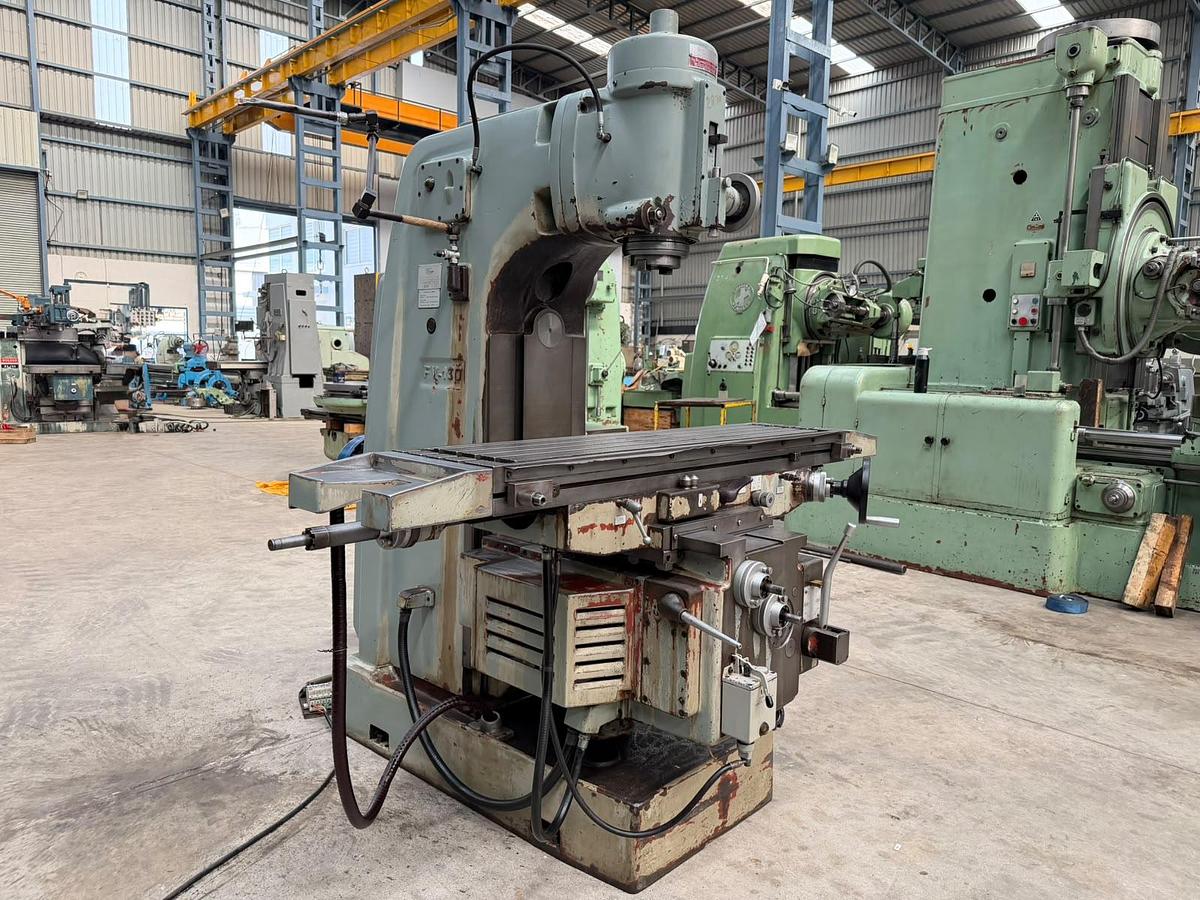

Tiger Italy 1400 mm x 325 mm Vertical Milling Machine

Vertical Milling Machine made by Tiger (Italy), Model FV-130-R, available in excellent working condition. This is a heavy-duty vertical milling machine equipped with a 1400 mm × 325 mm table, an ISO-50 spindle, and a powerful 10 HP spindle motor, making it suitable for heavy-duty face milling, end milling, slot milling, drilling, and general machining operations. The technical details are as follows -

Make - Tiger (Italy)

Model - FV-130-R

Table Size - 1400 mm × 325 mm

XYZ Travels - 1000 mm × 325 mm × 500 mm

Spindle Taper - ISO-50

Spindle Speed Range - 30 to 1500 RPM

Table Feed Rates - 11 mm/min to 750 mm/min

Spindle Motor Power - 10 HP

Spindle Downward Travel - 80 mm

Approx. Machine Weight - 2.82 Tons

- Heavy-duty Pure Vertical Milling Machine with ISO-50 Spindle.

- Machine is in excellent working condition.
