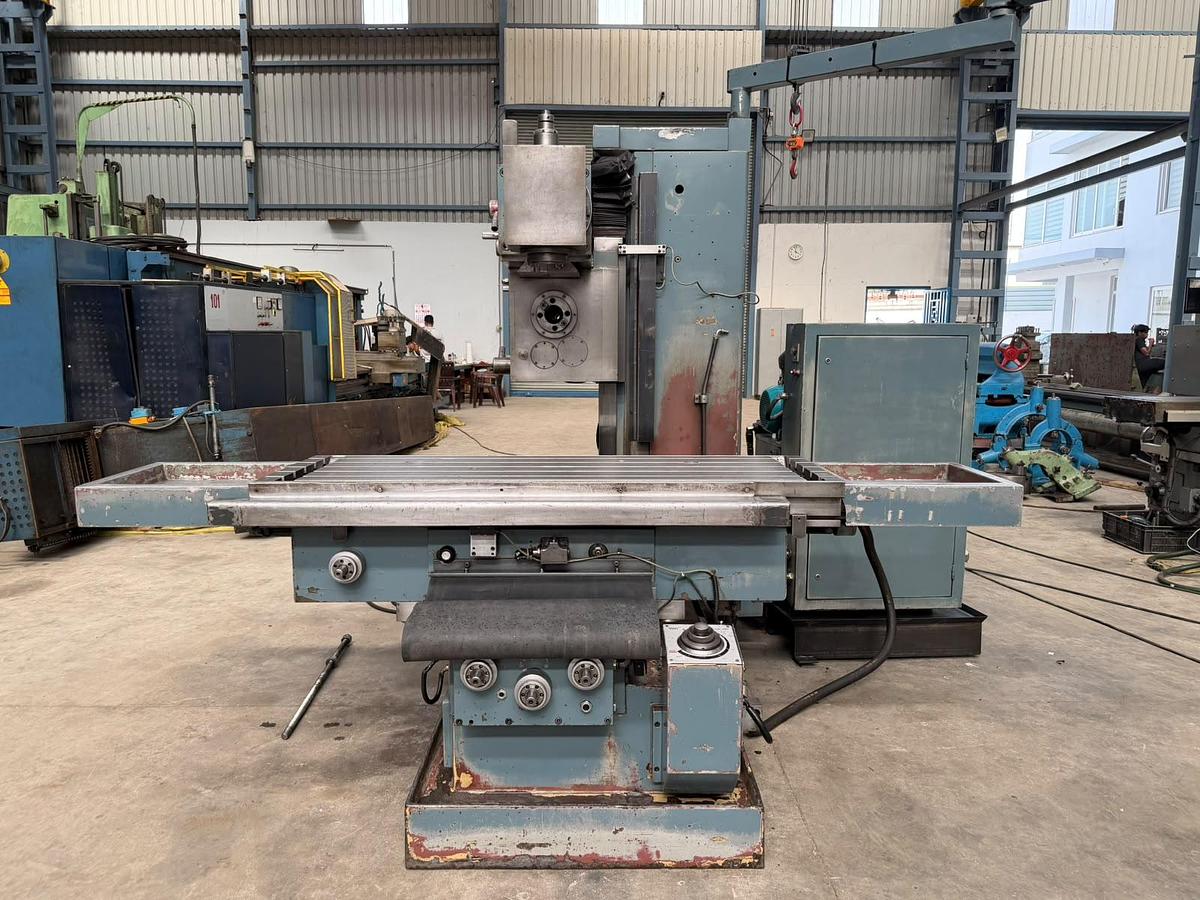

FIL Italy 1620 mm x 520 mm Double Spindle Bed Milling Machine

Double Spindle Bed Milling Machine made by FIL (Italy), Model FU-120, available in excellent working condition. This is a heavy-duty bed-type milling machine equipped with separate Horizontal and Vertical spindles, allowing both Horizontal and Vertical milling operations without the need to mount or remove the Vertical Milling Head. The machine features a manually adjustable Over-Arm Forward / Backward Travel, allowing machining of wider workpieces without repositioning the setup. It is also equipped with a 3-Axis DRO for accurate positioning. The technical details are as follows -

Make - FIL (Italy)

Model - FU-120

Table Size - 1620 mm × 520 mm

XYZ Travels - 1225 mm × 525 mm × 725 mm

Horizontal Spindle Speed Range - 25 to 1200 RPM

Horizontal Spindle Taper - ISO-50

Vertical Spindle Speed Range - 24 to 1600 RPM

Vertical Spindle Taper - ISO-50

Feed Travel Rates - 5 to 1000 mm/min

Over-Arm Forward / Backward Travel - 950 mm

Maximum / Minimum Height between Table and Vertical Spindle - 830 mm / 105 mm

Maximum / Minimum Height between Table and Horizontal Spindle Centre - 685 mm / -35 mm

Approx. Machine Weight - 6.04 Tons

- Separate Horizontal and Vertical Spindles allow instant changeover between Horizontal and Vertical milling without mounting or removing the Vertical Milling Head.

- Manually Adjustable Over-Arm with 950 mm Forward / Backward Travel.

- Equipped with a 3-Axis DRO.

- Machine is in excellent working condition.
