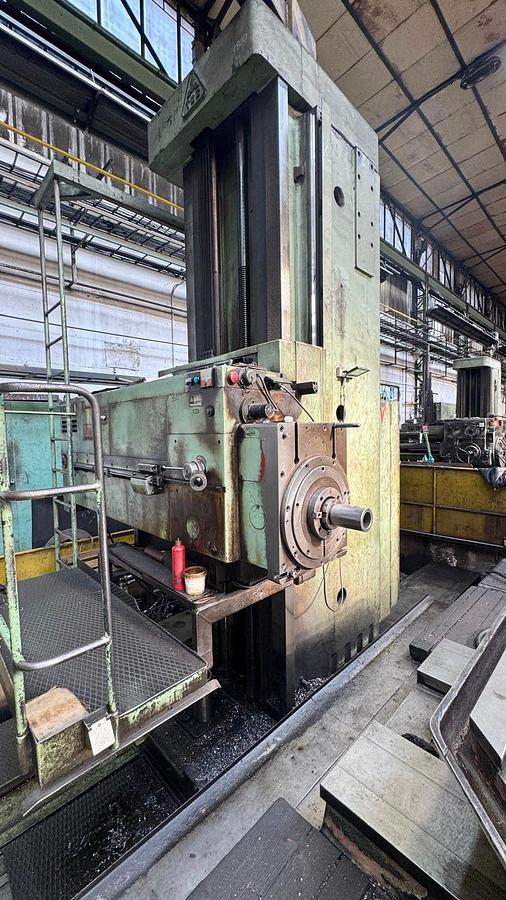

TOS WD130A Floor Boring Machine

Heavy-Duty Floor Boring Machine manufactured by TOS (Czech Republic) in excellent working condition. The machine is a TOS WD130A RAM Type Floor Horizontal Boring Machine, featuring a 130 mm spindle, 3200 mm longitudinal travel, 2300 mm vertical travel, 450 mm RAM travel, and 1120 mm spindle (quill) travel. It is complete with a Skoda E20 Rotary Table, Floor Plate, 2 Milling Heads, Facing Chuck, Operating Manuals, Electrical Drawings, and other documentation. The technical details are as follows -

Make - TOS (Czech Republic)

Model - WD130A

Spindle Diameter - 130 mm

Longitudinal Travel (X) - 3200 mm

Vertical Travel (Y) - 2300 mm

RAM Travel (Z) - 450 mm

Spindle (Quill) Travel (W) - 1120 mm

Spindle Taper - Metric 80

Spindle Speed Range - 2.8 rpm to 900 rpm

Floor Plate Size - 4000 mm x 1890 mm (1 piece)

Rotary Table – Skoda E20, 2000 x 2000 mm

Approx. Machine Weight - 40 Tons

- Complete with 2 x Milling Heads, Facing Chuck, Floor Plate, Rotary Table, etc.

- Complete with Operating Manuals, Electrical Drawings, and other documentation.

- Machine is in excellent working condition.
