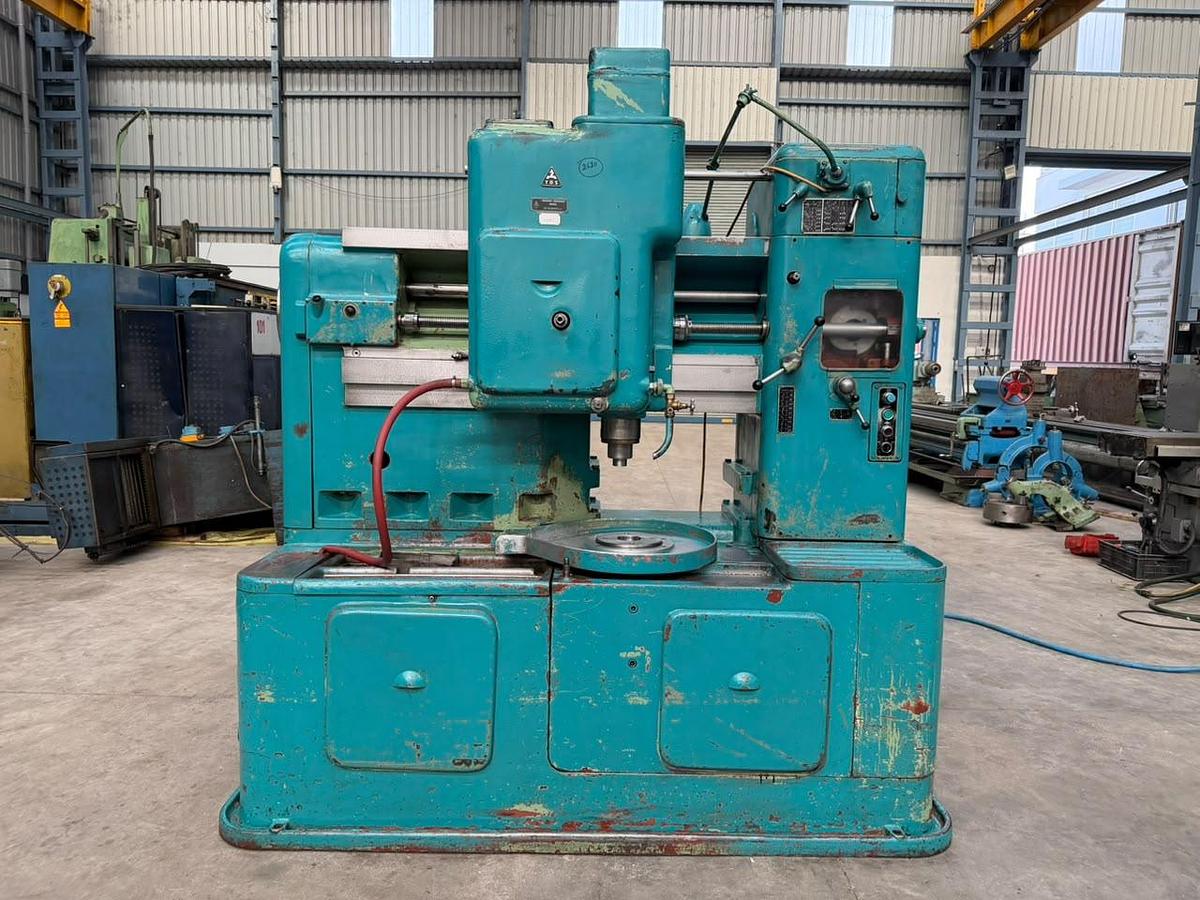

TOS Czech OH-6 Gear Shaper Machine With 150 mm Packing Block

TOS (Czech Republic) Gear Shaper Machine, Model OH-6, available in excellent working condition. This Gear Shaper has a maximum module capacity of 6 Modules, maximum gear diameter of 500 mm, and a maximum stroke length of 110 mm. The machine is equipped with a 150 mm Packing Block, increasing the distance between the spindle and table to accommodate taller workpieces. It is suitable for both External and Internal Gear Cutting applications. The machine is complete with Change Gears, Operating Manual, and Electrical Drawings. The machine is also complete with an original TOS Right-Angle Work Spindle Attachment for Horizontal Workpiece Mounting. This attachment can be used for special gear shaping applications involving certain face-type components such as clutches, couplings, and ratchet wheels. The technical details are as follows -

Make - TOS (Czech Republic)

Model - OH-6

Max. Module Capacity - 6 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 110 mm

Stroke Rate Range - 50 to 315 Strokes/Minute

Height between Table and Spindle Body - 385 mm

Spindle Diameter - 78 mm

- Equipped with a 150 mm Packing Block for increased job capacity.

- Suitable for External and Internal Gear Cutting.

- Complete with original TOS Right-Angle Work Spindle Attachment for Horizontal Workpiece Mounting.

- Complete with Change Gears.

- Operating Manual and Electrical Drawings available.

- Machine is in excellent working condition.
