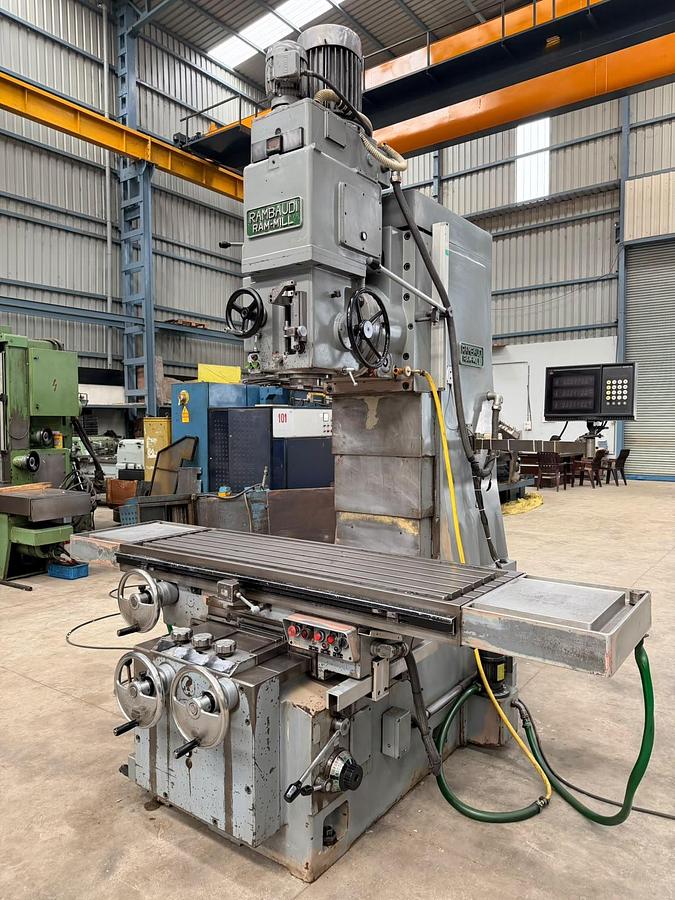

Rambaudi Italy RAM-MILL Vertical Bed Milling Machine
Rambaudi Italy RAM-MILL Vertical Bed Milling Machine
Contact us for price
Location:New Delhi, India
Description
Vertical Bed Milling Machine manufactured by Rambaudi (Italy), Model RAM-MILL, available in excellent working condition. This is a heavy-duty Bed-Type Milling Machine equipped with automatic spindle feed for vertical milling, boring, and drilling applications. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -
Make - Rambaudi (Italy)
Model - RAM-MILL
Table Size - 1610 mm × 510 mm
XYZ Travels - 1200 mm × 500 mm × 550 mm
Spindle Speed Range - 50 to 3000 RPM
Spindle Taper - ISO-50
Spindle Feed Travel - 150 mm
Maximum Height between Table and Spindle - 675 mm
Travel Feed Rates - 8 mm/min to 1000 mm/min
Machine Weight - Approx. 4.90 Tons
- Equipped with a 3-Axis DRO.
- Heavy-duty Bed-Type Milling Machine suitable for vertical milling, boring, and drilling applications.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Rambaudi |
| Model | RAM-MILL |
| Condition | Used |
| Stock Number | 2980 |
| Make | Rambaudi (Italy) |
| Model | RAM-MILL |
| Table Size | 1610 mm × 510 mm |
| XYZ Travels | 1200 mm × 500 mm × 550 mm |
| Spindle Speed Range | 50 to 3000 RPM |
| Spindle Taper | ISO-50 |
| Spindle Feed Travel | 150 mm |
| Maximum Height between Table and Spindle | 675 mm |
| Travel Feed Rates | 8 mm/min to 1000 mm/min |
| Machine Weight | Approx. 4.90 Tons |
| Other Information 1 | - Equipped with a 3-Axis DRO. |
| Other Information 2 | - Heavy-duty Bed-Type Milling Machine suitable for vertical milling, boring, and drilling applications. |
| Other Information 3 | - Machine is in excellent working condition. |
