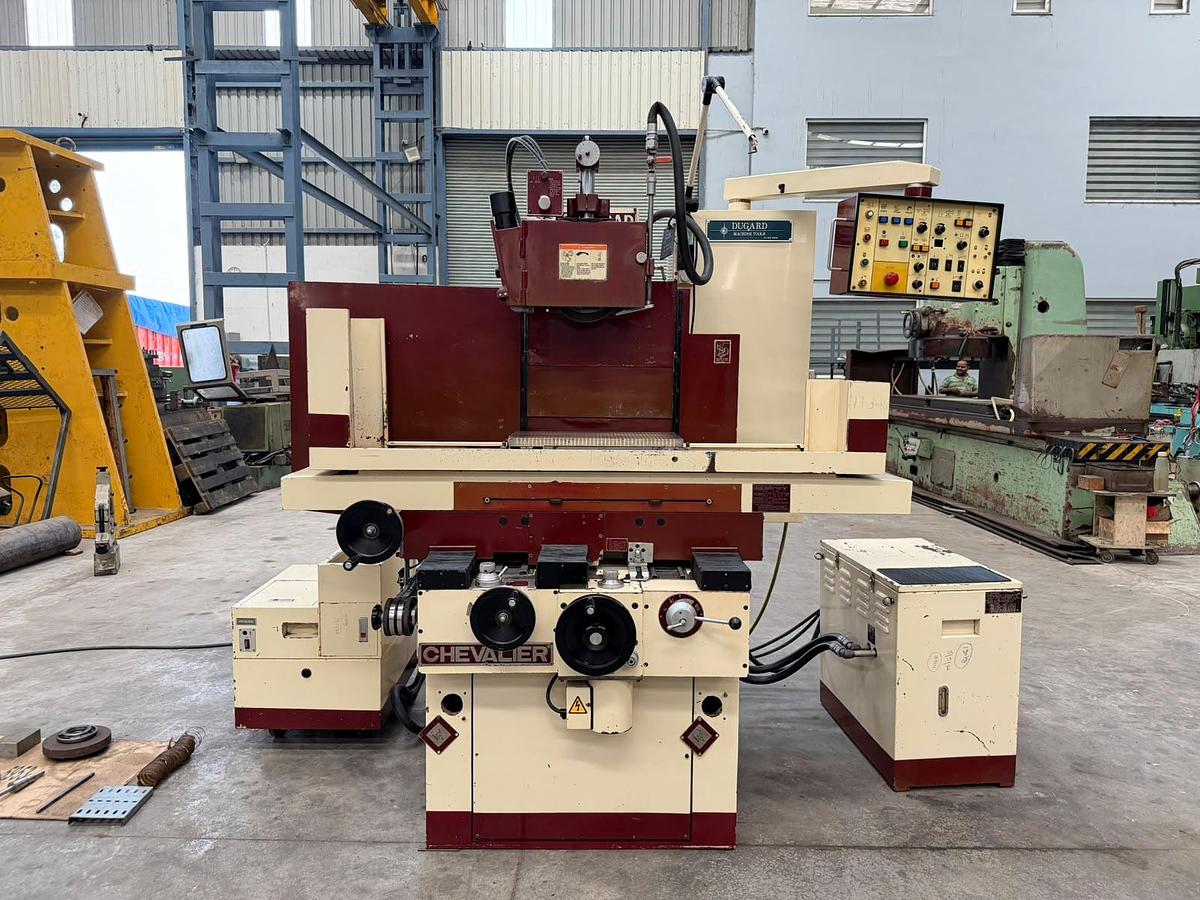

Chevalier FSG-1020AD Automatic Surface Grinding Machine

Automatic Surface Grinding Machine manufactured by Chevalier (Taiwan), Model FSG-1020AD, available in excellent working condition. This is a High-Precision Automatic Hydraulic Surface Grinding Machine featuring Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut) cycles. The machine offers High-Precision Micro-Feed Adjustments in both the Vertical and Cross Travels, with a Least Count of 1 Micron (0.001 mm) on both axes. It is equipped with a 250 mm × 500 mm Magnetic Chuck and a 300 mm Diameter × 32 mm Wide Grinding Wheel. The machine is complete with a Top-Mounted Hydraulic Wheel Dresser, Coolant Tank, Coolant Pump, and Dust Collector Unit. The technical details are as follows -

Make - Chevalier (Taiwan)

Model - FSG-1020AD

Magnetic Chuck Size - 250 mm × 500 mm

Grinding Wheel Size - 300 mm Diameter × 32 mm Width

Maximum Height between Magnetic Chuck and Wheel Centre - 455 mm

Longitudinal Travel - 600 mm

Cross Travel - 325 mm

Least Count of Vertical Travel - 1 Micron (0.001 mm)

Least Count of Cross Travel - 1 Micron (0.001 mm)

- Micro-Feed Adjustments on both Vertical and Cross Travels.

- Features Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut) cycles.

- Equipped with a Top-Mounted Hydraulic Wheel Dresser.

- Complete with Coolant Tank, Coolant Pump, and Dust Collector Unit.

- Machine is in excellent working condition.
