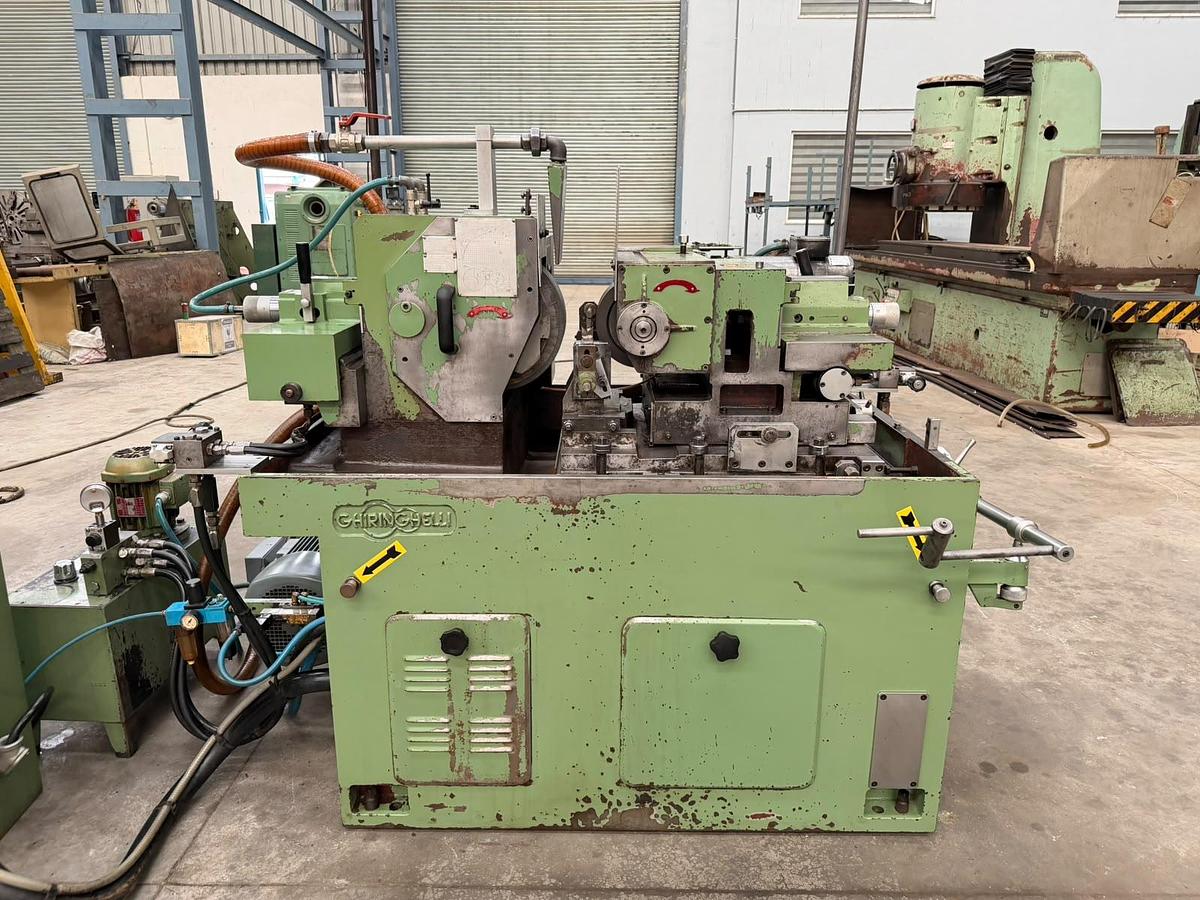

Ghiringhelli Italy M100-D1 Hydraulic Centerless Grinding Machine

Centerless Grinding Machine manufactured by Ghiringhelli (Italy), Model M100 D1, available in excellent working condition. The machine has a Job Diameter Range of 3 mm to 85 mm and is suitable for In-Feed, Through-Feed, and Taper Grinding applications. The machine is equipped with an Automatic Forward Compensation feature that advances the Control Wheel Slide by 2.5 Microns (0.0025 mm). The machine is complete with its Dust Collector, Coolant Tank and Coolant Pump. The technical details are as follows -

Make - Ghiringhelli (Italy)

Model - M100 D1

Job Diameter Range - 3 mm to 85 mm

Grinding Wheel Diameter - 350 mm

Grinding Wheel Width - 100 mm

Control Wheel Diameter - 203 mm

Control Wheel Feed Angle - +5 degrees to -5 degrees (for Through-Feed Grinding)

Least Count of Handle Stopper Adjustment - 1 Micron (0.001 mm)

- Equipped with Hydraulic Wheel Dressers.

- Automatic Forward Compensation of the Control Wheel Slide by 2.5 Microns (0.0025 mm).

- Control Wheel can be rotated for Taper Grinding.

- Control Wheel can be tilted for Through-Feed Grinding.

- Infinitely Variable Control Wheel Speeds.

- Complete with Dust Collector, Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
