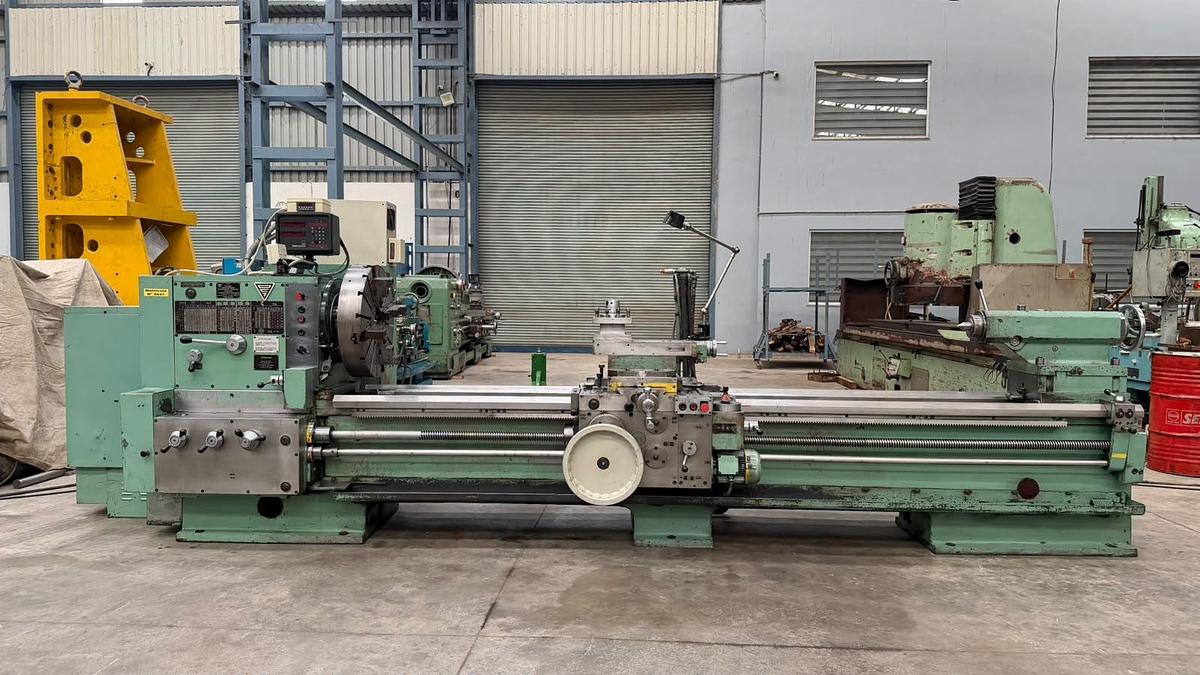

Stanko 16K40 / 3000 mm Heavy Duty Lathe Machine

Heavy-Duty Lathe Machine manufactured by Stanko (Russia), Model 16K40, available in excellent working condition. It is a robust Heavy-Duty Lathe featuring an 840 mm Swing Over Bed, 3000 mm Distance Between Centres, 580 mm Bed Width, and an approximate machine weight of 7.55 Tons. The machine is equipped with Feed & Rapid Travels on the Top Slide (Tool Slide), Automatic Taper Turning, a VFD Drive for the Main Spindle Motor, and a 2-Axis DRO. It is particularly suitable for heavy-duty threading applications and is capable of cutting threads up to a 224 mm pitch. The machine is complete with a Steady Rest, Follow Rest, Operating Manual, Electrical Drawings, and other accessories. The technical details are as follows -

Make - Stanko (Russia)

Model - 16K40

Center Height - 420 mm

Max. Length of Job - 3000 mm

Max. Job Diameter over Cross-Slide - 490 mm

Max. Job Diameter over Bed - 840 mm

Spindle Speed Range - 6.3 to 1250 RPM

Bed Width - 580 mm

Chuck Diameter - 610 mm

Spindle Bore - 103 mm

Approx. Machine Weight - 7.55 Tons

Spindle Motor Power - 18.5 kW

- Equipped with a 2-Axis DRO.

- Equipped with a VFD Drive for the Main Spindle Motor.

- Automatic Feed & Rapid Travels on the Top Slide (Tool Slide).

- Features Automatic Taper Turning.

- Complete with Steady Rest, Follow Rest, and other accessories.

- Operating Manual and Electrical Drawings available.

- Machine is in excellent working condition.
