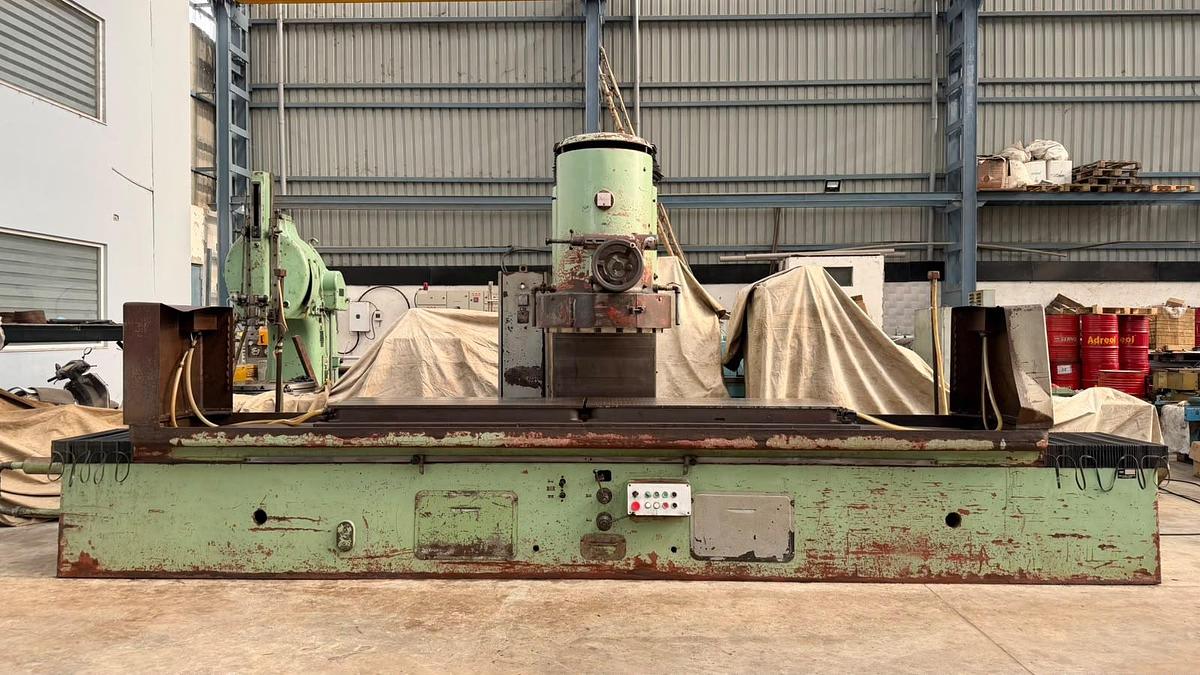

MAS Czech 700 mm x 3000 mm Vertical Surface Grinding Machine

Description

Heavy-Duty Vertical Spindle Surface Grinding Machine manufactured by MAS (Czech Republic), Model BPV 700/3, available in excellent working condition. The machine has a Grinding Capacity of 700 mm x 3000 mm and is equipped with a 750 mm Diameter Segmented Cup Wheel Head. The machine is complete with a Coolant Tank, Coolant Pump, Splash Guards, Operating Manual, and Electrical Drawings. The technical details are as follows -

Make - MAS (Czech Republic)

Model - BPV 700/3

Grinding Capacity - 700 mm x 3000 mm

Segmented Cup Wheel Diameter - 750 mm

Magnetic Chuck Size - 600 mm x 3000 mm (4 pcs of 300 mm x 1500 mm each)

Number of Segments in Cup Wheel - 18 pcs.

Maximum Job Height - 425 mm

Spindle Motor Power - 22 kW

- Features Automatic Depth Adjustment (Auto-Cut).

- Complete with Coolant Tank, Coolant Pump, and Splash Guards.

- Operating Manual and Electrical Drawings available.

- Machine is in excellent working condition.

Specifications

Manufacturer	MAS
Model	BPV 700/3
Condition	Used
Stock Number	3012
Make	MAS (Czech Republic)
Model	BPV 700/3
Grinding Capacity	700 mm x 3000 mm
Segmented Cup Wheel Diameter	750 mm
Magnetic Chuck Size	600 mm x 3000 mm (4 pcs of 300 mm x 1500 mm each)
Number of Segments in Cup Wheel	18 pcs.
Maximum Job Height	425 mm
Spindle Motor Power	22 kW
Other Information 1	- Features Automatic Depth Adjustment (Auto-Cut).
Other Information 2	- Complete with Coolant Tank, Coolant Pump, and Splash Guards.
Other Information 3	- Operating Manual and Electrical Drawings available.
Other Information 4	- Machine is in excellent working condition.
