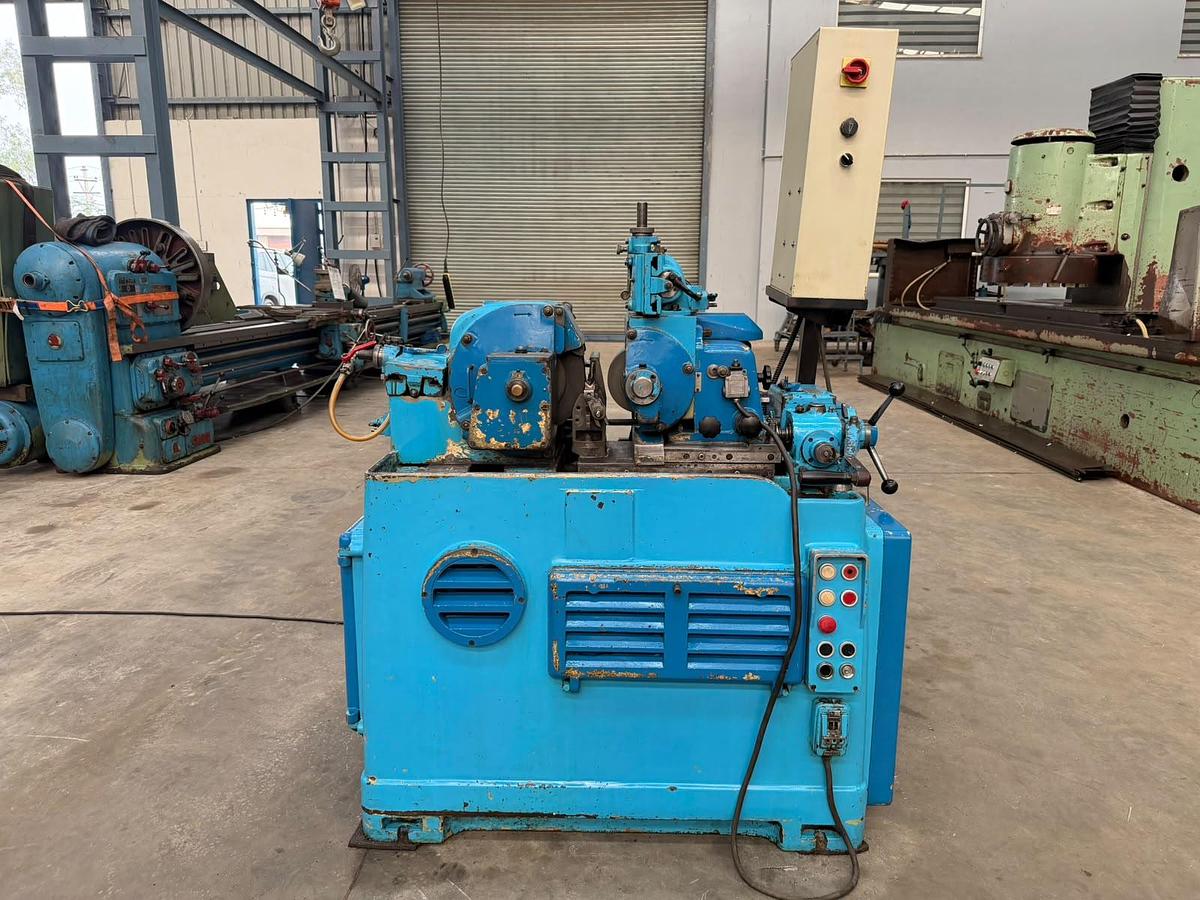

Rossi Monza Italy 300 Automatic Centreless Grinding Machine

Automatic Centreless Grinding Machine manufactured by Rossi Monza (Italy), Model 300, available in excellent working condition. It is an Auto-Cycle Centreless Grinding Machine featuring Automatic Feed Movement of the Control Wheel, Automatic Retraction of the Control Wheel, and an Automatic Job Pusher for In-Feed Grinding operations. The machine has a Job Diameter Capacity of 1 mm to 50 mm and is suitable for In-Feed, Through-Feed, and Taper Grinding applications. It is equipped with Hydraulic Wheel Dressers and an Infinitely Variable Control Wheel Speed Drive (VFD). The technical details are as follows -

Make - Rossi Monza (Italy)

Model - 300

Job Diameter Capacity - 1 mm to 50 mm

Grinding Wheel Diameter - 300 mm

Grinding Wheel Width - 100 mm

Control Wheel Diameter - 200 mm

Currently Installed Wheel Width - 50 mm

Control Wheel Feed Angle - +8 degrees to -8 degrees (for Through-Feed Grinding)

Taper Grinding Angle - 0 degree to 5 degree

Automatic Feed Rate (Control Wheel) - 180 to 1370 pieces/hour

- Equipped with Automatic Job Pusher for In-Feed Grinding.

- Equipped with Hydraulic Wheel Dressers.

- Features Fully Automatic and Manual In-Feed Grinding Cycles.

- Control Wheel can be tilted for Through-Feed Grinding.

- Control Wheel can be rotated for Taper Grinding.

- Equipped with Infinitely Variable Control Wheel Speed (VFD).

- Machine is in excellent working condition.
