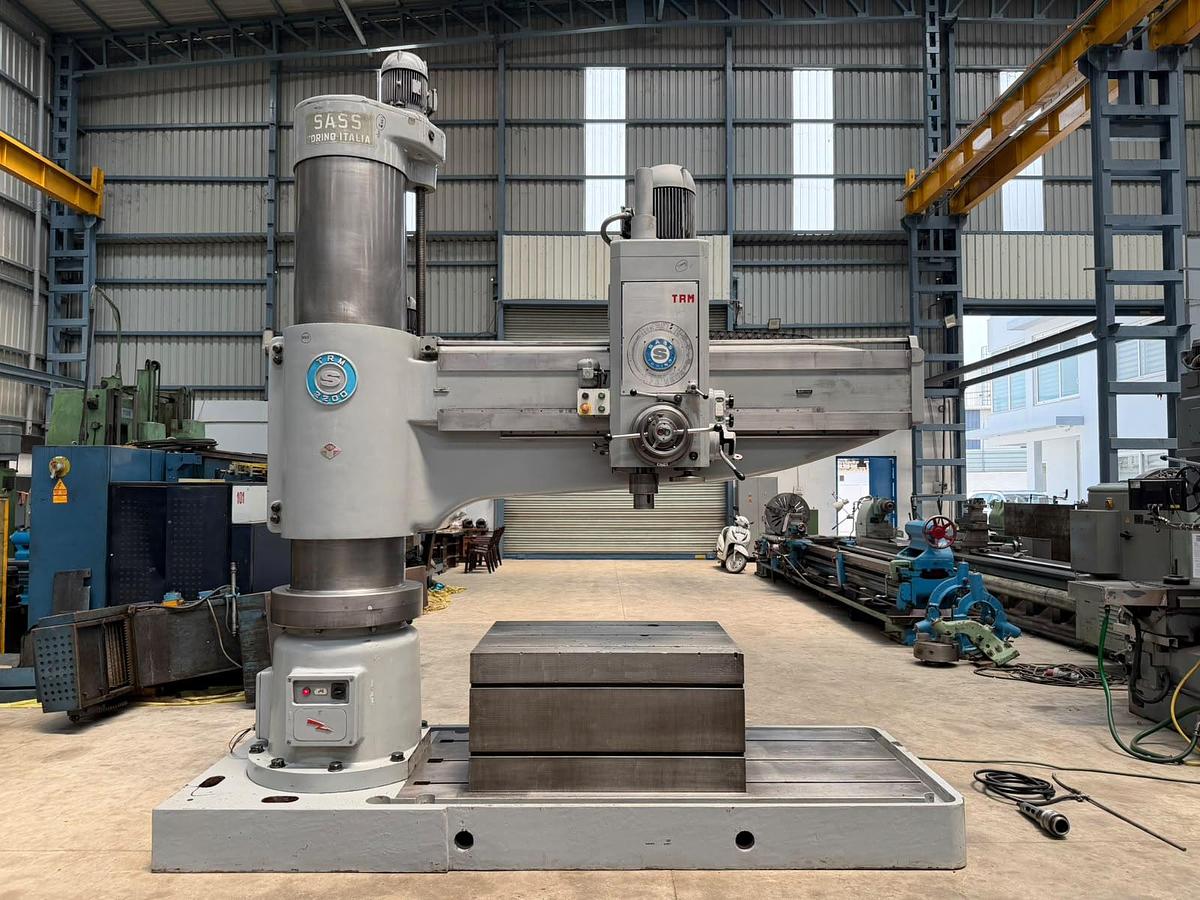

SASS Italy 100 mm x 2400 mm Radial Drilling Machine

Heavy-Duty Radial Drilling Machine manufactured by SASS (Italy), Model TRM-2200, available in excellent working condition. The machine has a Drilling Capacity of 100 mm and a Radial Arm Length of 2400 mm, making it suitable for heavy-duty Drilling, Tapping, Reaming, and Boring applications. It features Automatic Motorised Travel of the Drilling Head along the Radial Arm and is equipped with Automatic Hydraulic Clamping for both the Radial Arm and the Drilling Head, ensuring quick positioning and rigid locking. The technical details are as follows -

Make - SASS (Italy)

Model - TRM-2200

Drilling Capacity - 100 mm

Spindle Diameter - 110 mm

Arm Length - 2400 mm

Spindle Speed Range - 14 to 1275 RPM

Spindle Taper - MT-6

Spindle Feed Travel - 520 mm

Spindle Feed Rate Range - 0.075 to 2.52 mm/rev

Vertical Travel of Radial Arm - 1000 mm

Maximum Height from Spindle to Top of Base - 2050 mm

Cube Table Size - 1245 mm x 905 mm

Spindle Motor Power - 11 kW

Clamping Type - Automatic Hydraulic

Approx. Machine Weight - 11.0 Tons

- Features Automatic Motorised Travel of the Drilling Head along the Radial Arm.

- Complete with Coolant Pump and Quick-Change Tool Holder.

- Machine is in excellent working condition.
