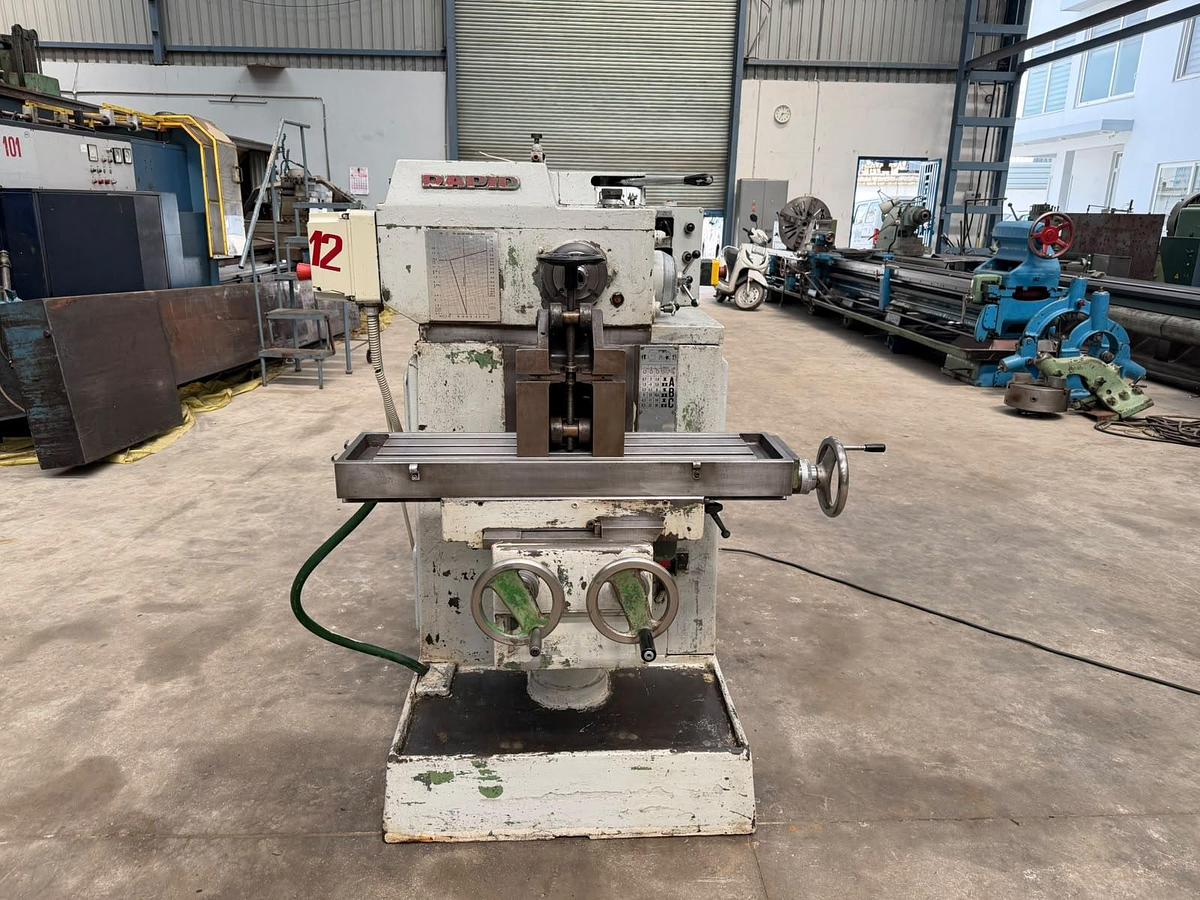

Rapid Italy 200NK Automatic Slot and Keyway Milling Machine

Automatic Horizontal Slot Milling Machine manufactured by Rapid (Italy), Model 200NK, available in excellent working condition. It is a High-Production Auto-Cycle machine designed for automatic horizontal milling of keyways, slots, notches, grooves, and similar profiles. The machine features Automatic Depth Increase, ensuring efficient, accurate, and repeatable machining operations. It has a Maximum Slot Width of 25 mm and a Maximum Slot Length of 200 mm + Tool Diameter. The technical details are as follows -

Make – Rapid (Italy)

Model – 200NK

Max. Slot Width – 25 mm

Max. Slot Length – 200 mm + Tool Diameter

Max. Slot Depth – 50 mm

Max. Slot Length using Table Travel – 600 mm

Table Size – 850 mm x 220 mm

XYZ Table Travels – 400 mm x 200 mm x 300 mm

Spindle Speed Range – 250 RPM to 2000 RPM

Quill Diameter – 100 mm

Automatic Depth Feed Rate – 0.05 mm/stroke to 0.7 mm/stroke

Milling Head Stroke Rate – 0.7 to 28 strokes/min

- High-Production Auto-Cycle Operation with Automatic Depth Increase.

- Suitable for Milling Keyways, Slots, Notches, Grooves, and similar profiles.

- Machine is in excellent working condition.
