Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine
Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine
Contact us for price
Location:New Delhi, India
Description

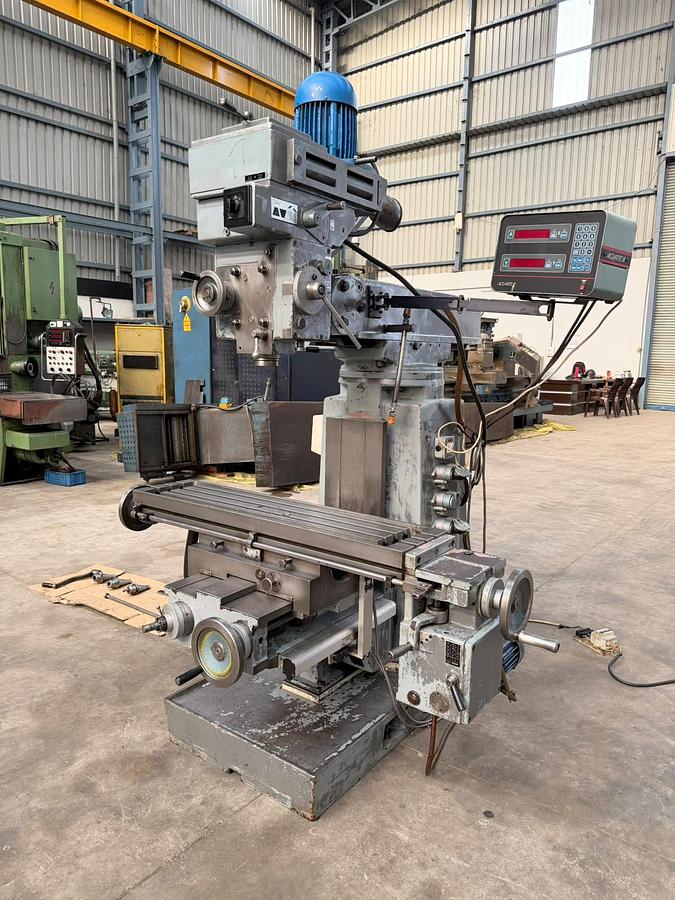

Vertical Turret Milling Machine manufactured by Prvomajska (Yugoslavia), Model G-301, available in excellent working condition. It is a versatile Vertical Turret Milling Machine equipped with an ISO-40 spindle, Powered Longitudinal Table Feed, and Automatic Spindle Down Feed, making it suitable for Milling, Drilling, Boring, and other general machining operations. The machine is equipped with a 2-Axis DRO and is complete with Tool Holders and other accessories. The technical details are as follows -
Make - Prvomajska (Yugoslavia)
Model - G-301
Table Size - 1100 mm x 255 mm
XYZ Travels - 680 mm x 355 mm x 450 mm
Spindle Taper - ISO-40
Spindle Speed Range - 70 to 2300 RPM
Spindle Travel - 130 mm
Spindle Diameter - 85 mm
Longitudinal Table Feed Rate - 14 mm/min to 230 mm/min
- Vertical Milling Head can be Rotated and Tilted.
- Equipped with Automatic Longitudinal Table Feed.
- Equipped with a 2-Axis DRO.
- Complete with Tool Holders and other accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Prvomajska |
| Model | G-301 |
| Condition | Used |
| Stock Number | 2429 |
| Make | Prvomajska (Yugoslavia) |
| Model | G-301 |
| Table Size | 1100 mm x 255 mm |
| XYZ Travels | 680 mm x 355 mm x 450 mm |
| Spindle Taper | ISO-40 |
| Spindle Speed Range | 70 to 2300 RPM |
| Spindle Travel | 130 mm |
| Spindle Diameter | 85 mm |
| Longitudinal Table Feed Rate | 14 mm/min to 230 mm/min |
| Other Information 1 | - Vertical Milling Head can be Rotated and Tilted. |
| Other Information 2 | - Equipped with Automatic Longitudinal Table Feed. |
| Other Information 3 | - Equipped with a 2-Axis DRO. |
| Other Information 4 | - Complete with Tool Holders and other accessories. |
| Other Information 5 | - Machine is in excellent working condition. |
