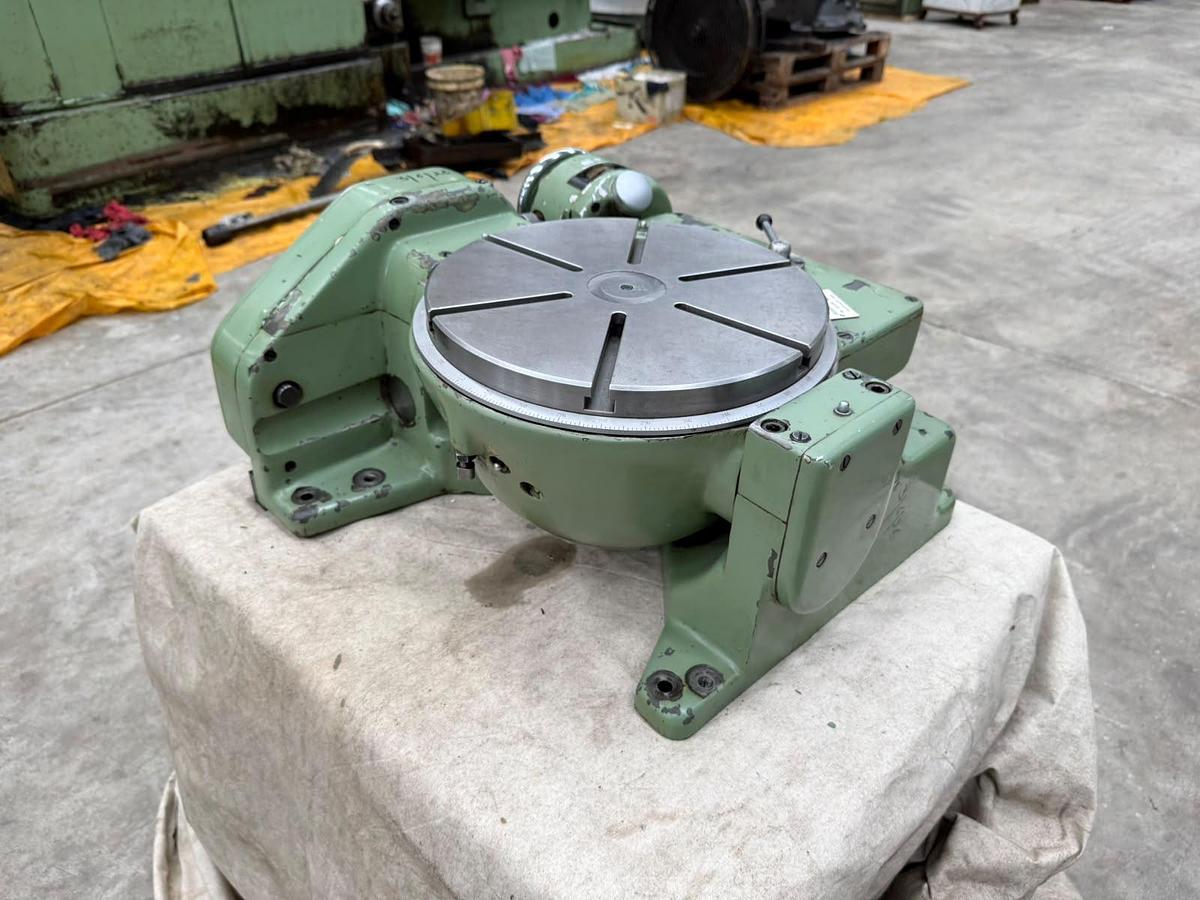

WMW Germany 300 mm Diameter Precision Tilting Rotary Table

Description

Precision Tilting Rotary Table manufactured by WMW (Germany), available in excellent working condition. It is a High-Precision Tilting Rotary Table featuring Micro-Feed Adjustment for both the Rotation and Tilt Axes, enabling highly accurate angular positioning. It features a Vernier Graduation with a Least Count of 2 Seconds of Arc for setting the Rotation Angle and is equipped with a 2-Micron Resolution Dial Gauge for precise Tilt Angle adjustment. It is ideally suited for boring holes and machining faces at compound angles on Jig Boring Machines, Milling Machines, Drilling Machines, and other similar machines. The technical details are as follows -

Make - WMW (Germany)

Table Diameter - 300 mm

Total Height of Table - 245 mm

Number of T-Slots - 6 Nos.

One Revolution of Handle - 2 degrees Rotation of Table

Tilt Angle Range - 0 degrees to 90 degrees

Vernier Graduation (Rotation Angle) - 2 Seconds of Arc

Approx. Table Weight - 110 kg

- Equipped with a Dial Gauge (of 2 Micron Resolution) for precise Tilt Angles Adjustment.

- Features Micro-Feed Adjustment for both the Rotation and Tilt Axes.

- Table is in excellent working condition.

Specifications

Manufacturer	WMW
Model	300
Condition	Used
Stock Number	N4
Make	WMW (Germany)
Table Diameter	300 mm
Total Height of Table	245 mm
Number of T-Slots	6 Nos.
One Revolution of Handle	2 degrees Rotation of Table
Tilt Angle Range	0 degrees to 90 degrees
Vernier Graduation (Rotation Angle)	2 Seconds of Arc
Approx. Table Weight	110 kg
Other Information 1	- Equipped with a Dial Gauge (of 2 Micron Resolution) for precise Tilt Angles Adjustment.
Other Information 2	- Features Micro-Feed Adjustment for both the Rotation and Tilt Axes.
Other Information 3	- Table is in excellent working condition.
