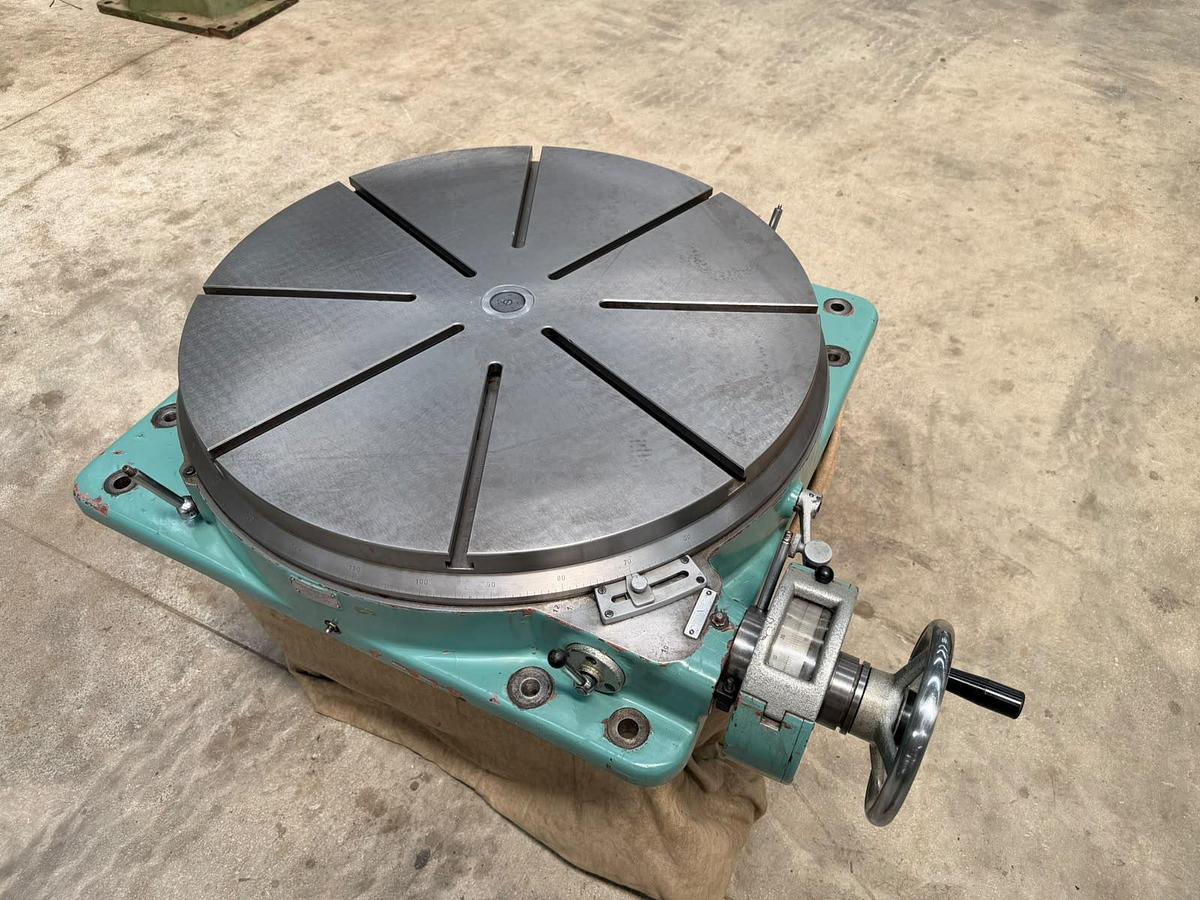

MAS Czech 700 mm Diameter Precision Rotary Table

Description

Precision Rotary Table manufactured by MAS (Czech Republic), 700 mm Diameter, available in excellent working condition. It is a Heavy-Duty Precision Rotary Table featuring a Vernier Graduation with a Least Count of 1 Second of Arc for highly accurate setting of the Rotation Angle. The table is ideally suited for precision indexing, angular positioning, and machining operations on Milling Machines, Jig Boring Machines, Drilling Machines, and other similar machine tools. The technical details are as follows -

Make - MAS (Czech Republic)

Table Diameter - 700 mm

Total Height of Table - 165 mm

Number of T-Slots - 8 Nos.

One Revolution of Handle - 2 Degrees Table Rotation

Vernier Graduation (Rotation Angle) - 1 Second of Arc

Approx. Table Weight - 300 kg

- Heavy-Duty Precision Rotary Table.

- Table is in excellent working condition.

Specifications

Manufacturer	MAS
Model	700
Condition	Used
Stock Number	N5
Make	MAS (Czech Republic)
Table Diameter	700 mm
Total Height of Table	165 mm
Number of T-Slots	8 Nos.
One Revolution of Handle	2 Degrees Table Rotation
Vernier Graduation (Rotation Angle)	1 Second of Arc
Approx. Table Weight	300 kg
Other Information 1	- Heavy-Duty Precision Rotary Table.
Other Information 2	- Table is in excellent working condition.
