WMW Germany 450 mm Precision Rotary Table

Description

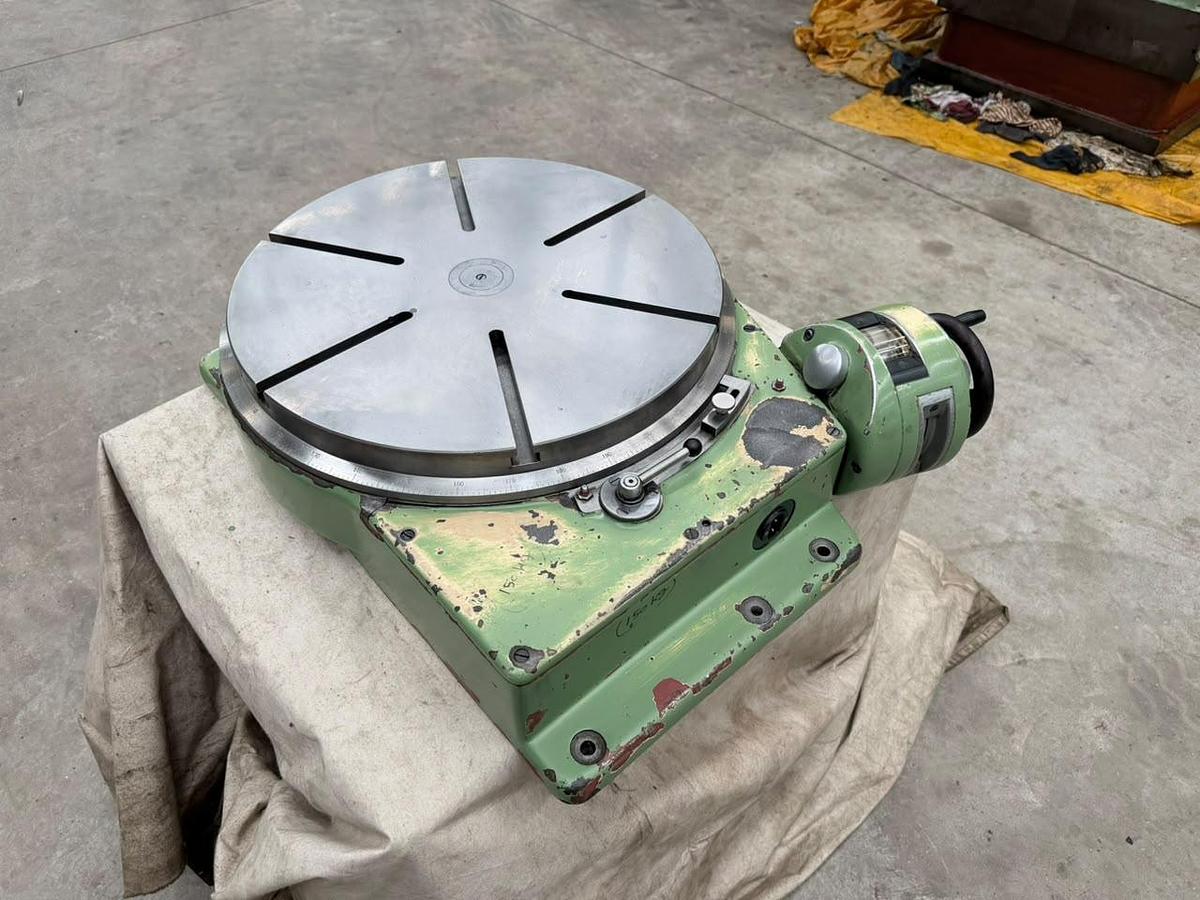

Precision Rotary Table manufactured by WMW (Germany), available in excellent working condition. It is a High-Precision Rotary Table featuring Micro-Feed Adjustment for Table Rotation, enabling highly accurate angular positioning. The table features a Vernier Graduation with a Least Count of 2 Seconds of Arc for precise setting of the Rotation Angle. It is ideally suited for precision indexing on Milling Machines, Jig Boring Machines, Drilling Machines, and other similar machine tools. The technical details are as follows -

Make - WMW (Germany)

Table Diameter - 450 mm

Total Height of Table - 160 mm

Number of T-Slots - 6 Nos.

One Revolution of Handle - 2 Degrees Table Rotation

Vernier Graduation (Rotation Angle) - 2 Seconds of Arc

Approx. Table Weight - 150 kg

- Features Micro-Feed Adjustment for Table Rotation.

- Table is in excellent working condition.

Specifications

Manufacturer	WMW
Model	450
Condition	Used
Stock Number	N6
Make	WMW (Germany)
Table Diameter	450 mm
Total Height of Table	160 mm
Number of T-Slots	6 Nos.
One Revolution of Handle	2 Degrees Table Rotation
Vernier Graduation (Rotation Angle)	2 Seconds of Arc
Approx. Table Weight	150 kg
Other Information 1	- Features Micro-Feed Adjustment for Table Rotation.
Other Information 2	- Table is in excellent working condition.
