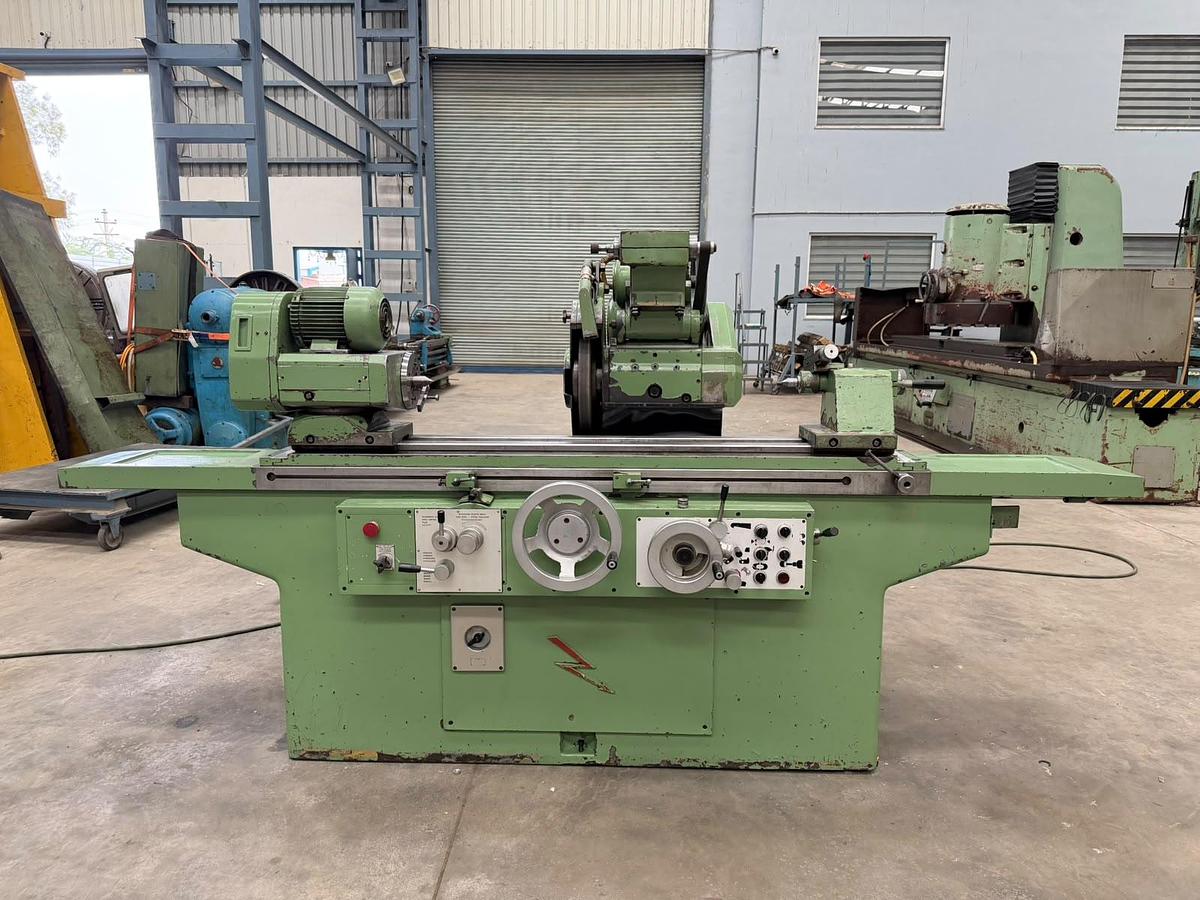

Ribon Italy RUR-H-1000 Universal Cylindrical Grinding Machine
Ribon Italy RUR-H-1000 Universal Cylindrical Grinding Machine
Contact us for price
Location:New Delhi, India
Description
Universal Cylindrical Grinding Machine manufactured by Ribon (Italy), Model RUR-H-1000, available in excellent working condition. The machine has a Maximum Grinding Capacity of 320 mm Diameter x 1000 mm Job Length and features a Least Count of 2 Microns (0.002 mm), making it suitable for High-Precision External & Internal Grinding Operations. The machine features Automatic Depth Adjustment (Auto-Cut), Table Delay (Dwell), and Micro-Feed Movement. The technical details are as follows -
Make - Ribon (Italy)
Model - RUR-H-1000
Centre Height - 160 mm
Max. Job Length - 1000 mm
Max. Job Diameter - 320 mm
Grinding Wheel Size - Diameter 406 mm x 50 mm Width
Workhead Speed Range - 35 to 310 RPM
Least Count on Job Diameter - 2 Microns (0.002 mm)
Table Swivel - +6 degrees to -6 degrees
- Equipped with Internal Grinding Attachment.
- Features Automatic Depth Adjustment (Auto-Cut).
- Features Automatic Table Delay (Dwell).
- Features Micro-Feed Movement.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Ribon |
| Model | RUR-H-1000 |
| Condition | Used |
| Stock Number | 3026 |
| Make | Ribon (Italy) |
| Model | RUR-H-1000 |
| Centre Height | 160 mm |
| Max. Job Length | 1000 mm |
| Max. Job Diameter | 320 mm |
| Grinding Wheel Size | Diameter 406 mm x 50 mm Width |
| Workhead Speed Range | 35 to 310 RPM |
| Least Count on Job Diameter | 2 Microns (0.002 mm) |
| Table Swivel | +6 degrees to -6 degrees |
| Other Information 1 | - Equipped with Internal Grinding Attachment. |
| Other Information 2 | - Features Automatic Depth Adjustment (Auto-Cut). |
| Other Information 3 | - Features Automatic Table Delay (Dwell). |
| Other Information 4 | - Features Micro-Feed Movement. |
| Other Information 5 | - Machine is in excellent working condition. |
