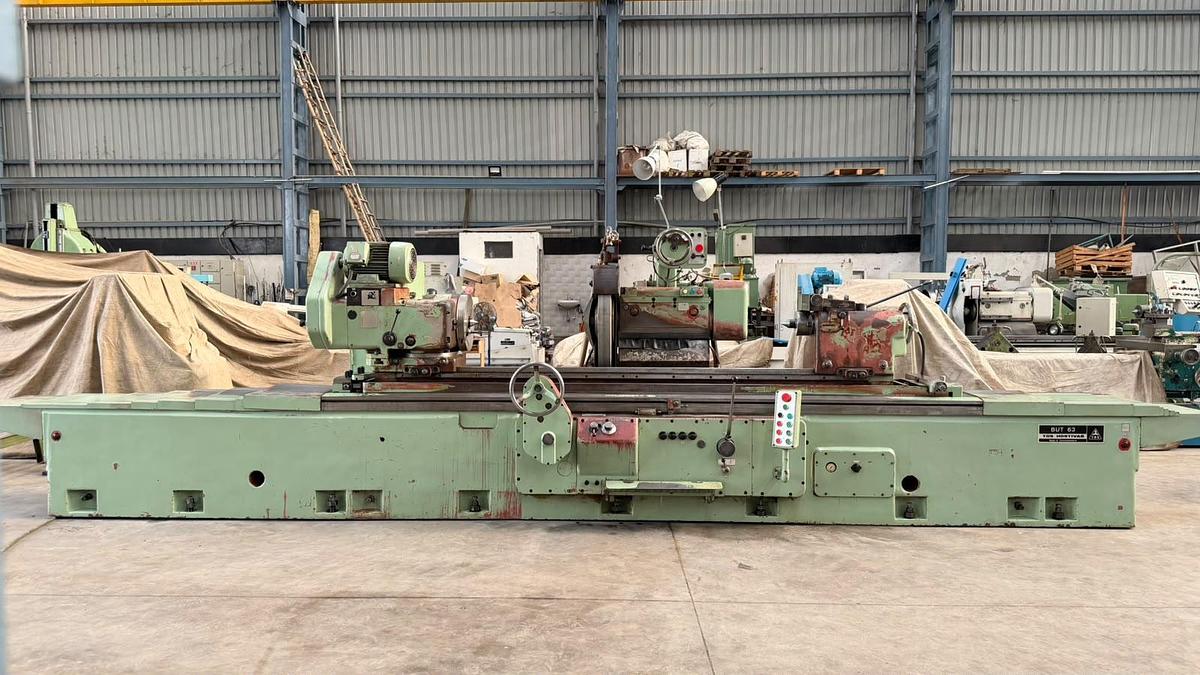

TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine

Heavy-Duty Cylindrical Grinding Machine manufactured by TOS (Czech Republic), Model BUT 63/2000, available in excellent working condition. It is a robust Heavy-Duty Cylindrical Grinding Machine with a Maximum Grinding Capacity of 630 mm Diameter x 2000 mm Job Length and a 750 mm Diameter Grinding Wheel. The machine features a Least Count of 2 Microns (0.002 mm), Automatic Depth Adjustment (Auto-Cut), Auto-Compensation, Plunge Grinding, Table Delay (Dwell), Table Auto-Slow, Rapid Table Travel, and a Hydraulic Tailstock, making it suitable for high-precision heavy-duty grinding applications. The machine is complete with Job Steadies, Wheel Dressers, Wheel Balancing Stand & Shaft, Magnetic Coolant Filtration Unit, Coolant Tank, Coolant Pump, Splash Guards, Operating Manuals, Electrical Drawings, Technical Documentation, and various other accessories. The technical details are as follows -

Make - TOS (Czech Republic)

Model - BUT 63 / 2000

Centre Height - 320 mm

Max. Job Diameter - 630 mm

Max. Job Length - 2000 mm

Grinding Wheel Size - Diameter 750 mm × 100 mm Width

Workhead Speed Range - 9 to 156 RPM

Table Swivel Angle - +6 degrees to -6 degrees

Approx. Machine Weight - 14.50 Tons

- Features Automatic Depth Adjustment (Auto-Cut), Auto-Compensation, and Plunge Grinding.

- Features Table Delay (Dwell), Table Auto-Slow, Rapid Table Travel, and Hydraulic Tailstock.

- Motorised Wheelhead Travel for setting purposes.

- Wheelhead, Workhead, and Table can all be swivelled.

- Complete with 2 x Steady Rests, Straight Wheel Dresser, and Angular Wheel Dresser.

- Complete with Wheel Balancing Stand, Balancing Shaft, Centres, and other accessories.

- Complete with Magnetic Coolant Filtration Unit, Coolant Tank, and Coolant Pump.

- Features Micro-Feed Wheelhead Movement (2 Microns per Stroke).

- Operating Manual, Electrical Drawings, and Technical Documentation are available.

- Machine is in excellent working condition.
