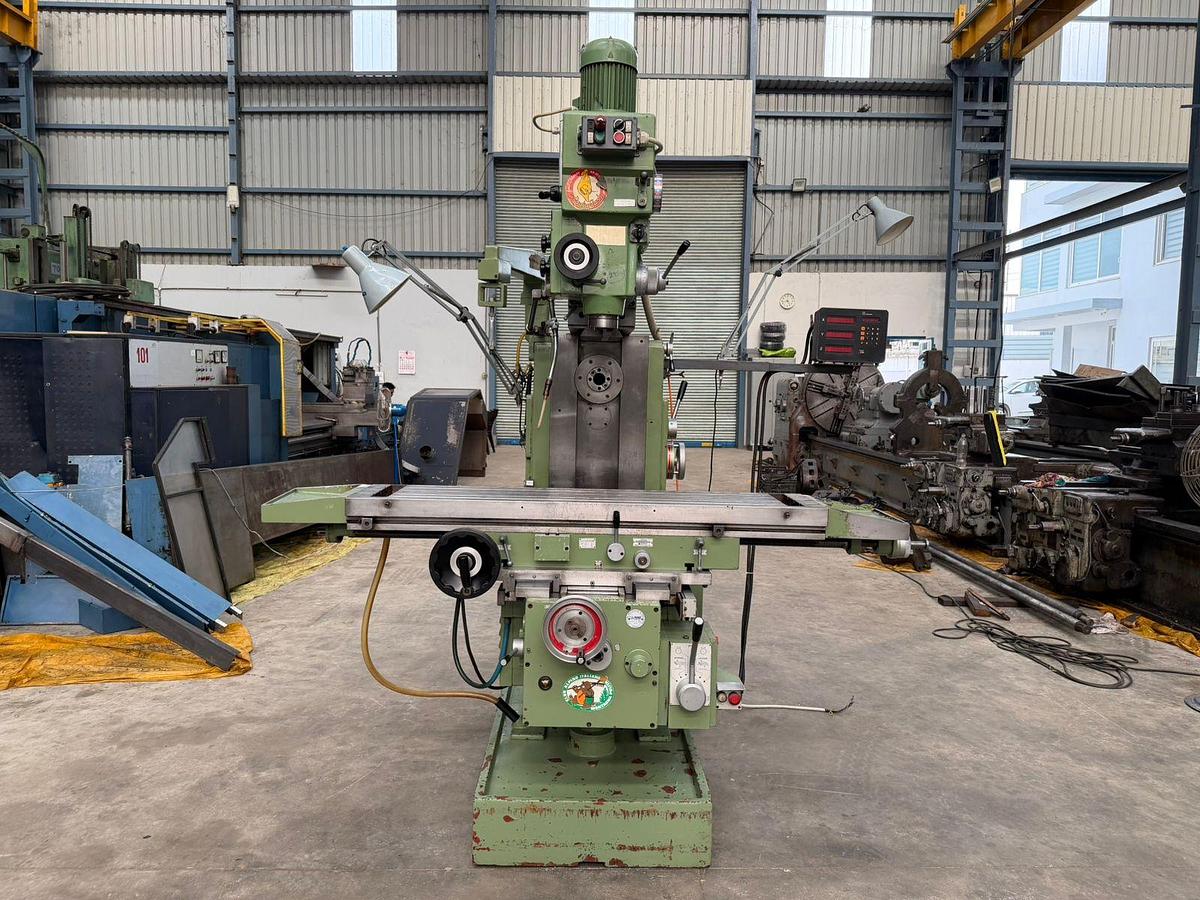

Rumat Italy FUR-3 Double Spindle Universal Milling Machine

Double-Spindle Universal Milling Machine manufactured by Rumat (Italy), Model FUR-3, available in excellent working condition. This is a highly versatile milling machine equipped with separate Horizontal and Vertical Spindles, allowing both Horizontal and Vertical Milling operations without the need to mount or remove the Vertical Milling Head. The machine features manually adjustable Forward / Backward Travel of the Vertical Milling Head Overarm, allowing greater flexibility when machining wider workpieces. It is suitable for Horizontal Milling, Vertical Milling, Vertical Boring, Vertical Drilling, and other similar machining operations. The machine is also equipped with a 2-Axis DRO for accurate positioning and is complete with a Vice and other accessories. The technical details are as follows -

Make - Rumat (Italy)

Model - FUR-3

Table Size - 1430 mm × 320 mm

XYZ Travel - 1000 mm × 325 mm × 475 mm

Feed Travel Rates - 10 to 840 mm/min

Horizontal Spindle Speed Range - 24 to 1200 RPM

Horizontal Spindle Taper - ISO-40

Vertical Spindle Speed Range - 80 to 3700 RPM

Vertical Spindle Taper - ISO-40

Vertical Spindle Travel - 130 mm

Vertical Spindle Feed Rate - 0.04 to 0.14 mm/rev

Maximum / Minimum Height between Table and Vertical Spindle - 625 mm / 0 mm

Maximum / Minimum Height between Table and Horizontal Spindle Centre - 475 mm / 0 mm

Approx. Machine Weight - 2.50 Tons

- Equipped with a 2-Axis DRO.

- Equipped with a Swivelling Universal Table.

- Features Manually Adjustable Forward / Backward Travel of the Vertical Milling Head Overarm.

- Complete with Vice and other accessories.

- Machine is in excellent working condition.
