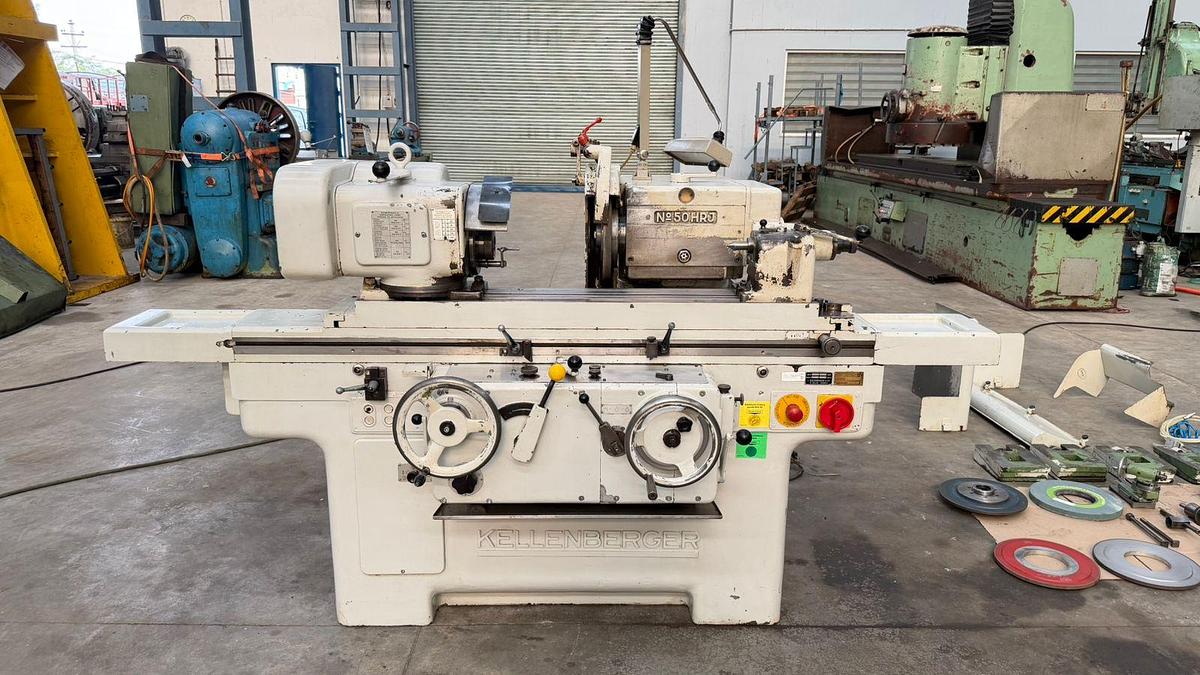

Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine

Cylindrical Grinding Machine manufactured by Kellenberger (Switzerland), Model 50-HRJ, available in excellent working condition. The machine has a Maximum Grinding Capacity of 250 mm Diameter x 600 mm Job Length and features a Table Swivel Angle of +10° to -10°. It is equipped with Hydraulic Table Movement, Automatic Depth Adjustment (Auto-Cut), Table Delay (Dwell), and two different manual travel speeds for both the Table and Wheelhead. The machine is complete with Spare Diamond Grinding Wheels, Wheel Flange, Grinding Wheels, Coolant Tank, Coolant Pump, Angular Wheel Dresser, Operating Manual, Electrical Drawings, and various other accessories. The technical details are as follows -

Make - Kellenberger (Switzerland)

Model - 50-HRJ

Centre Height - 125 mm

Max. Job Length - 600 mm

Max. Job Diameter - 250 mm

Grinding Wheel Size - Diameter 350 mm × 40 mm Width

Workhead Speed Range - 50 to 400 RPM

Table Swivel Angle - +10 degree to -10 degree

Type - Hydraulic Table Movement; Mechanical Wheelhead Travel

- Features Automatic Depth Adjustment (Auto-Cut) and Table Delay Feature.

- Features two different manual travel speeds for the Table and two separate manual travel speeds for the Wheelhead.

- Complete with Spare Diamond Grinding Wheels, Wheel Flange, and Grinding Wheels.

- Complete with Coolant Tank, Coolant Pump, Angular Wheel Dresser, and other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.
