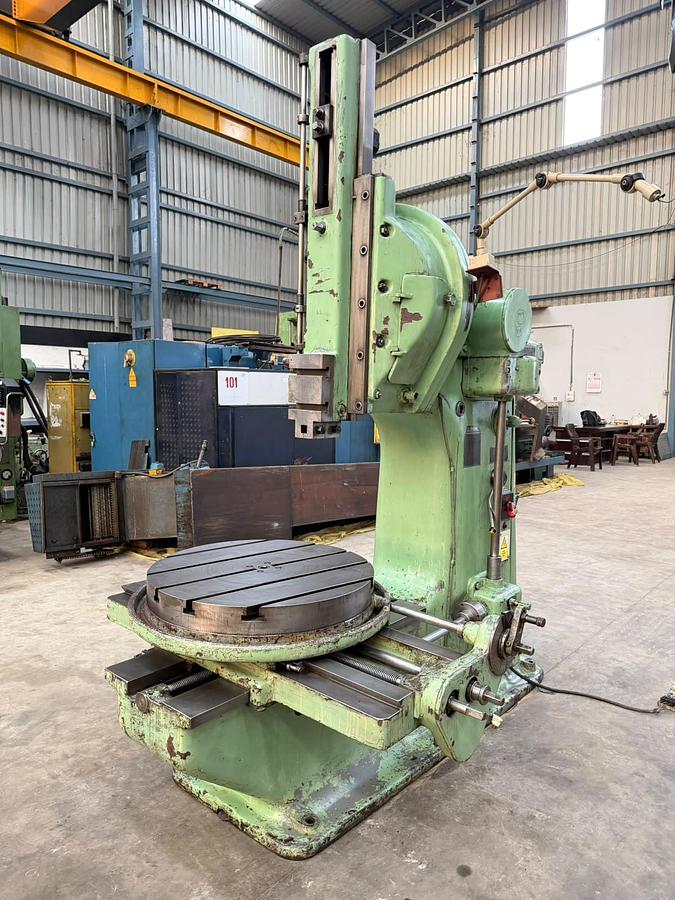

TOS Czech ST-350 Vertical Slotting Machine

Vertical Slotting Machine manufactured by TOS (Czech Republic), Model ST-350, available in excellent working condition. The machine has a Maximum Stroke Length of 350 mm and an 800 mm Diameter Rotary Table. It features Automatic Feed on all three table movements - Longitudinal, Cross, and Table Rotation. The Slotting Head is tiltable up to ±12 degrees, making the machine suitable for taper and angular slotting operations. The technical details are as follows -

Make - TOS (Czech Republic)

Model - ST-350

Max. Stroke Length - 350 mm

Table Diameter - 800 mm

Cross Travel of Table - 650 mm

Longitudinal Travel of Table - 650 mm

Height from Table Top to Machine Body - 550 mm

Distance from Toolhead Edge to Column - 680 mm

Max. Distance between Table Centre and Column - 1100 mm

Stroke Rate - 10 to 56 Strokes/min

Feed Rate - 0 to 2 mm/stroke

Slotting Head Tilting Angle - +12 degree to -12 degree

Approx. Machine Weight - 3.91 Tons

- Features Automatic Feed on Cross, Longitudinal & Table Rotation.

- Machine is in excellent working condition.
