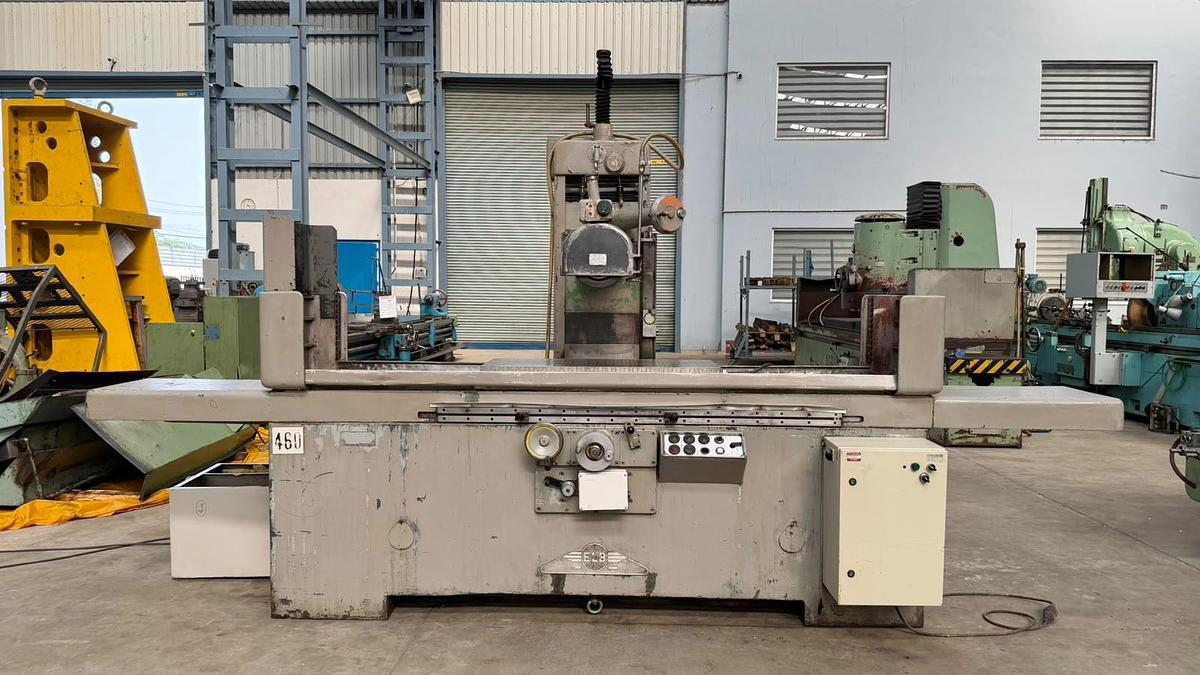

ELB Germany 400 mm x 1500 mm Hydraulic Surface Grinding Machine

Hydraulic Surface Grinding Machine manufactured by ELB (Germany), Model SW-15 VA1, available in excellent working condition. The machine has a Grinding Capacity of 400 mm x 1500 mm and is equipped with a 400 mm × 1000 mm Magnetic Chuck. It is a High-Precision Hydraulic Surface Grinding Machine featuring Micro-Feed Adjustment on the Cross Travel and Vertical Travel. The machine has a Least Count of 1 Micron (0.001 mm) on Vertical Travel and is also equipped with a Top-Mounted Wheel Dresser. The machine is complete with a Coolant Tank, Coolant Pump, and Splash Guards. The technical details are as follows -

Make - ELB (Germany)

Model - SW-15 VA1

Grinding Capacity - 400 mm x 1500 mm

Magnetic Chuck Size - 400 mm x 1000 mm

Grinding Wheel Size - 300 mm Diameter x 50 mm Width

Maximum Height between Table and Wheel Centre - 460 mm

Longitudinal Travel - 1570 mm

Cross Travel - 450 mm

Least Count of Vertical Travel - 1 Micron (0.001 mm)

Least Count of Cross Travel - 10 Microns (0.010 mm)

Approx. Machine Weight - 4.0 Tons

- Equipped with a Top-Mounted Wheel Dresser.

- Features Micro-Feed Adjustment on Cross Travel and Vertical Travel.

- Complete with Coolant Tank, Coolant Pump, and Splash Guards.

- Machine is in excellent working condition.
