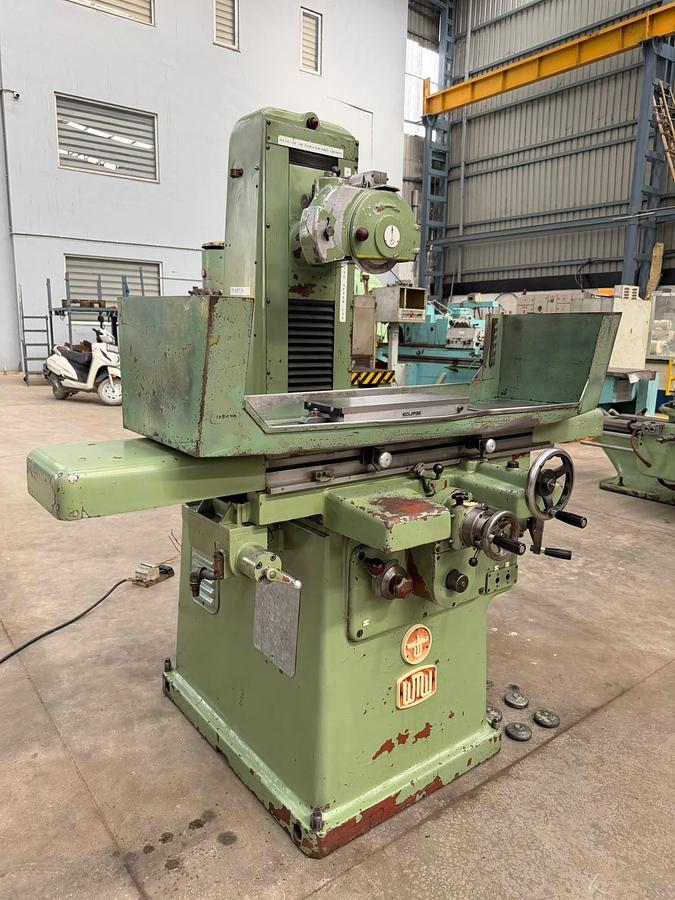

WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder

Hydraulic Surface Grinding Machine manufactured by WMW (Germany), Model SFW 200x600, available in excellent working condition. The machine has a Grinding Capacity of 200 mm x 600 mm and is equipped with a 150 mm × 450 mm Magnetic Chuck. The technical details are as follows -

Make - WMW (Germany)

Model - SFW 200x600

Grinding Capacity - 200 mm x 600 mm

Magnetic Chuck Size - 150 mm x 450 mm

Grinding Wheel Size - 200 mm Diameter x 25 mm Width

Maximum Height between Table and Wheel Centre - 470 mm

Longitudinal Travel - 680 mm

Cross Travel - 225 mm

- Equipped with a Top-Mounted Wheel Dresser Arrangement.

- Machine is in excellent working condition.
