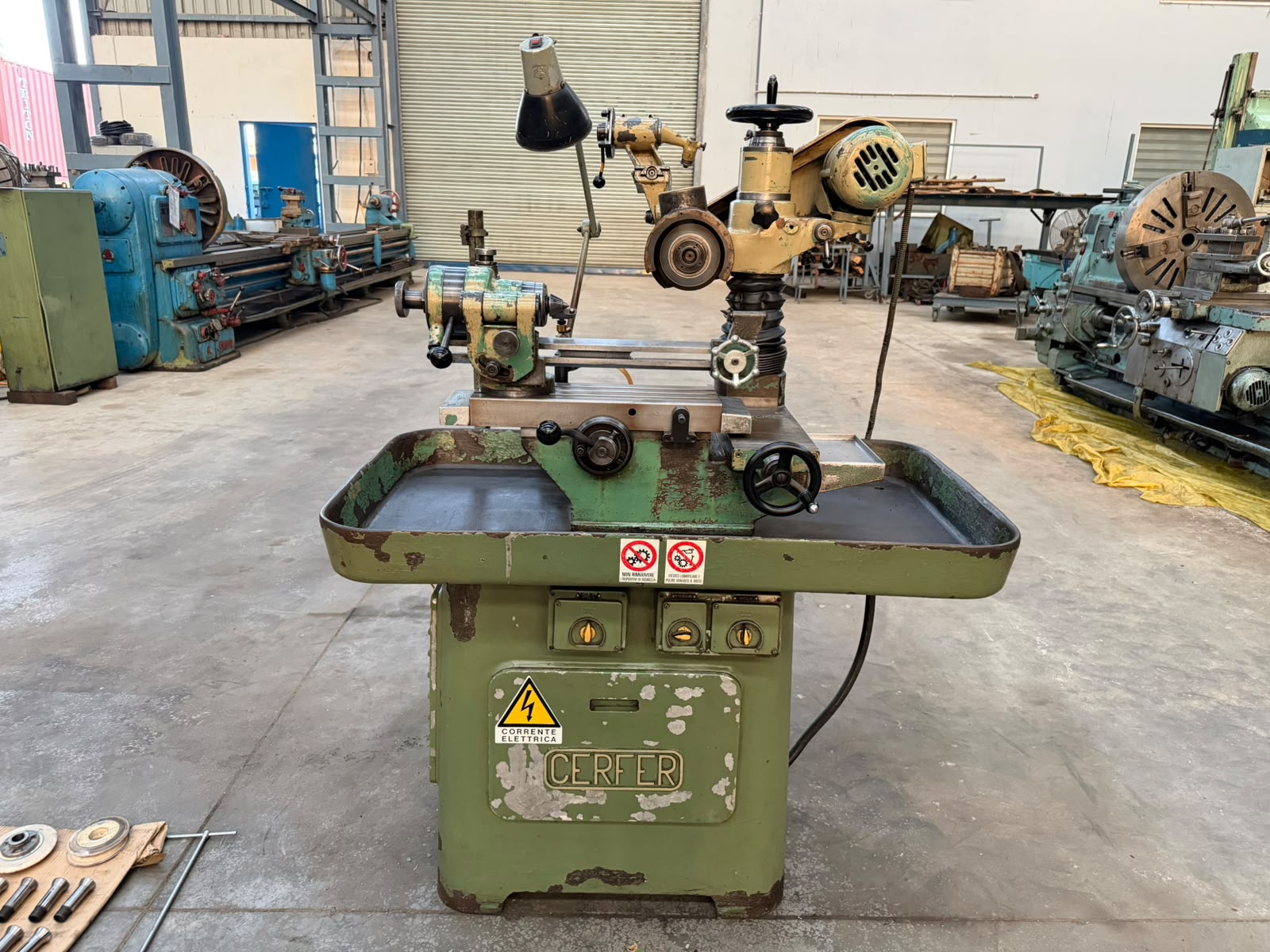

Cerfer Italy Universal Tool & Cutter Grinder

Universal Tool & Cutter Grinder manufactured by Cerfer (Italy), available in excellent working condition. The machine features an easily indexable Workhead with a versatile positioning arrangement that allows the Workhead and Tailstock arrangement to be rotated and tilted as required. The machine is also equipped with a Radius Wheel Dressing Attachment and is complete with its Workhead, Tailstock, Wheel Flanges, Grinding Wheels, Collets, Coolant Tank, Coolant Pump, and various other accessories. The technical details are as follows -

Make - Cerfer (Italy)

Max. Swing Diameter - 110 mm

Max. Distance Between Centers - 300 mm

Longitudinal Table Travel - 150 mm

Cross Table Travel - 150 mm

Wheelhead Rotation - 0 degree to 360 degree

Wheelhead Helix Angle - +90 degree to -90 degree

Wheelhead Tilting Angle - +20 degree to -20 degree

Max. Grinding Wheel Diameter - 125 mm

- Equipped with Radius Wheel Dressing Attachment.

- Features an Easily Indexable Workhead.

- Workhead & Tailstock arrangement can be Rotated and Tilted for Different Grinding Setups.

- Complete with Wheel Flanges, Grinding Wheels, Collets, and various other accessories.

- Complete with Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.
