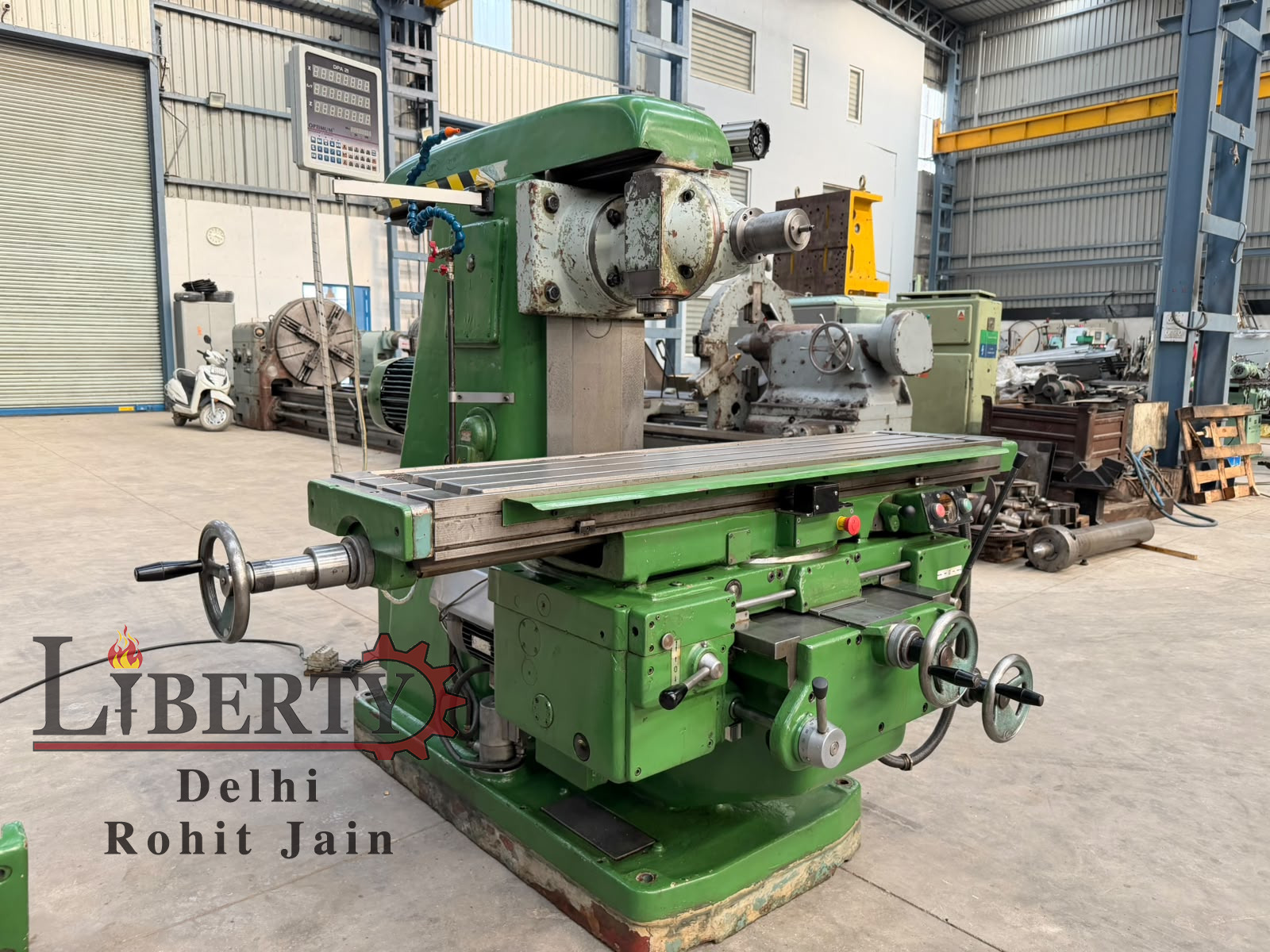

TOS Czech FA4U 1600 mm x 350 mm Universal Milling Machine

Universal Milling Machine manufactured by TOS (Czech Republic), Model FA4U, available in excellent working condition. The machine features a 1600 mm x 350 mm Table Size and is complete with two Vertical Milling Heads of different types - a Double-Swivel Universal Milling Head and a Heavy-Duty Single-Swivel Vertical Milling Head. It is also complete with an Arbour and Bracket for Horizontal Milling Operations and a 3-Axis DRO, making the machine suitable for both Vertical and Horizontal Milling Operations. The technical details are as follows -

Make - TOS (Czech Republic)

Model - FA4U

Table Size - 1600 mm x 350 mm

XYZ Travels - 1000 mm x 300 mm x 400 mm

Spindle Taper - ISO-50

Spindle Speed Range - 32 to 1400 RPM

Table Feed Rate Range - 10 to 1250 mm/min

Table Swivel Range - +45 degree to -45 degree

Spindle Motor Power - 7.5 kW

Approx. Machine Weight - 3.20 Tons

- Complete with Double-Swivel Universal Milling Head.

- Complete with a Heavy-Duty Single-Swivel Vertical Milling Head.

- Complete with Arbour and Bracket for Horizontal Milling Operations.

- Equipped with a 3-Axis DRO.

- Suitable for both Vertical and Horizontal Milling Operations.

- Machine is in excellent working condition.
