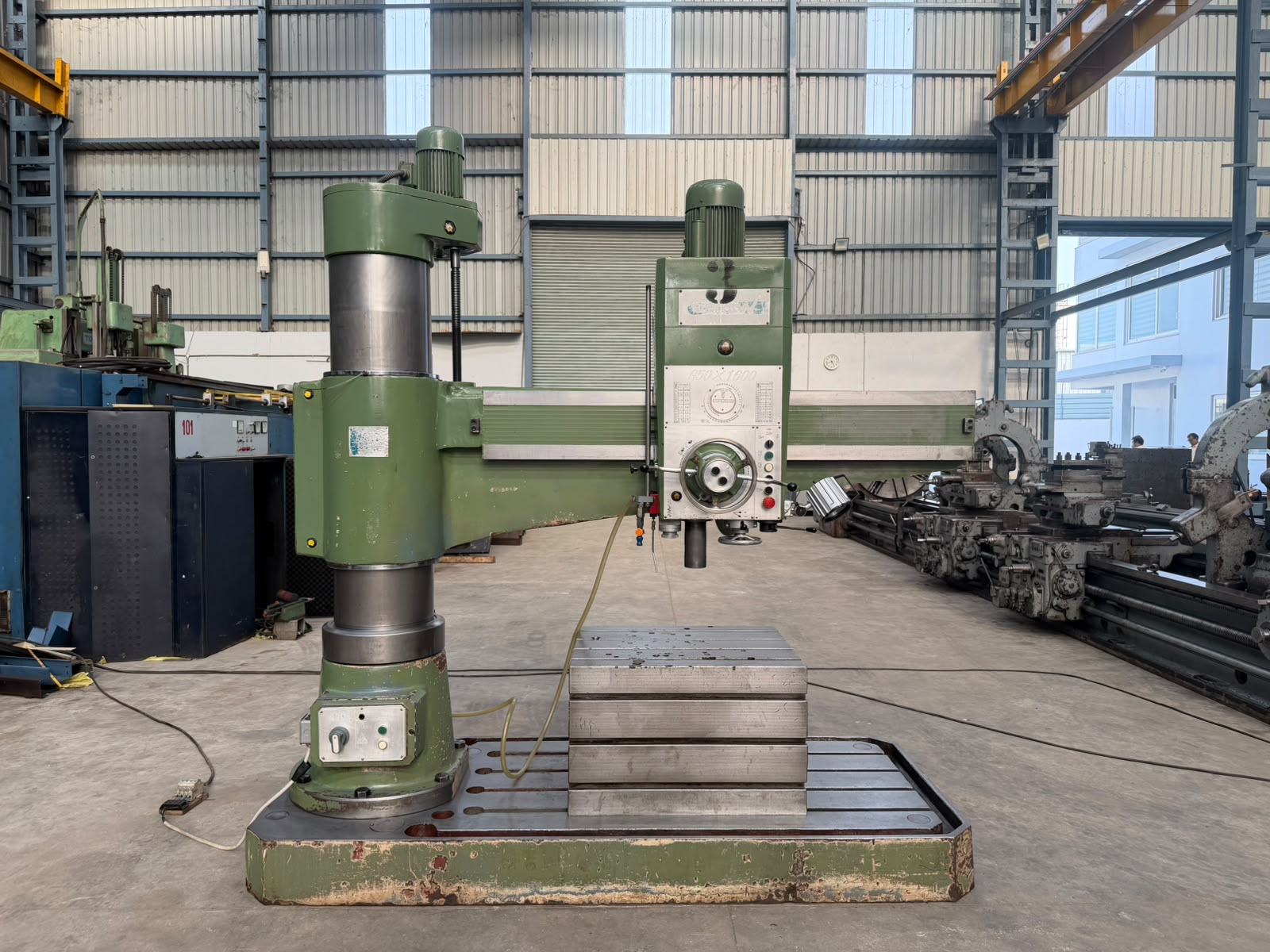

Kitchen & Walker England 60 mm Capacity Heavy-Duty Radial Drilling Machine

Heavy-Duty Radial Drilling Machine manufactured by Kitchen & Walker (England), Model G50 × 1600, available in excellent working condition. The machine has a Drilling Capacity of 60 mm and an Arm Length of 1800 mm, making it suitable for drilling, tapping, and boring applications. The machine features Hydraulic Automatic Clamping for both the Drilling Head and Radial Arm, ensuring quick positioning and rigid locking during operation. It is complete with drills, a drill chuck, multiple sleeves, quick-change holders, and various other accessories. The technical details are as follows -

Make - Kitchen & Walker (England)

Model - G50 x 1600

Drilling Capacity - 60 mm

Spindle Diameter - 80 mm

Arm Length - 1800 mm

Spindle Speed Range - 25 to 2000 RPM

Spindle Taper - MT-5

Spindle Feed Travel - 325 mm

Spindle Feed Rate Range - 0.04 to 3.20 mm/rev

Vertical Travel of Arm - 575 mm

Max. Height between Spindle and Top of Base - 1220 mm

Cube Table Size - 800 mm × 630 mm

Clamping Type - Automatic Hydraulic

Approx. Machine Weight - 4.10 Tons

- Complete with drills, drill chuck, sleeves and various other accessories.

- Machine is in excellent working condition.
