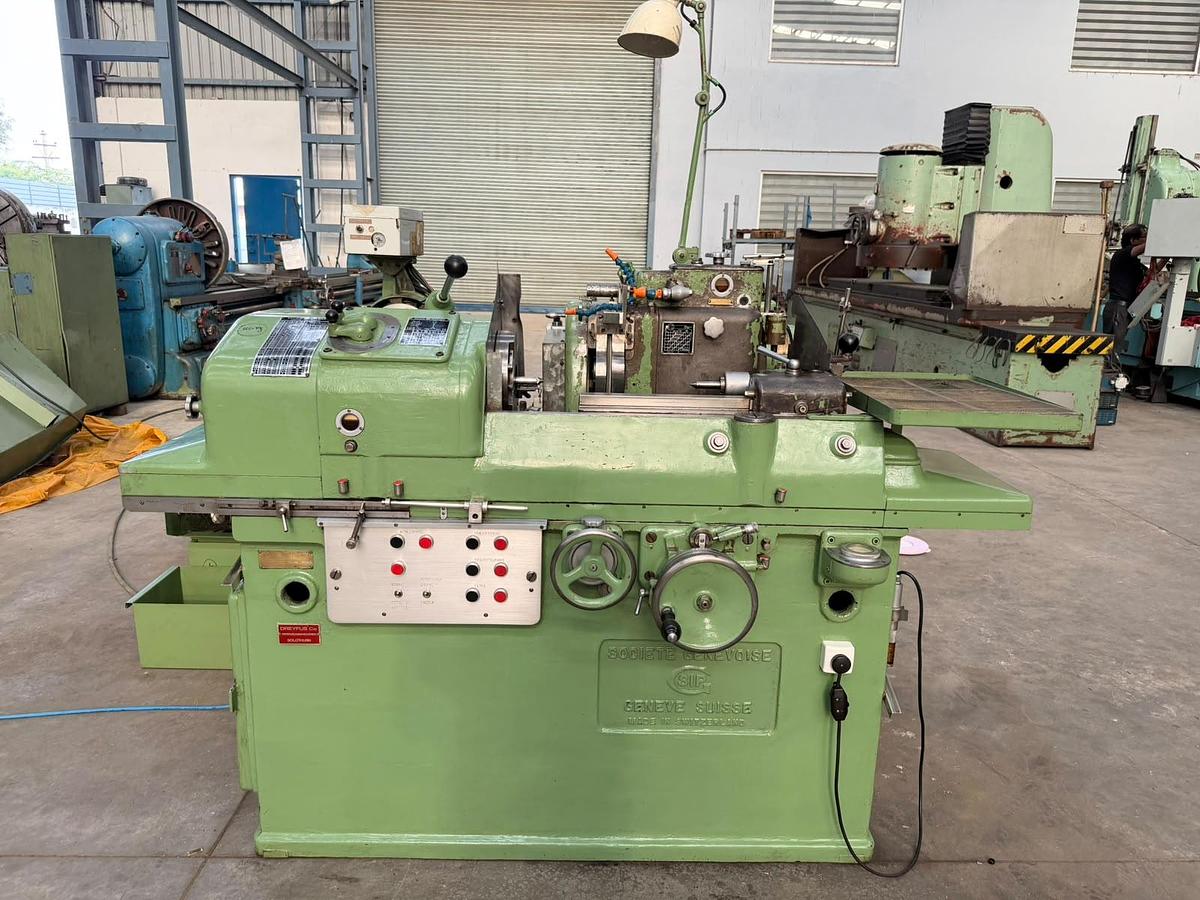

SIP Switzerland RU-2 Precision Thread Grinding Machine

Thread Grinding Machine manufactured by SIP (Switzerland), Model RU-2, available in excellent working condition. The machine has a Maximum Grinding Length of 400 mm, a Maximum Job Diameter of 150 mm over the Complete Grinding Length, and a Maximum Job Diameter of 210 mm in the Gap near the Chuck. It features Automatic Rapid Return of the Table, Motorised Crusher-Type Wheel Dresser with Automatic Forward Approach, and Provision for Relief Grinding using Cams. The machine is complete with Crusher-Type Wheel Dresser, Single-Point Wheel Dresser, Wheel Flanges, New Spare Grinding Wheels, Change Gears, Relief Grinding Cams, Coolant Filtration System, Coolant Tank, Coolant Pump, Operating Manual, Electrical Drawings, and various other accessories. The technical details are as follows -

Make - SIP (Switzerland)

Model - RU-2

Max. Grinding Length - 400 mm

Max. Job Diameter over Complete Grinding Length - 150 mm

Max. Job Diameter in Gap (near Chuck) - 210 mm

Max. Job Length in Gap - 90 mm

Max. Distance between Centres - 400 mm

Pitch Range - 0.5 mm to 12 mm

Grinding Wheel Size - 250 mm Diameter × 10 mm Width

Wheel-Head Inclination - +15 degree to -15 degree

Work-Head Rotation Speed Range - 0.6 to 12 RPM

Face Plate Diameter - 220 mm

Least Count of Wheel-Head Travel - 2 Microns (0.002 mm)

No. of Flutes for Relief Grinding - 2 to 8 Flutes

- Complete with Single-Point Type Wheel Dresser.

- Complete with Motorised Crusher-Type Wheel Dresser with Automatic Forward Approach.

- Features Automatic Rapid Return of the Table.

- Features Relief Grinding using Cams.

- Complete with Spare Wheel Flanges, New Grinding Wheels, and Change Gears.

- Complete with Spare Centres, Dressers, Attachments, and various other accessories.

- Complete with Coolant Filtration Unit, Coolant Tank, and Coolant Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.
