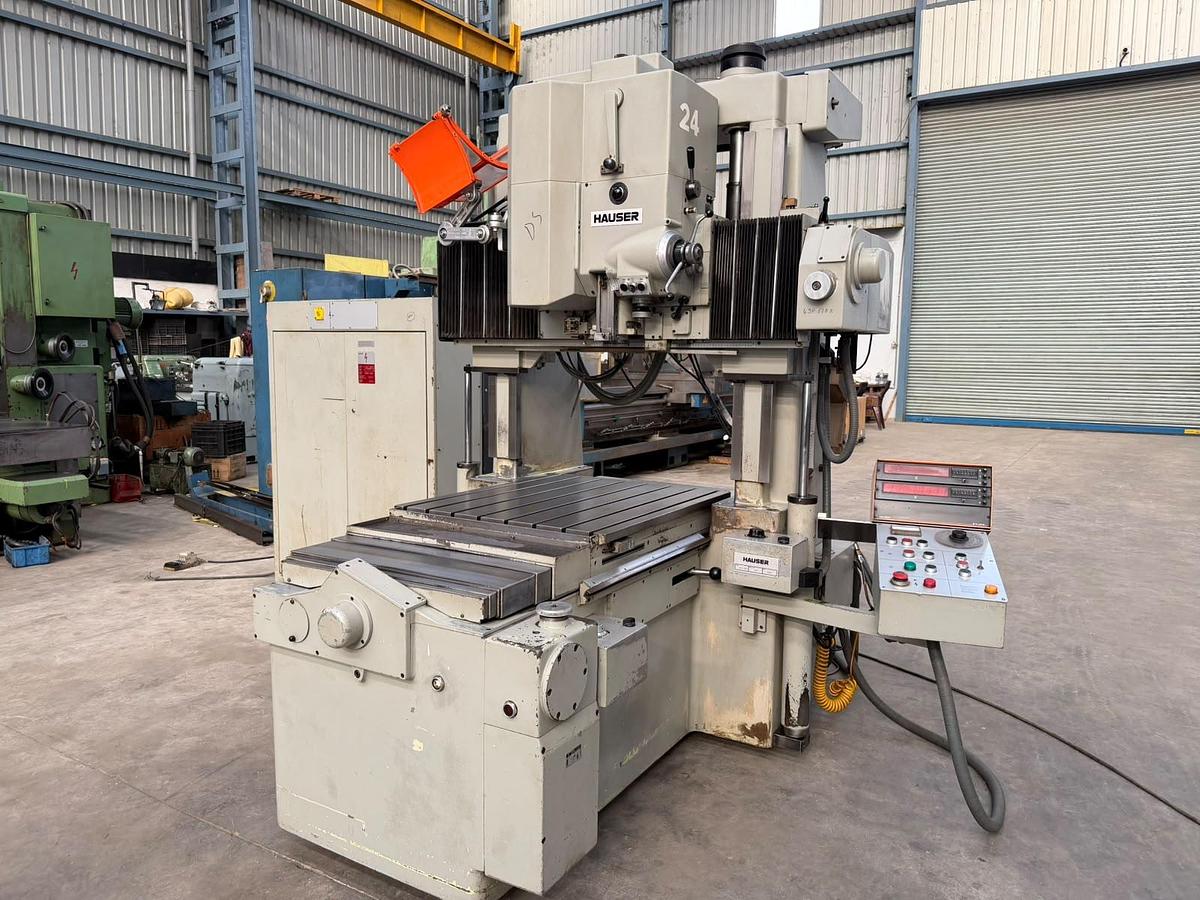

Hauser Switzerland M5-DR High-Precision Jig Boring Machine

High-Precision Jig Boring Machine manufactured by Hauser (Switzerland), Model M5-DR, available in excellent working condition. The machine is complete with a 2-Axis DRO, Multiple Micro-Boring Heads, and a comprehensive range of Tools, Drills, Reamers, Taps, and various other accessories. Hauser Jig Boring Machines are renowned for their high precision and accuracy, making this machine suitable for Tool Room, Die & Mould, Precision Hole Location, Coordinate Drilling, and Boring Applications. The technical details are as follows -

Make - Hauser (Switzerland)

Model - M5-DR

Table Size - 900 mm x 770 mm

Longitudinal Travel - 700 mm

Transversal Travel - 500 mm

Distance Between Columns - 900 mm

Max. Height between Spindle & Table - 800 mm

Spindle Feed Travel - 170 mm

Spindle Speed Range - 10 to 2000 RPM

Spindle Taper - Morse No. 4

Spindle Feed Rate - 0.02 to 0.20 mm/rev

Spindle Diameter - 90 mm

- Equipped with 2-Axis DRO.

- Complete with Multiple Micro-Boring Heads.

- Complete with Numerous Tools, Drills, Reamers, Taps, and various other accessories.

- Machine is in excellent working condition.
