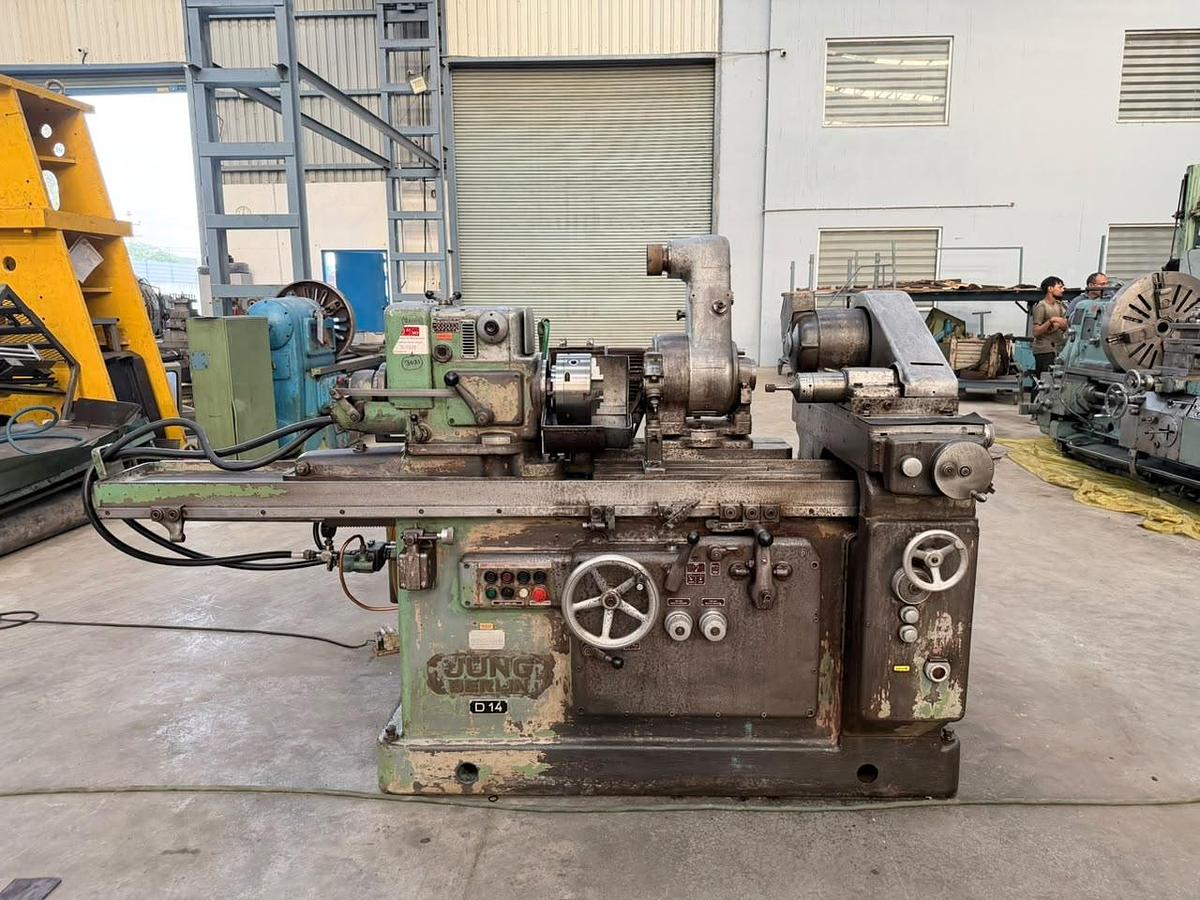

Jung Germany D14 Internal & Face Grinding Machine

Internal & Face Grinding Machine manufactured by Jung (Germany), Model D14, available in excellent working condition. The machine has a Maximum Job Swing Diameter of 425 mm, an Internal Grinding Diameter Range of 8 mm to 150 mm, and a Maximum Internal Grinding Depth of 150 mm. The machine is equipped with an Automatic Hydraulic Wheel Dresser and is complete with Face Grinding Attachment. It features Automatic Depth Adjustment (Auto-Cut), Automatic Return to Initial Position after Completion of the Grinding Cycle, Provision for Hydraulic Clamping and Unclamping of the Job, and Workhead Swivelling for Taper Grinding Applications. The technical details are as follows -

Make - Jung (Germany)

Model - D14

Max. Job Swing Diameter - 425 mm

Internal Grinding Diameter Range - 8 mm to 150 mm

Max. Internal Grinding Depth - 150 mm

Max. Job Swing Diameter inside Cover - 290 mm

Max. Distance between Chuck & Spindle Support - 675 mm

Rotation of Workhead - 0 degree to 30 degree

Least Count - 2 Microns (0.002 mm)

Internal Grinding Spindle Diameter - 85 mm

Chuck Diameter - 200 mm

Internal Grinding Spindle Rotation Speed - 10,750 RPM Approximately

Workhead Rotation Speed Range - 96 to 568 RPM

Approx. Weight of the Machine - 2.70 Tons

- Equipped with Automatic Hydraulic Wheel Dresser.

- Equipped with Face Grinding Attachment.

- Features Automatic Depth Adjustment (Auto-Cut).

- Features Hydraulic Clamping and Unclamping Arrangement for the Job.

- Complete with Spare Internal Grinding Wheels and Operating Manual.

- Machine is in excellent working condition.
