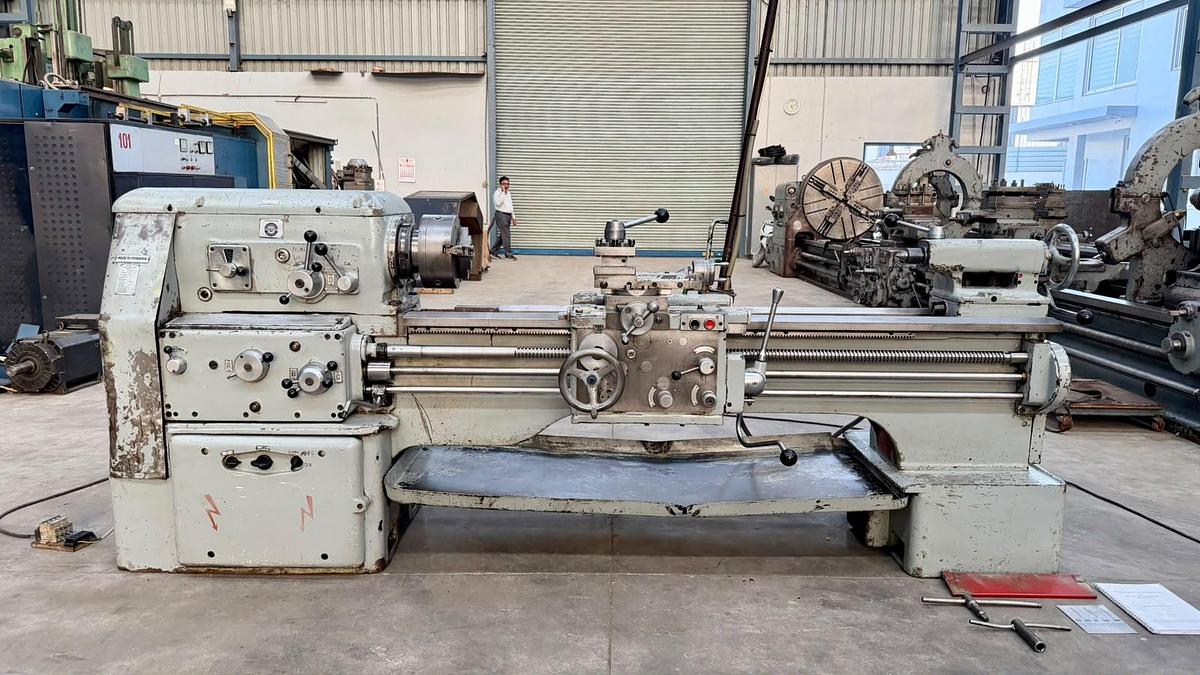

MICM-Arad Romania SN400/1500 Heavy-Duty Lathe Machine

Heavy-Duty Gap-Bed Lathe Machine manufactured by MICM-Arad (Romania), Model SN-400, available in excellent working condition. The machine features an extraordinary Threading Pitch Range from 0.375 mm up to 352 mm, making it particularly suitable for machining a very wide range of threads, including very coarse and large-pitch threads that require exceptionally high threading capability. The machine features a Centre Height of 210 mm, Maximum Job Length of 1500 mm, and 355 mm wide bed. It is also complete with its Operating Manual and Electrical Drawings. The technical details are as follows -

Make - MICM-Arad (Romania)

Model - SN-400

Centre Height - 210 mm

Max. Job Length - 1500 mm

Max. Job Diameter over Cross-Slide - 210 mm

Max. Job Diameter over Bed - 420 mm

Max. Job Diameter in Gap - 650 mm

Spindle Speed Range - 12 to 1500 RPM

Threading Pitch Range - 0.375 mm to 352 mm

Bed Width - 355 mm

Chuck Diameter - 250 mm

Spindle Bore - 48 mm

Approx. Machine Weight - 2.33 Tons

- Features an exceptionally wide Threading Pitch Range of 0.375 mm to 352 mm.

- Particularly suitable for very coarse / large-pitch threading applications.

- Complete with Operating Manual and Electrical Drawings.

- Machine is in excellent working condition.
