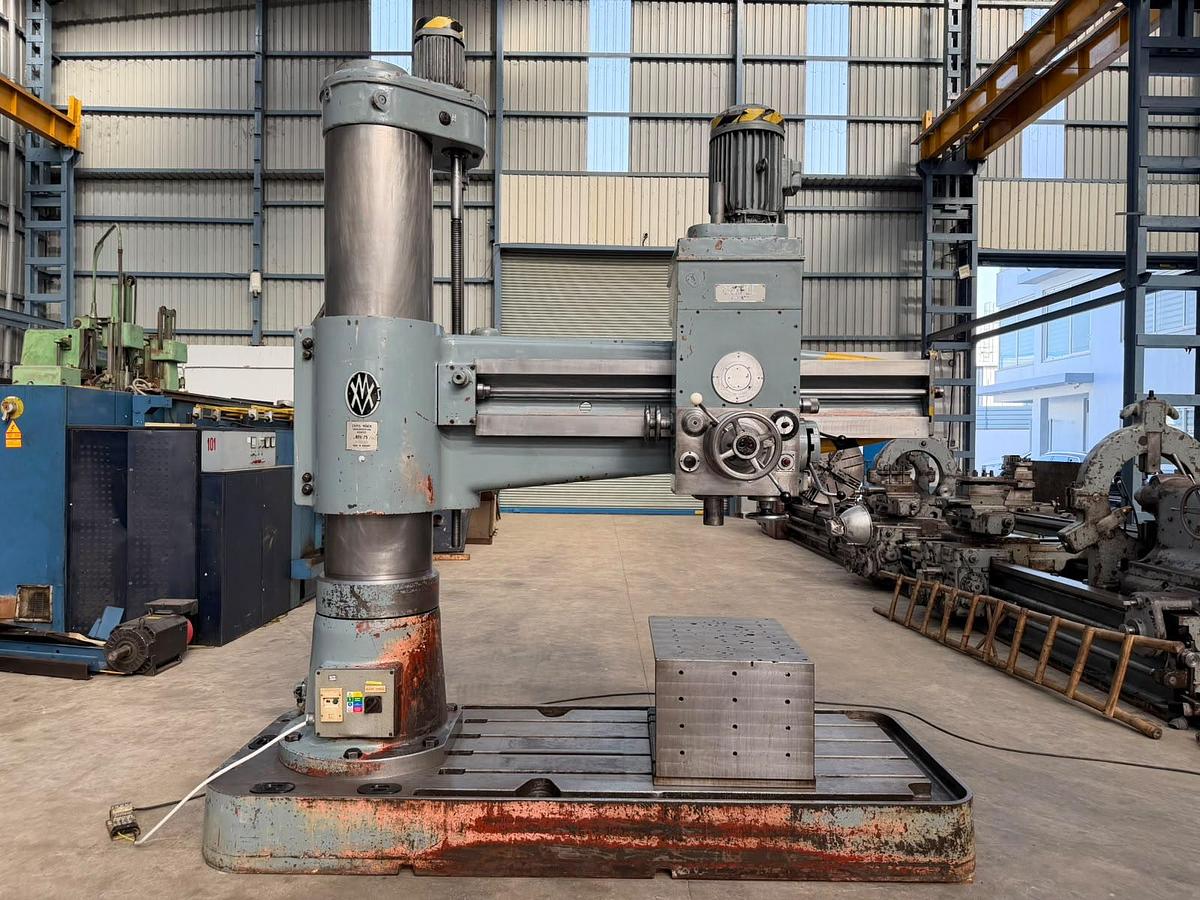

CSEPEL Hungary RFh-75 / 1750 Heavy-Duty Radial Drilling Machine

Heavy-Duty Radial Drilling Machine manufactured by Csepel (Hungary), Model RFh-75, available in excellent working condition. The machine has a Drilling Capacity of 75 mm and an Arm Length of 1925 mm, making it suitable for heavy-duty drilling, tapping, and boring applications. It features Hydraulic Automatic Clamping for both the Drilling Head and Radial Arm, allowing quick positioning and secure clamping during operation. The machine is equipped with an 11 kW Spindle Motor and a Spindle Speed Range of 19 to 1900 RPM. The technical details are as follows -

Make - Csepel (Hungary)

Model - RFh-75 / 1750

Drilling Capacity - 75 mm

Spindle Diameter - 95 mm

Arm Length - 1925 mm

Spindle Speed Range - 19 to 1900 RPM

Spindle Taper - MT-5

Spindle Feed Travel - 375 mm

Spindle Feed Rate Range - 0.047 to 2.00 mm/rev

Vertical Travel of Arm - 1000 mm

Max. Height between Spindle and Top of Base - 1675 mm

Cube Table Size - 800 mm × 600 mm

Spindle Motor Power - 11 kW

Clamping Type - Automatic Hydraulic

Approx. Machine Weight - 6.90 Tons

- Machine is in excellent working condition.
