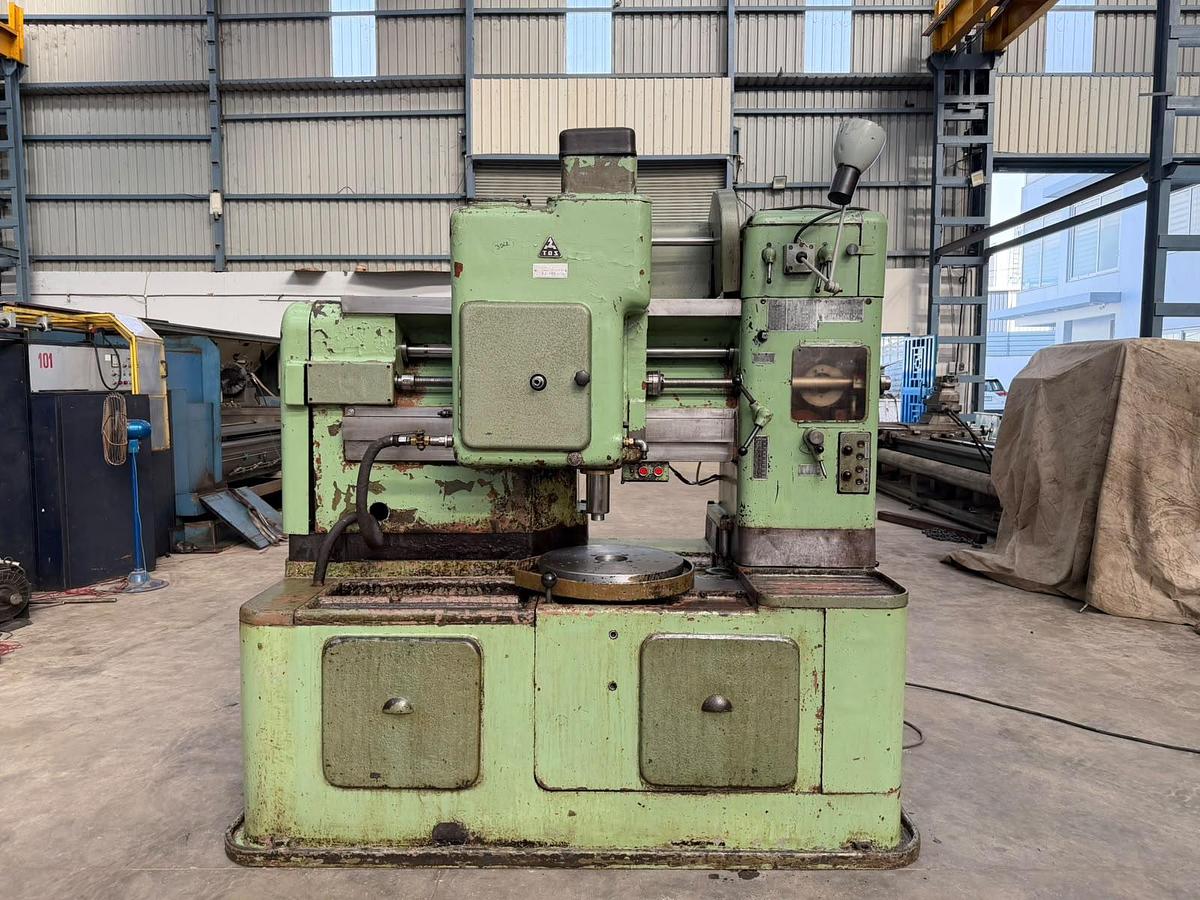

TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment

Gear Shaper Machine manufactured by TOS (Czech Republic), Model OH-6, available in excellent working condition. The machine has a Maximum Module Capacity of 6 Modules, Maximum Gear Diameter of 500 mm, and Maximum Stroke Length of 110 mm. It is complete with a Rack Cutting Attachment and a 100 mm Packing Block, which increases the available height between the table and spindle body to accommodate taller workpieces. The machine also features Motorised Rapid Rotation of the Cutter Spindle and Work Spindle, allowing quick angular positioning of the cutter and workpiece. It is suitable for both External and Internal Gear Cutting and is complete with Change Gears, Spare Cams, Operating Manual, Electrical Drawings, and various other accessories. The technical details are as follows -

Make - TOS (Czech Republic)

Model - OH-6

Max. Module Capacity - 6 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 110 mm

Stroke Rate Range - 50 to 315 Strokes/Minute

Height between Table and Spindle Body - 325 mm

Spindle Diameter - 78 mm

Diameter of Installed Table - 480 mm

- Equipped with a 100 mm Packing Block.

- Complete with a Rack Cutting Attachment.

- Features Motorised Rapid Rotation of the Cutter Spindle and Work Spindle for quick angular positioning.

- Suitable for External and Internal Gear Cutting.

- Complete with Change Gears, Spare Cams, and various other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.
