Ghiringhelli Italy Centerless Grinding Machine
Ghiringhelli Italy Centerless Grinding Machine
Contact us for price
Location:New Delhi, India
Description

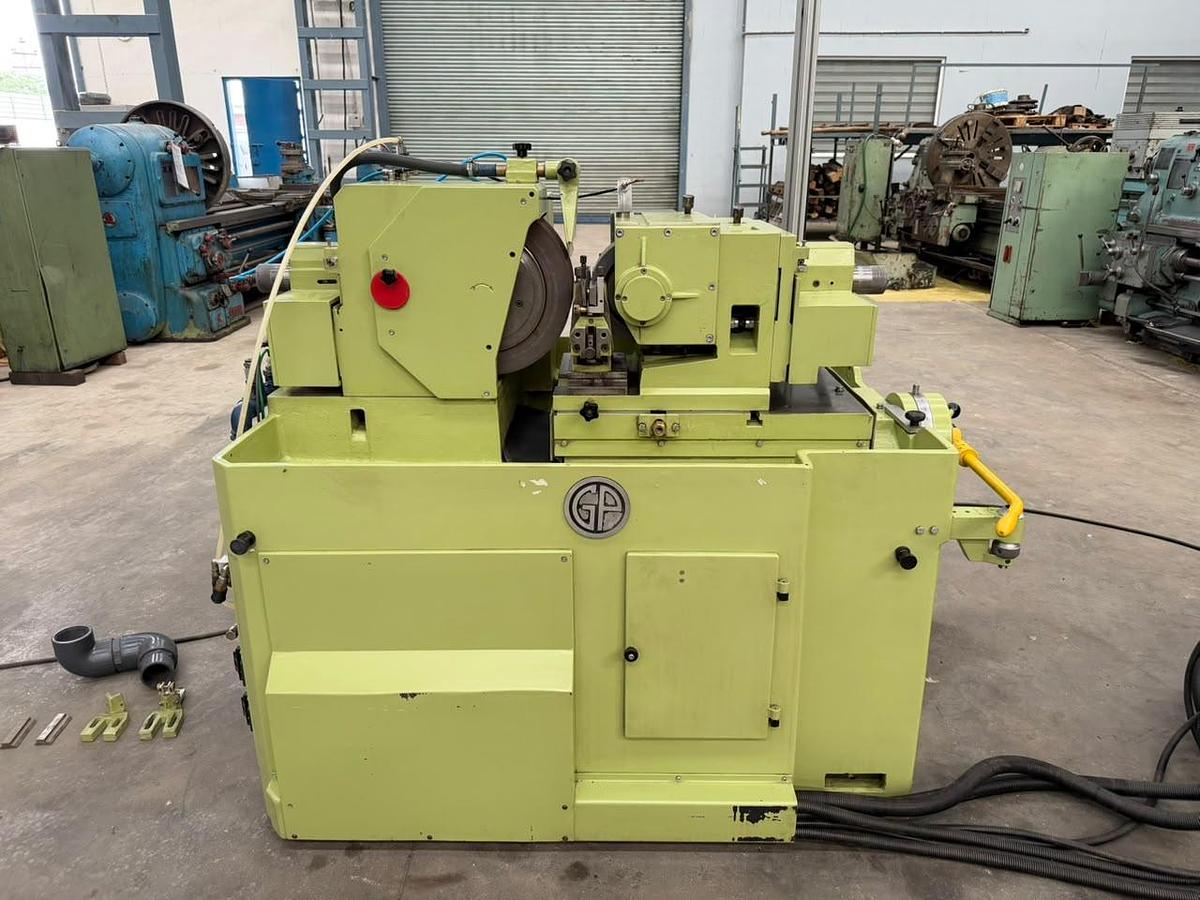

Centerless Grinding Machine manufactured by Ghiringhelli (Italy), available in excellent working condition. The machine offers a Job Diameter Capacity of 3 mm to 85 mm and is suitable for In-Feed, Through-Feed, and Taper Grinding Applications. It is equipped with Hydraulic Wheel Dressers for both the Grinding Wheel and Control Wheel. The machine features an adjustable Control Wheel that can be tilted for Through-Feed Grinding and rotated for Taper Grinding. The technical details are as follows:
Make – Ghiringhelli (Italy)
Job Diameter Capacity – 3 mm to 85 mm
Grinding Wheel Diameter – 350 mm
Grinding Wheel Width – 120 mm
Control Wheel Diameter – 225 mm
Control Wheel Width – 120 mm
- Suitable for In-Feed, Through-Feed, and Taper Grinding.
- Control Wheel can be tilted for Through-Feed Grinding.
- Control Wheel can be rotated for Taper Grinding.
- Equipped with Hydraulic Wheel Dressers for both Grinding and Control Wheels.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Ghiringhelli |
| Model | M120 |
| Condition | Used |
| Stock Number | 3072 |
| Make | Ghiringhelli (Italy) |
| Job Diameter Capacity | 3 mm to 85 mm |
| Grinding Wheel Diameter | 350 mm |
| Grinding Wheel Width | 120 mm |
| Control Wheel Diameter | 225 mm |
| Control Wheel Width | 120 mm |
| Other Information 1 | - Suitable for In-Feed, Through-Feed, and Taper Grinding. |
| Other Information 2 | - Control Wheel can be tilted for Through-Feed Grinding. |
| Other Information 3 | - Control Wheel can be rotated for Taper Grinding. |
| Other Information 4 | - Equipped with Hydraulic Wheel Dressers for both Grinding and Control Wheels. |
| Other Information 5 | - Machine is in excellent working condition. |
