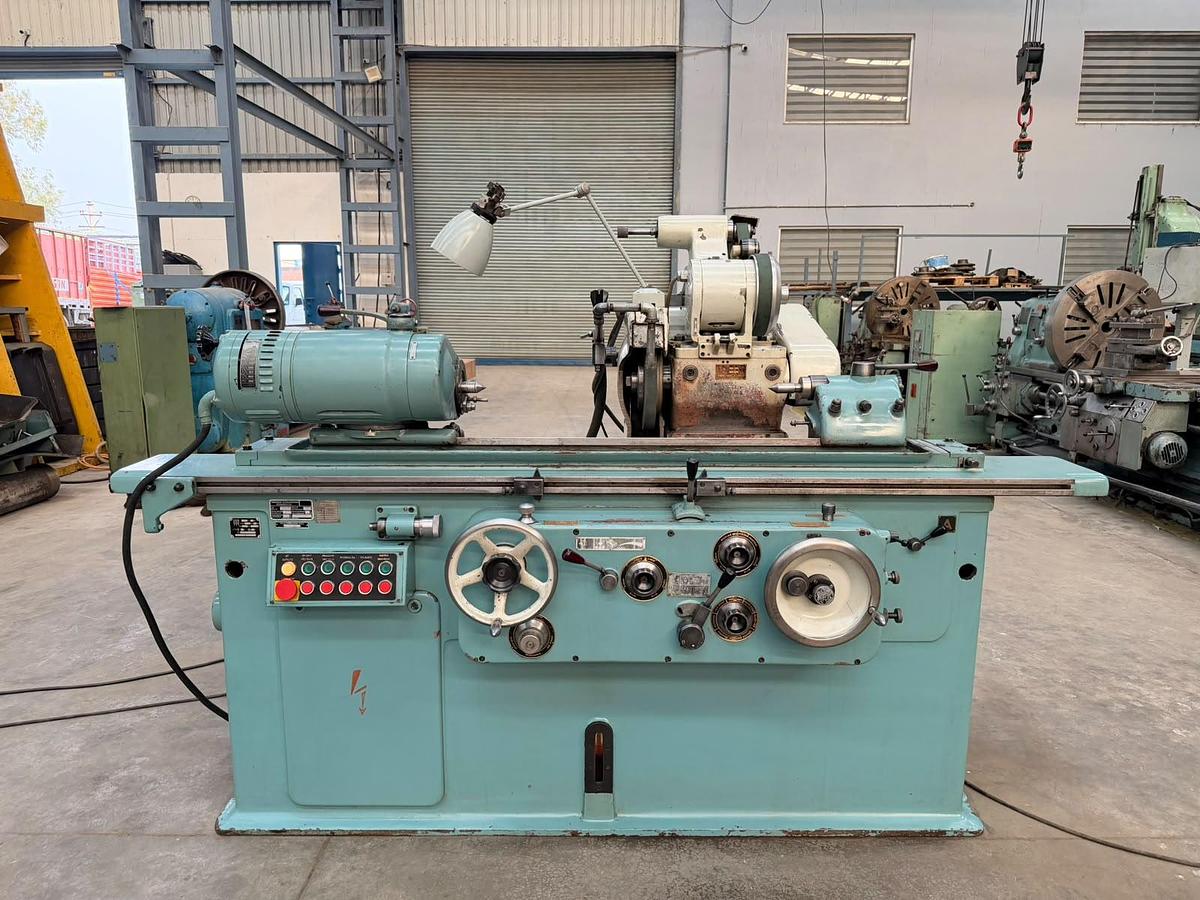

MSZ Hungary KU 250/750 Universal Cylindrical Grinder

Universal Cylindrical Grinding Machine manufactured by MSZ (Hungary), Model KU 250/750, available in excellent working condition. The machine offers a Maximum Grinding Capacity of 250 mm Diameter × 750 mm Job Length and is suitable for both External and Internal Grinding Operations. The machine features Automatic Depth Adjustment (Auto-Cut), Automatic Plunge Grinding, Automatic Wheel Compensation, and a Table Delay (Dwell) Feature, making it suitable for high-production automatic grinding operations. It is also equipped with Microfeed Adjustments on both Table and Wheelhead Travels for precise positioning. The machine is complete with an Internal Grinding Attachment, Wheel Dresser, Job Steady, Wheel Flange, Coolant Tank, Coolant Pump, and various other accessories. The technical details are as follows -

Make - MSZ (Hungary)

Model - KU 250/750

Centre Height - 130 mm

Max. Job Length - 750 mm

Max. Job Diameter - 250 mm

Grinding Wheel Size - Diameter 350 mm x 50 mm Width

Workhead Speed Range - 80 to 500 RPM

Table Swivel Angle - 5 Degree to -5 Degree

- Equipped with Internal Grinding Attachment.

- Features Automatic Depth Adjustment (Auto-Cut), Automatic Wheel Compensation, Automatic Plunge Grinding, and Table Delay (Dwell) Feature.

- Microfeed Adjustments on both Table and Wheelhead Travels.

- Complete with Wheel Dresser, Job Steady, Wheel Flange, Coolant Tank, Coolant Pump, and other accessories.

- Machine is in excellent working condition.
