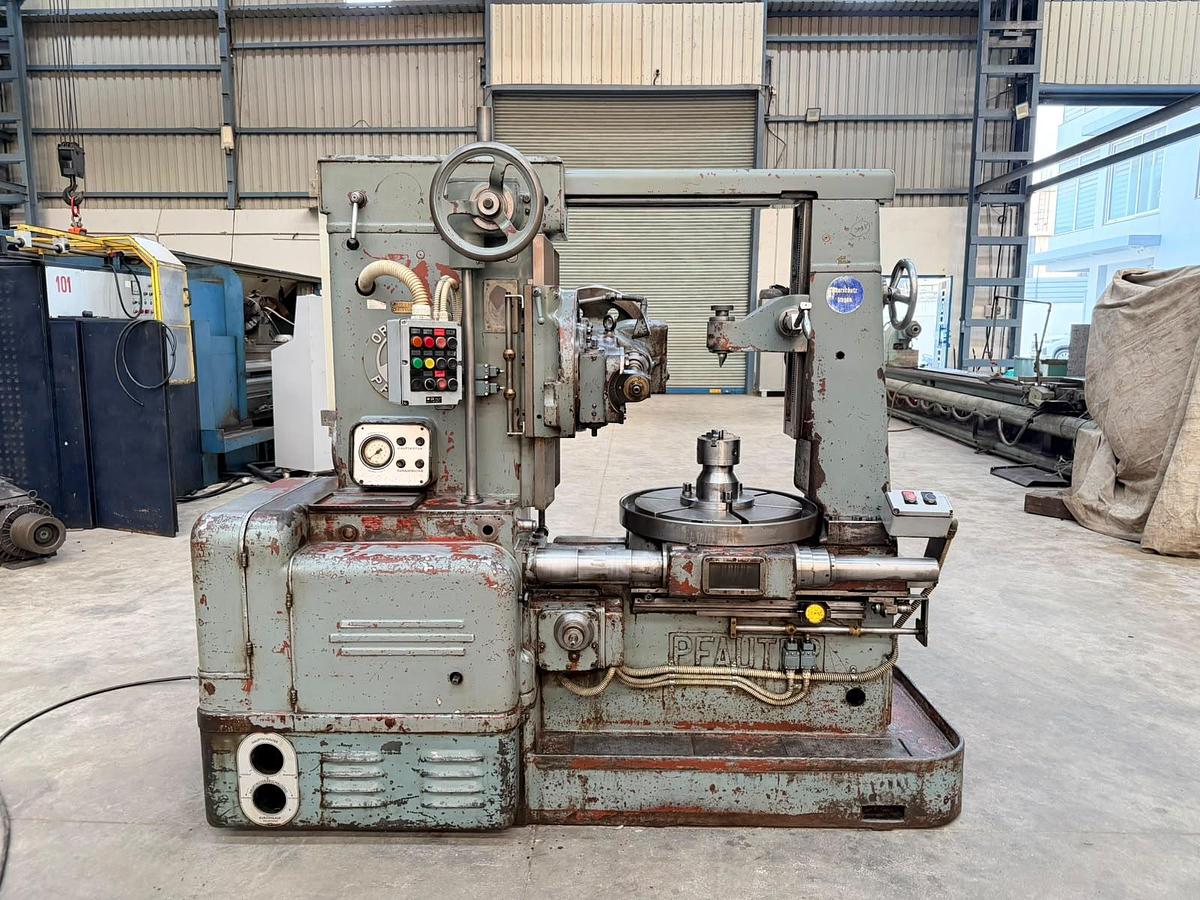

Pfauter Germany RS1 Gear Hobbing Machine

Gear Hobbing Machine manufactured by Pfauter (Germany), Model RS1, available in excellent working condition. The machine has a Maximum Module Capacity of 6 Modules and can accommodate gear diameters up to 400 mm with Tailstock. It is equipped with a PLC and features Automatic Cycle Operation for high-production gear manufacturing. The machine is suitable for hobbing Spur Gears, Helical Gears, and Worm Wheels. It is complete with Change Gears, Arbors, Mandrels, Operating Manual, and various other accessories. The technical details are as follows -

Make – Pfauter (Germany)

Model – RS1

Maximum Module Capacity – 6 Modules

Maximum Gear Diameter (with Tailstock) – 400 mm

Maximum Gear Diameter (without Tailstock) – 550 mm / 750 mm*

Table Diameter – 500 mm

Vertical Travel of Hob Slide – 295 mm

Hob Cutter Speed Range – 45 to 180 RPM

Maximum Hob Cutter Size – 125 mm Diameter × 157 mm Length

Maximum Hob Shifting – 50 mm

Approximate Machine Weight – 3.24 Tons

- Automatic Cycle Operation for high-production applications.

- Complete with Change Gears, Arbors, Mandrels, and various other accessories.

- Operating Manual available.

- Machine is in excellent working condition.
