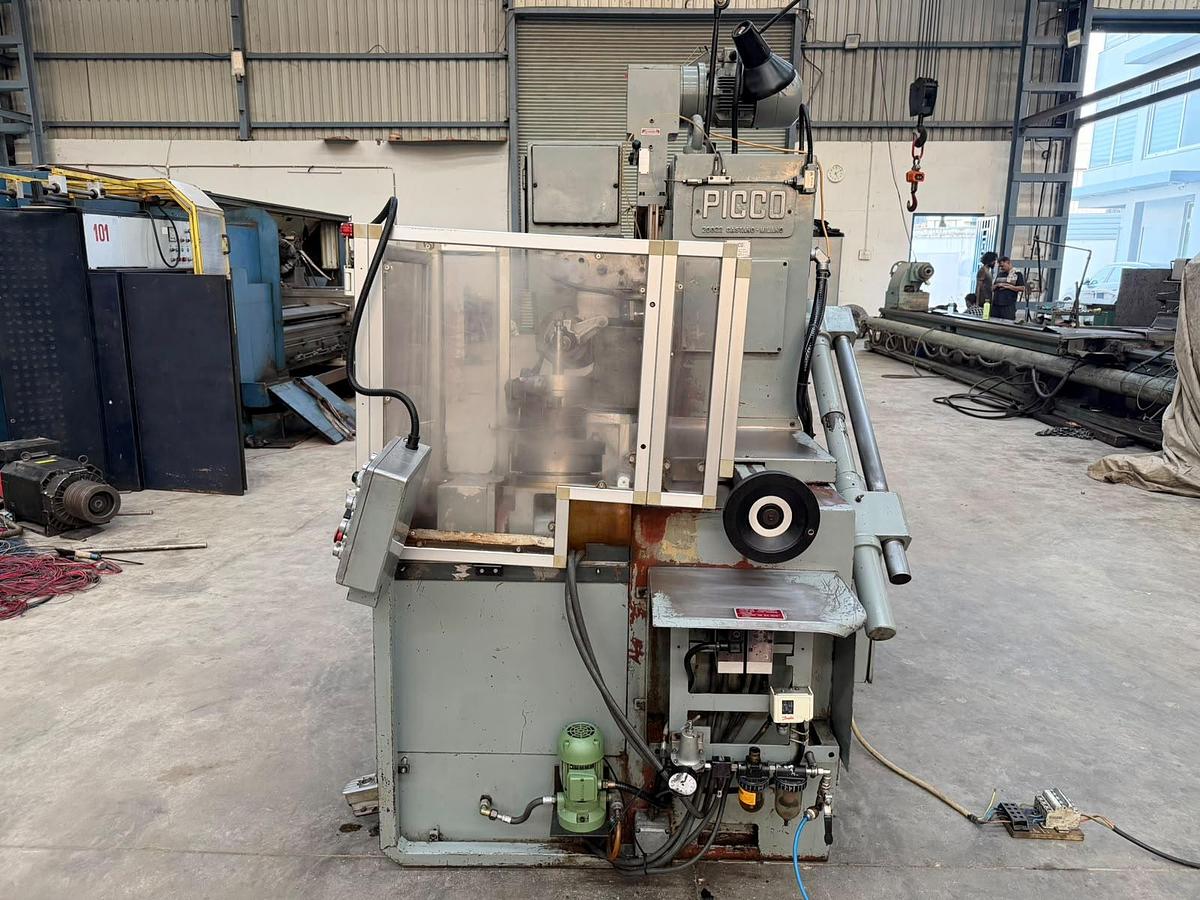

Picco Italy K15 Automatic Gear Tooth Rounding Machine

Automatic Gear Tooth Rounding Machine manufactured by PICCO (Italy), Model K15, available in excellent working condition. The machine has a maximum module capacity of 15 Modules and can accommodate gear diameters up to 600 mm, making it suitable for a wide range of gear tooth rounding applications. The machine features fully automatic cycle operation with automatic depth adjustment, automatic forward and backward travel of the cutter spindle, automatic compensation, and pneumatic job clamping system making it suitable for high-production operations. The machine is complete with change gears and various other accessories. The technical details are as follows -

Make - PICCO (Italy)

Model - K15

Maximum Module Capacity - 15 Modules

Maximum Gear Diameter - 600 mm

Spindle Speeds - 1450 / 2100 / 2800 RPM

Teeth Production Rate - 35 / 50 / 75 teeth per minute

Table Tilting Angle - +25 degrees to -25 degrees

- Fully automatic cycle operation (Auto-Cycle).

- Automatic depth adjustment & auto-compensation.

- Automatic forward and backward travel of the cutter spindle.

- Automatic pneumatic job clamping.

- Complete with change gears and various other accessories.

- Machine is in excellent working condition.
