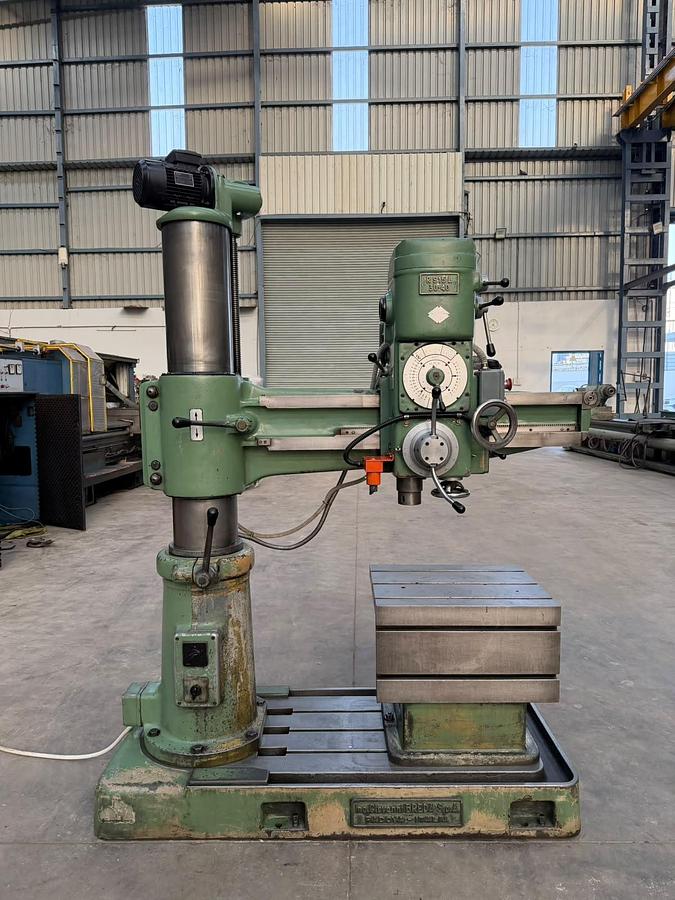

Breda Italy 40 mm x 1050 mm Radial Drilling Machine

Radial Drilling Machine manufactured by Breda (Italy), Model R915L, available in excellent working condition. The machine has a Maximum Drilling Capacity of 40 mm, Arm Length of 1050 mm, and Spindle Speed Range of 40 to 1350 RPM, making it suitable for variety of drilling, tapping, and boring applications. The technical details are as follows -

Make - Breda (Italy)

Model - R915L

Maximum Drilling Capacity - 40 mm

Spindle Diameter - 60 mm

Arm Length - 1050 mm

Spindle Speed Range - 40 to 1350 RPM

Spindle Taper - MT-4

Spindle Feed Travel - 175 mm

Spindle Feed Rate Range - 0.10 to 0.30 mm/rev

Vertical Travel of Arm - 575 mm

Max. Height between Spindle and Top of Base - 1225 mm

Cube Table Size - 550 mm × 455 mm

Clamping Type - Manual

Approx. Machine Weight - 1.37 Tons

- Machine is in excellent working condition.
