Fellows USA Type 75A Gear Shaping Machine
Fellows USA Type 75A Gear Shaping Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description

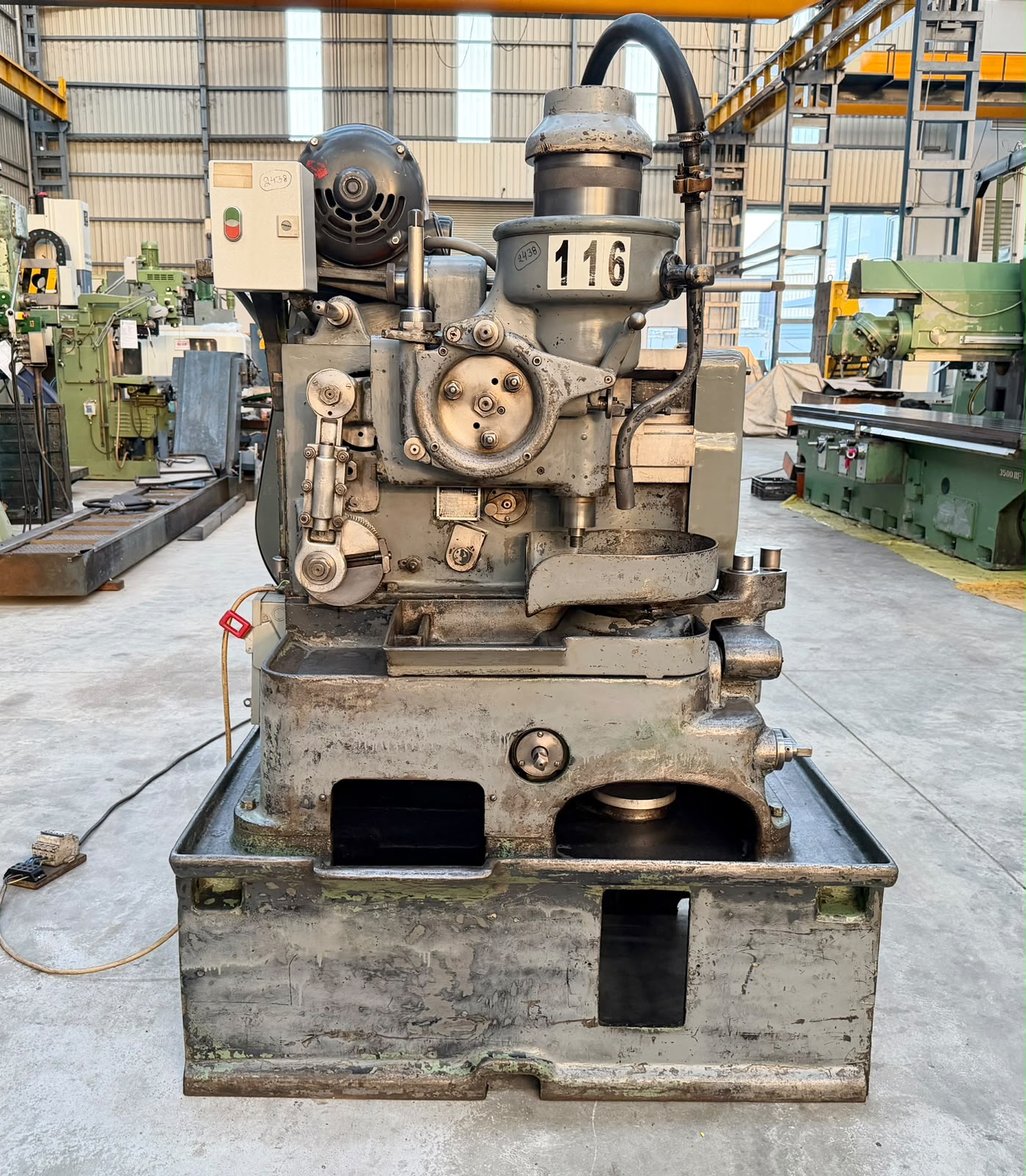

Gear Shaping Machine manufactured by Fellows (USA), Model Type 75A, available in excellent working condition. The machine has a maximum module capacity of 4 Modules and a maximum gear diameter of 180 mm. It is complete with change gears, and its operating manual and electrical drawings. The technical details are as follows -
Make - Fellows (USA)
Model - Type 75A
Max. Module Capacity - 4 Modules
Max. Gear Diameter - 180 mm
Max. Gear Face Width - 50 mm
Max. Swing Diameter of Job - 240 mm
Height between Table Top and Machine Body - 140 mm
Spindle Diameter - 69.85 mm
Spindle Type - Solid
- Machine is complete with Change Gears.
- Operating Manual & Electrical Drawing are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Fellows (USA) |
| Model | Type 75A |
| Condition | Used |
| Stock Number | 2438 |
| Make | Fellows (USA) |
| Model | Type 75A |
| Max. Module Capacity | 4 Modules |
| Max. Gear Diameter | 180 mm |
| Max. Gear Face Width | 50 mm |
| Max. Swing Diameter of Job | 240 mm |
| Height between Table Top and Machine Body | 140 mm |
| Spindle Diameter | 69.85 mm |
| Spindle Type | Solid |
| Other Information 1 | - Machine is complete with Change Gears. |
| Other Information 2 | - Operating Manual & Electrical Drawing are available. |
| Other Information 3 | - Machine is in excellent working condition. |
