Double Spindle type Universal Milling Machine
Double Spindle type Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description

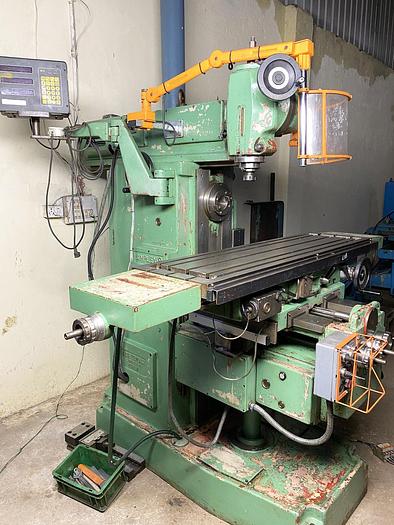

De Tomasi (Italy) make Double-Spindle Universal Milling Machine in excellent working condition. The model of the machine is Simplex-8 and it has separate Horizontal & Vertical Milling Spindles. The technical details are as follows -
Make - De Tomasi (Italy)
Model - Simplex-8
Table Size - 1300 mm x 355 mm
XYZ Travel - 900 mm x 300 mm x 475 mm
Horizontal Spindle Taper - ISO 50
Horizontal Spindle Speeds - 31 rpm to 1430 rpm
Vertical Spindle Taper - ISO 40
Vertical Spindle Speeds - 38 rpm to 1500 rpm
Table Feed Rates - 9 mm/min to 390 mm/min
Vertical Spindle Travel - 85 mm
- Forward/Back Overarm Movement of the Vertical Milling Head.
- Double Swivel type Vertical Milling Head.
- Rotating type Universal Table.
- Equipped with 3-Axis DRO.
- With Accessories like Arbour, Vice, Tool-Holder etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | De Tomasi |
| Model | Simplex-8 |
| Condition | Used |
| Table Size | 1300 mm x 355 mm |
| XYZ Travel | 900 mm x 300 mm x 475 mm |
| Horizontal Spindle Taper | ISO 50 |
| Horizontal Spindle Speeds | 31 rpm to 1430 rpm |
| Vertical Spindle Taper | ISO 40 |
| Vertical Spindle Speeds | 38 rpm to 1500 rpm |
| Table Feed Rates | 9 mm/min to 390 mm/min |
| Vertical Spindle Travel | 85 mm |
| Other Information 1 | Forward/Back Overarm Movement of the Vertical Milling Head. |
| Other Information 2 | Double Swivel type Vertical Milling Head. |
| Other Information 3 | Rotating type Universal Table. |
| Other Information 4 | Equipped with 3-Axis DRO. |
| Other Information 5 | With Accessories like Arbour, Vice, Tool-Holder etc. |
| Other Information 6 | Machine is in excellent working condition. |
